JGBS18DEN7BB CONTROL PANEL & COOKTOP

JGBS18DEN7BB CONTROL PANEL & COOKTOP

Written by

in

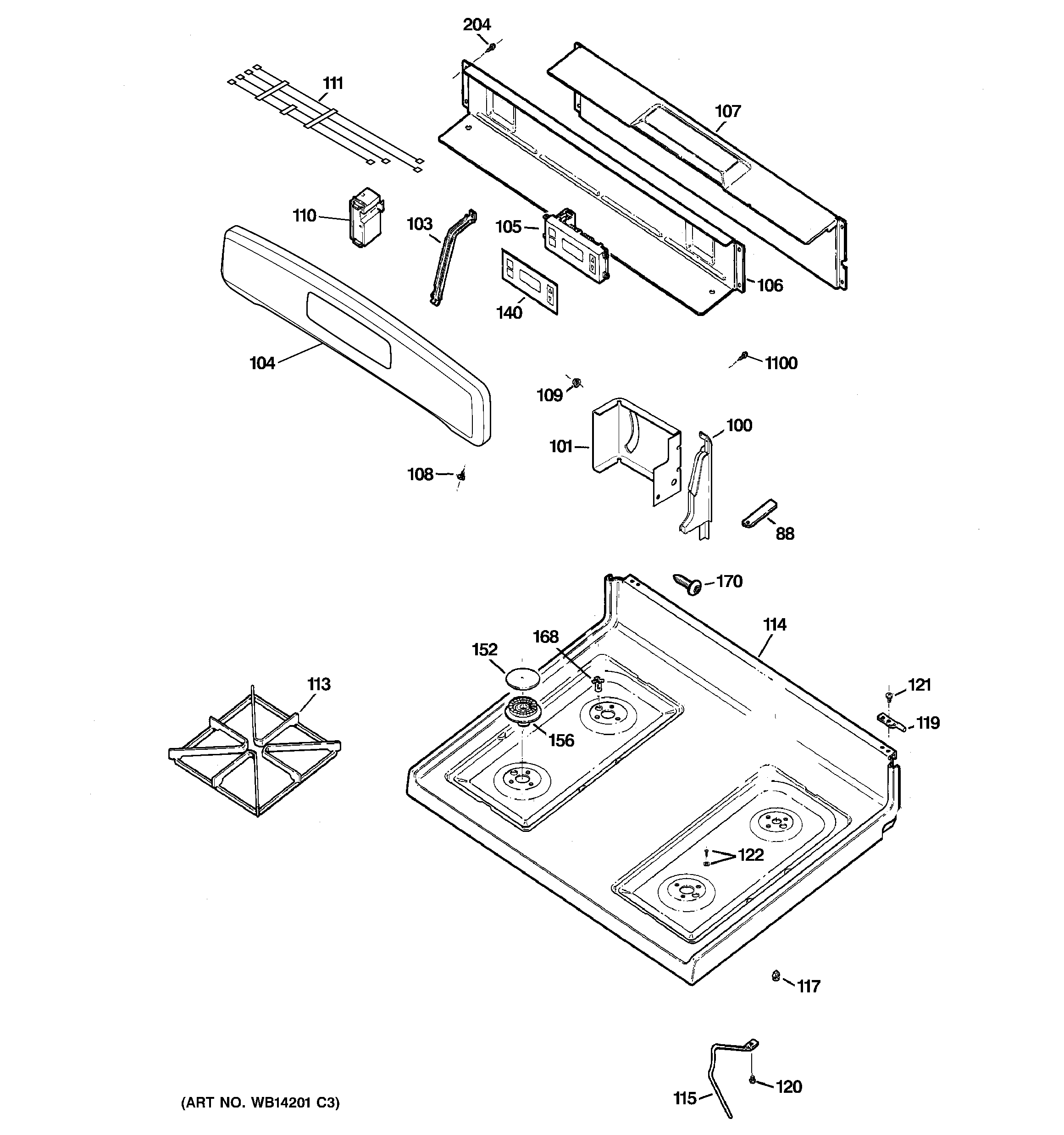

JGBS18DEN7BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10266
100GEN WB07K10265
100GEN WB07K10270
100GEN WB07K10260
100GEN WB07K10261
100GEN WB07K10271
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10651
104GEN WB36K10653
104GEN WB36K10672
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113GEN WB31K10221
113GEN WB31K10061
113WB31K10033 GE Oven Burner Grate
114GEN WB62K10158
114GEN WB62K10157
114RANGE TOP S.B.
115WB02K10276 GE Cooktop Support
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
140WB27K10256 GE Oven Overlay T09
140WB27K10255 GE Oven Overlay T09
140GEN WB27K10266
152CAP-BURNER MED TAUPE
152WB29K10001 GE Oven Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
170GEN WB01X5716
170WB1X5364 GE Oven Mounting Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
1100WB01T10016 GE Oven Screw 8-18 AB Hex
