JGBS18DEN7CC GAS & BURNER PARTS

JGBS18DEN7CC GAS & BURNER PARTS

Written by

in

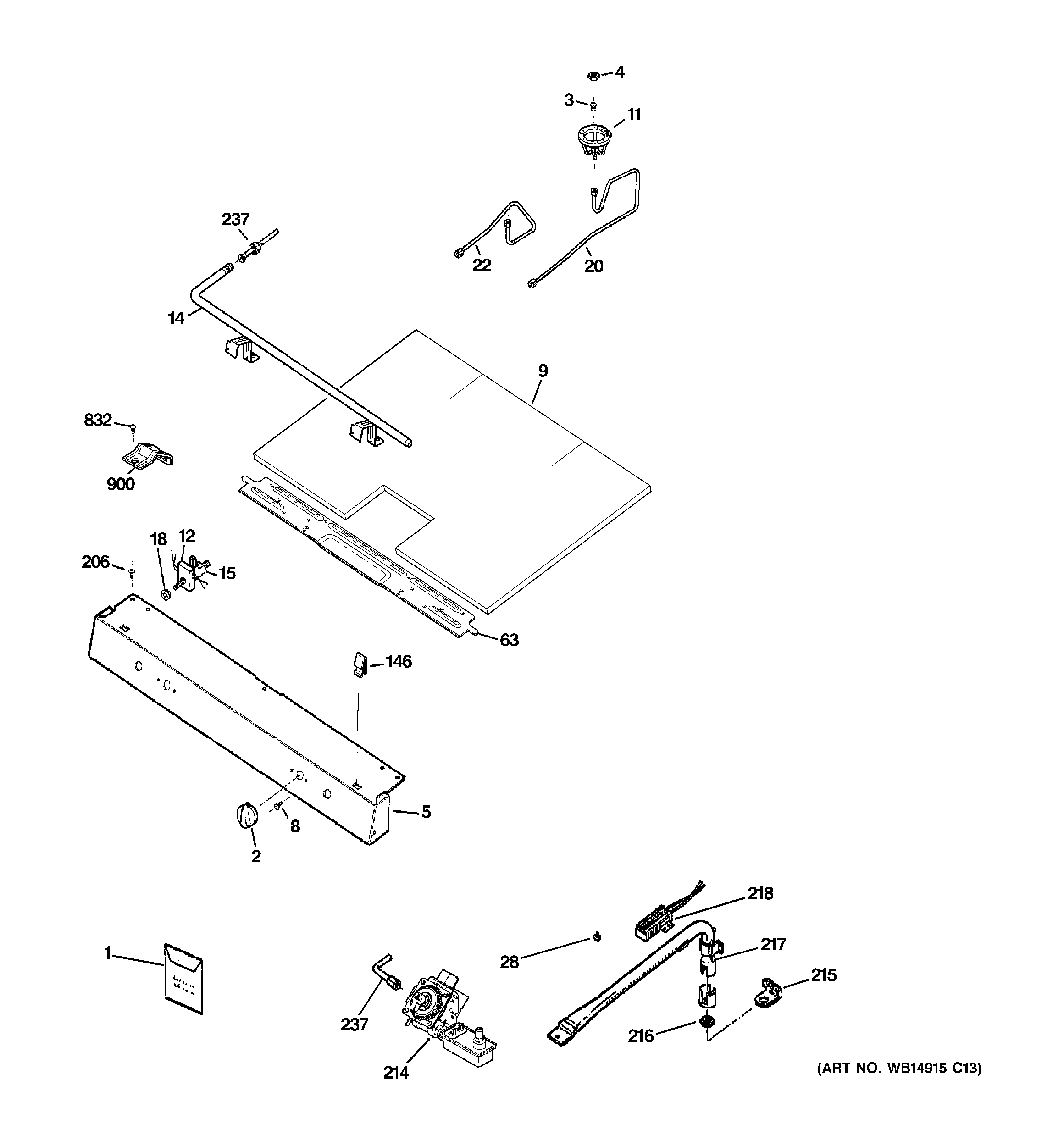

JGBS18DEN7CC GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-14926
1GEN 49-85166
1GEN 31-21390
2WB03K10216 GE Oven Manifold Knob
2GEN WB03K10225
2WB03K10218 GE Oven Control Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10710
5GEN WB36K10712
5GEN WB36K10711
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
11WB02K10361 GE Oven Orifice Holder
12WB18X31208 GE Oven Burner Box Harness
14WB28K10457 GE Oven Manifold Pipe
15ROUND VALVE BURNER
18WB2K24 GE Oven Valve Cover
20GEN WB28K10191
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
22GEN WB28K10192
22WB28K10190 GE Oven Left Front Orifice
28WB1X1293 GE Oven Screw
63WB34X20680 GE Support Manifold
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY ASSEMBLY
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10263 GE Oven Round Valve Bracket
