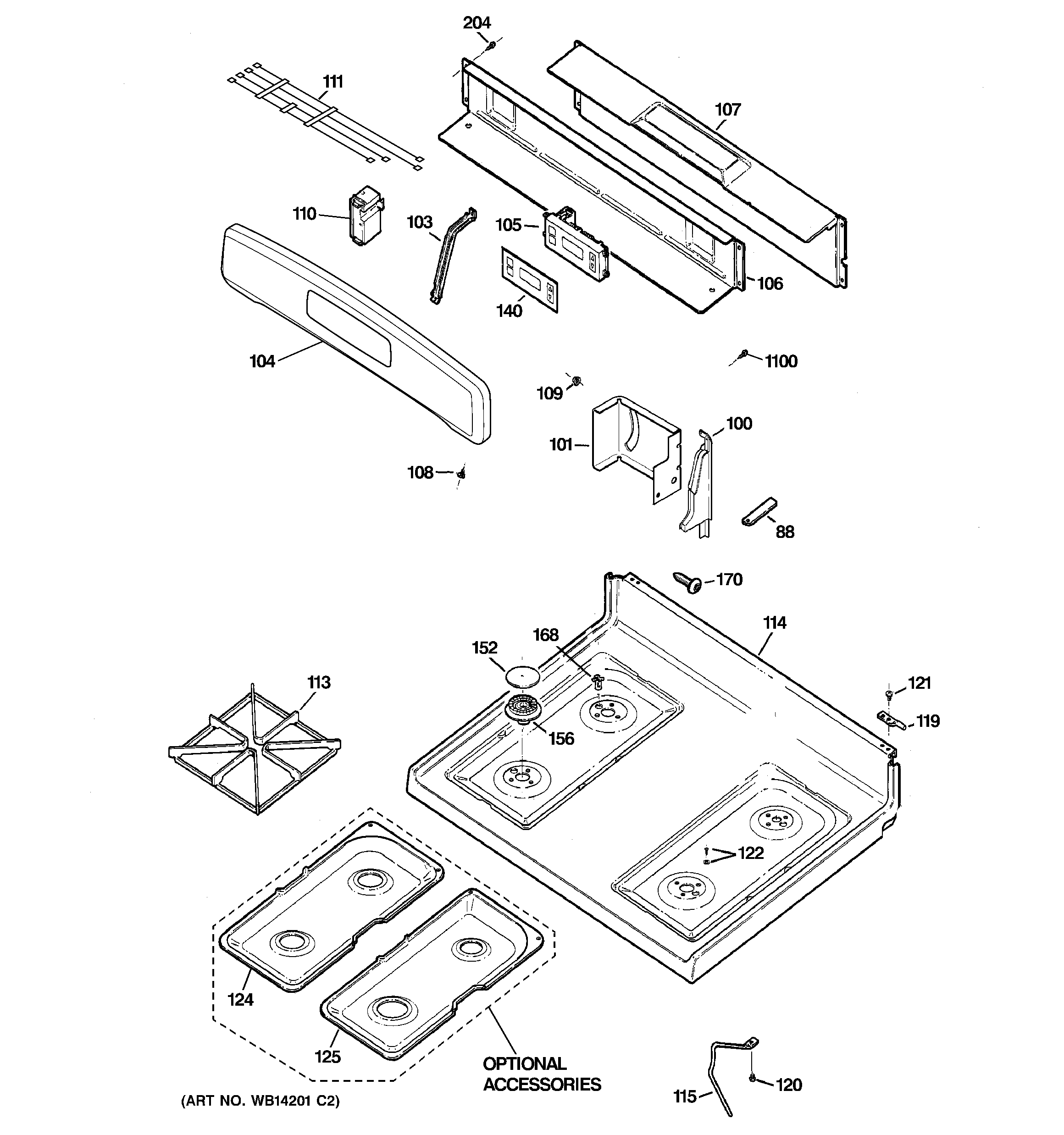

JGBS18DET1BB CONTROL PANEL & COOKTOP

JGBS18DET1BB CONTROL PANEL & COOKTOP

Written by

in

JGBS18DET1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10271
100GEN WB07K10265
100GEN WB07K10261
100GEN WB07K10266
100GEN WB07K10260
100GEN WB07K10270
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104GEN WB36K10672
104GEN WB36K10653
104GEN WB36K10651
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113WB31K10033 GE Oven Burner Grate
113WB31X36766 GE Bisque Grate Replacement Kit
113WB31K10035 GE Oven Grate Gray
114GEN WB62K10158
114RANGE TOP S.B.
114GEN WB62K10157
115WB02K10276 GE Cooktop Support
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
124WB34K10014 GE Oven Left Pan Unit
124WB34K10010 GE Oven Double Burner Drip Pan Black
124DOUBLE TAUPE PORC PAN LEFT SIDE-GAS
125DOUBLE TAUPE PORC PAN RIGHT SIDE-GAS
125WB34K10009 GE Oven Double Burner Drip Pan
125WB34K10013 GE Right Oven Pan Unit
140WB27K10255 GE Oven Overlay T09
140GEN WB27K10266
140WB27K10256 GE Oven Overlay T09
152CAP-BURNER MED TAUPE
152WB29K10004 GE Oven Gray Burner Cap
152WB29K10001 GE Oven Burner Cap
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170WB1X5364 GE Oven Mounting Screw
170GEN WB01X5874
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
1100WB01T10016 GE Oven Screw 8-18 AB Hex
