JGBS18DET1CC DOOR & DRAWER PARTS

JGBS18DET1CC DOOR & DRAWER PARTS

Written by

in

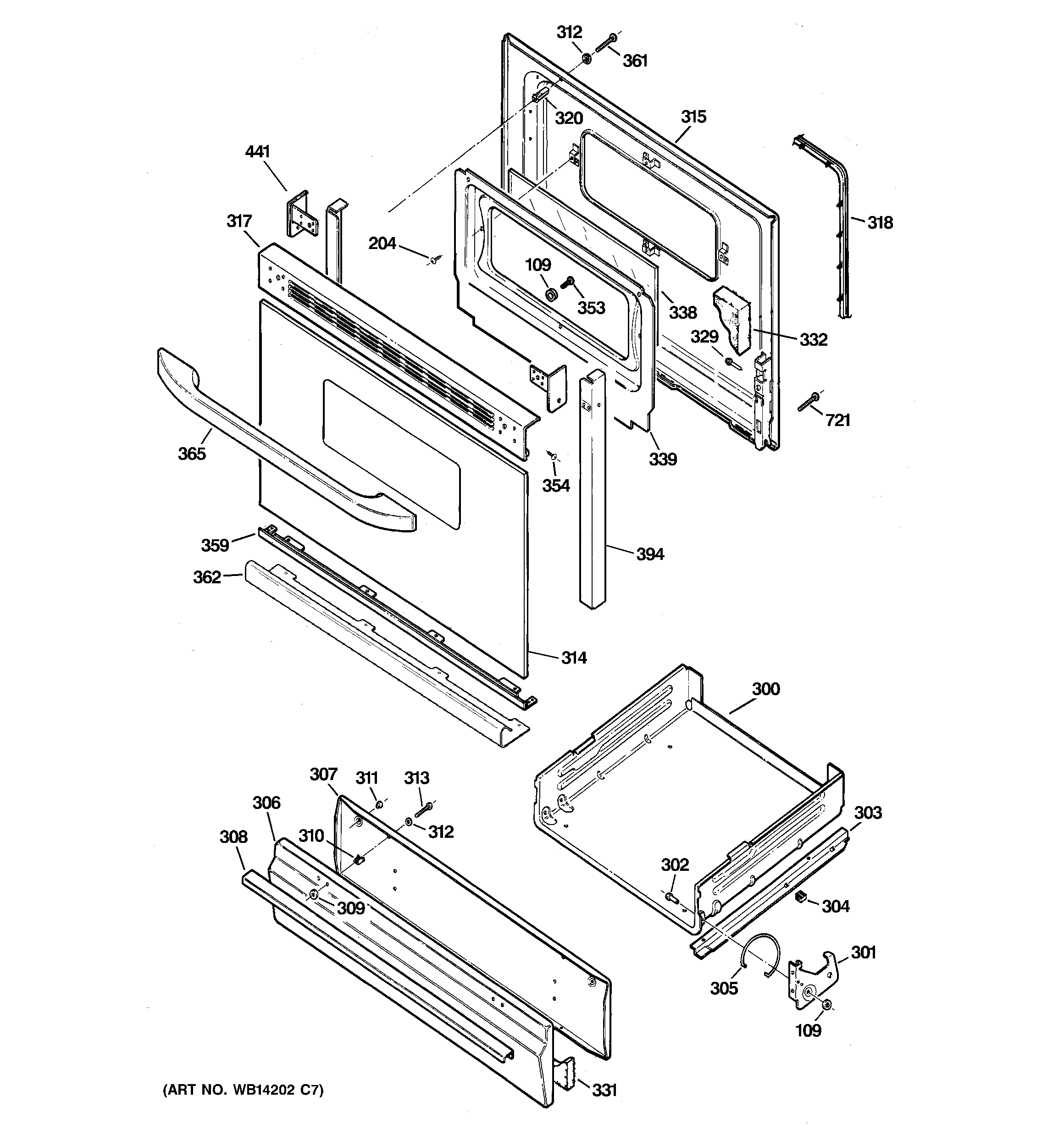

JGBS18DET1CC DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB39K10 GE Oven Drawer Panel Black
306WB55K10010 GE Drawer Panel Bisque
306WB56X21199 GE Oven Drawer Panel
307WB39K10041 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
308WB15K10008 GE Oven Broil Handle
308WB15K10029 GE Oven Broil Handle (Bisque)
309WASHER
310WB2K14 GE Oven Spacer
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K10109 GE Oven Glass Door
314GEN WB57K10112
314WB57K10110 GE Oven Glass Door
315GEN WB55K10037
317WB36K10212 GE Top Door Trim (Bisque)
317WB7K403 GE Oven Top Door Trim
317GEN WB07K0400
318WB32K10036 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
359WB07K10269 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
361WB1K63 GE Oven Screw
362GEN WB07K10342
365GEN WB15K10097
365WB15K10096 GE White Oven Handle
365WB15K10102 GE Oven Handle
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10249
394GEN WB07K10254
394GEN WB07K10273
394GEN WB07K10272
394GEN WB07K10253
441GEN WB07X7182
441GEN WB07X7181
441GEN WB07K10129
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
441GEN WB07K10128
721WB1X536 GE Oven Screw
