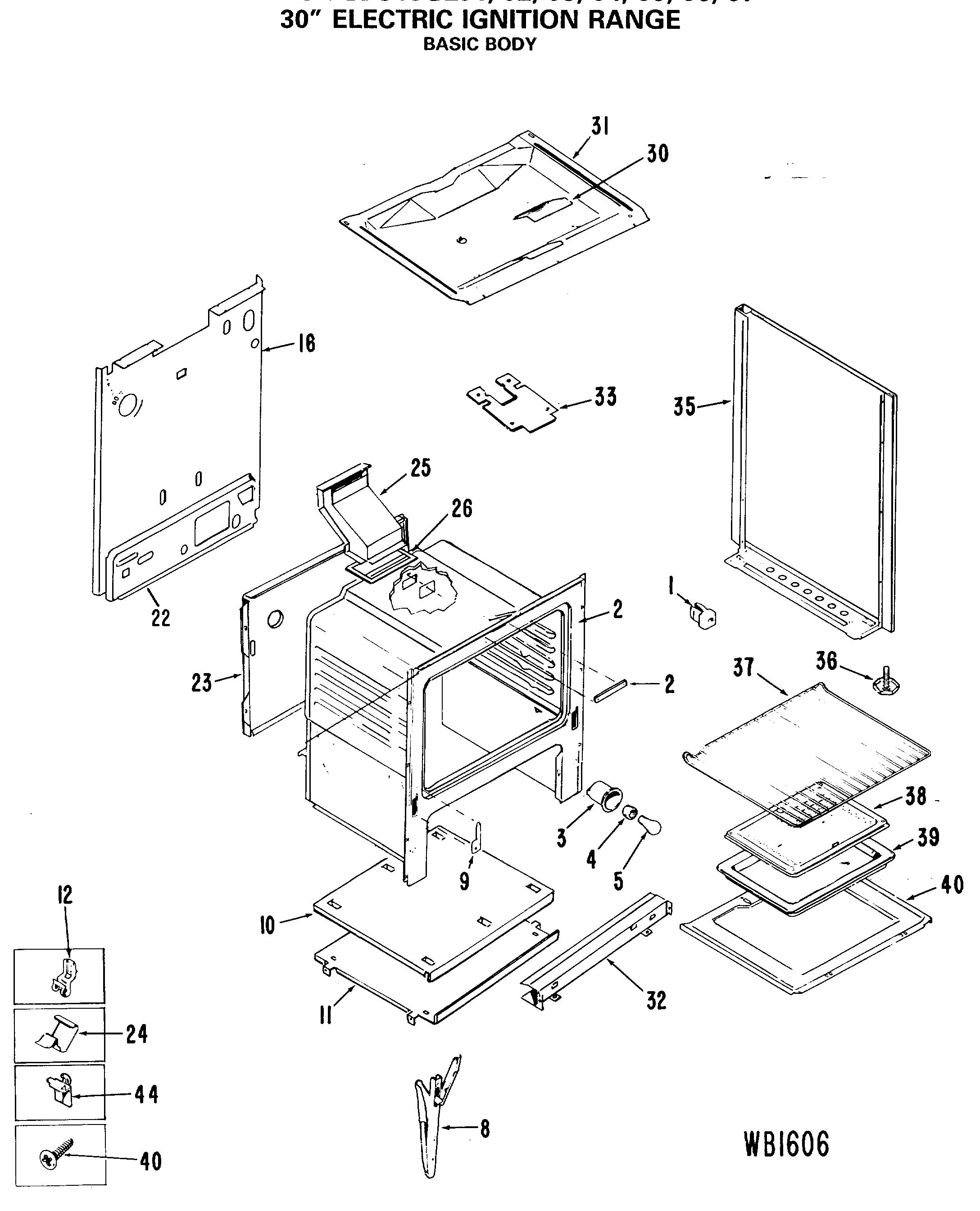

JGBS18GEJ7 30″ ELECTRIC IGNITION RANGE

Products

Position	Product
1	GEN WB01X0931
2	INSULATION-OVEN WRAP
2	OVEN ASSEMBLY
2	GEN WB2X10119
2	*BUMPER-FRONT MAIN
2	GEN WB02X4965
3	GEN WB02X9055
4	GEN WB08X0277
5	GEN BUY-LOCAL
8	HINGE-W/SPRING
8	SPRING-OVEN DOOR HINGE
8	GEN WB01X1013
8	GEN WB01X0936
9	COVER-HINGE CUT OUT
10	GEN WB63X0273
11	GEN WB63X0274
11	GEN WB63X0275
12	CLIP-THERMOSTAT BULB
15	FASTENER-POWER CORD
15	GEN WB18X0255
16	BACK-MAIN
22	GEN WB63X5216
24	GEN WB01X0923
25	GEN WB38X0106
26	GEN WB38X0093
30	PLATE-COVER
31	GEN WB56X1780
31	GEN WB01X1142
32	GEN WB63X0278
33	GEN WB63X0279
35	PNL SIDE RT WH
35	PNL SIDE LT AD
35	PNL SIDE LT WH
35	PNL SIDE RT AD
36	LEVELING LEG
37	GEN WB48X0209
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	SCREW-OVEN BOTTOM
40	GEN WB02X4776
40	GEN WB53X0272
44	GEN WB39X0064
163	GEN WB07X1479
168	GEN WB61X0317
168	GEN WB61X0316
170	GEN WB19X0231
171	GEN WB02X4391
171	GEN WB61X0356
172	GEN WB25X0091
174	GEN WB02X8017
174	KNOB-CLOCK
175	GEN WB24X0376
177	GEN WB24X0413
178	GEN WB21X5280
180	GEN WB02X4952
180	GEN WB07X1577
181	GEN WB07X1518
184	GEN WB07X1517
185	GEN WB03X5794
186	GEN WB03X0758
190	GEN WB61X0319
301	GEN WB07X1556
302	KNOB-TOP BURNER VALVE
303	GRATE-TOP BURNER
304	GEN WB32X0090
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB62X1641
307	GEN WB62X1642
308	ROD CKTP SUPPORT
464	GEN WB56X1888
465	GEN WB15X0245
466	GEN WB56X7024
466	PLUG-DOOR LINER
467	GEN WB02X4984
468	GEN WB56X7021
469	GEN WB02X7964
470	GEN WB07X7067
471	CLIP-RETAINING
473	GEN WB01X1016
474	GEN WB56X1890
475	GEN WB02X4983
476	SCREW
485	GEN WB02X9051
551	GEN WB58X0056
552	GEN WB39X0060
553	GEN WB56X1777
553	GEN WB56X1778
554	SCREW
554	HANDLE-BROILER DOOR
555	LINER-DRAWER PANEL
556	GEN WB02X9052
701	GEN WB49X0591
702	GEN WB49X0593
703	GEN WB28X0065
704	GEN WB28X0074
705	BURNER-TOP (DOUBLE)
706	GEN WB02X9365
706	*RETAINER-IGNITER
707	GEN WB02X8012
707	GEN WB02X8013
708	GEN WB02X8014
709	GEN WB02X8015
711	GEN WB02X4746
712	GEN WB02X9366
713	GEN WB02X8016
714	GEN WB21X5289
714	GEN WB01X5831
715	NUT-COMPRESSION
715	ELBOW
716	GEN WB24X0393
717	12400035 Whirlpool Oven Flat Style Igniter Kit
718	IGNITER-OVEN BURNER
719	GEN WB02X4753
720	GEN WB02X4755
721	GEN WB01X0947
725	GEN WB02X4756
727	GEN WB02X7956
728	GEN WB02X4759
729	GEN WB02X4998
730	GEN WB21X0423
730	GEN WB01X1145
732	GEN WB21X0424
733	GEN WB02X4772
734	NUT
736	GEN WB02X4801
737	NUT-SPECIAL
9999	GEN 49-4890
32767	GEN 31-0627
32767	GEN WB02X9804
