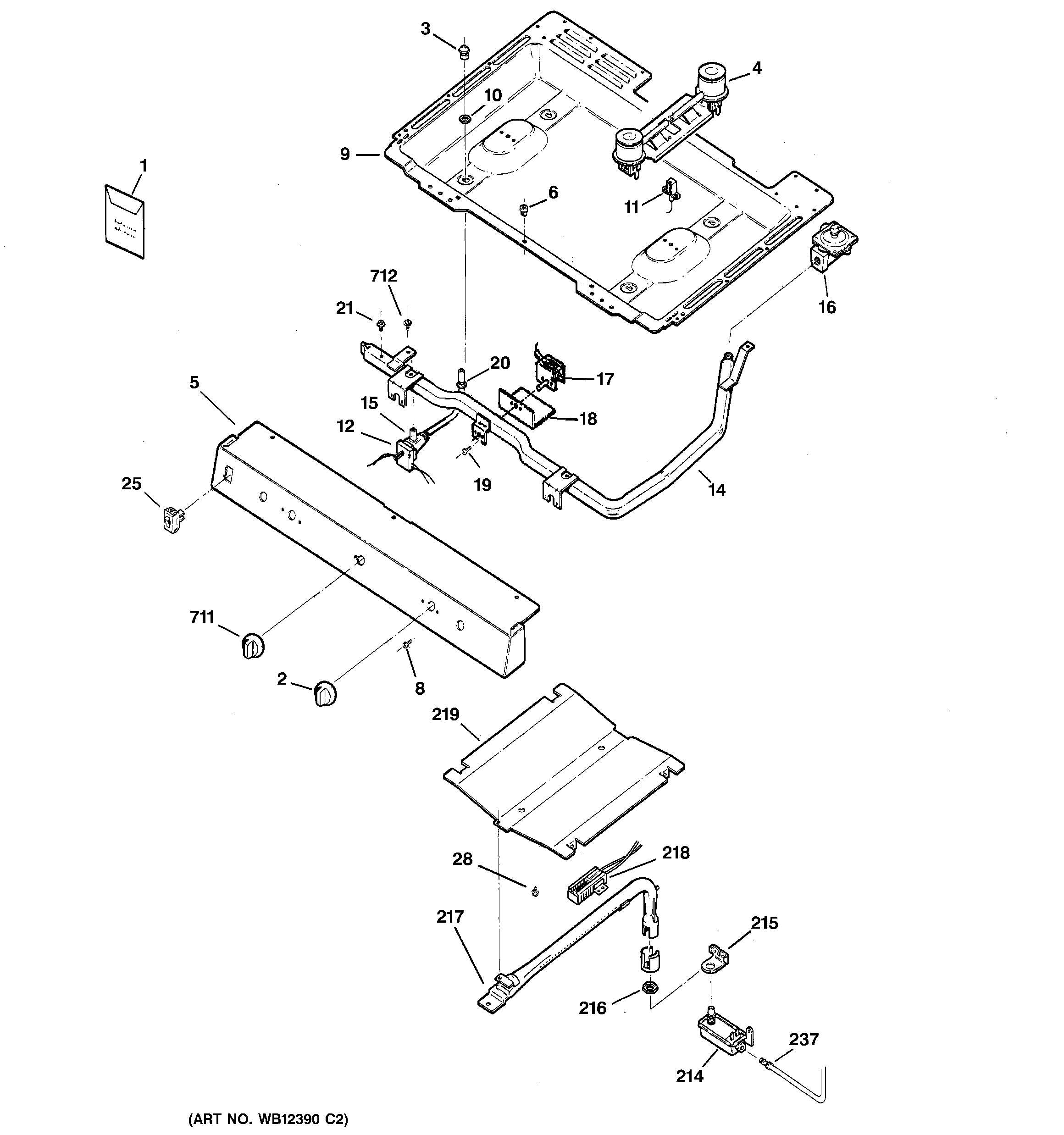

JGBS19BEH1WH GAS & BURNER PARTS

JGBS19BEH1WH GAS & BURNER PARTS

Written by

in

JGBS19BEH1WH GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21084
1GEN WB28K10115
1GEN 49-85053
2WB03K10141 GE Oven Mini Valve Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10322
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
11WB18X26988 GE Oven Top Spark Electrode
12WB24K10017 GE Oven Burner Switch
14GEN WB28K10111
15140 BURNER VALVE
16GEN WB19K0033
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10180
20GEN WB28K10178
20GEN WB28K10181
20GEN WB28K10179
21WB1K83 GE Oven Screw
25GEN WB24K0003
28WB1X1293 GE Oven Screw
214GEN WB19K10015
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K10013 GE Oven Burner Igniter Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28K147 GE Oven Tube Valve Supply
711WB03K10206 GE Oven Knob Assembly Thermostat
712WB1K37 GE Oven Screw
