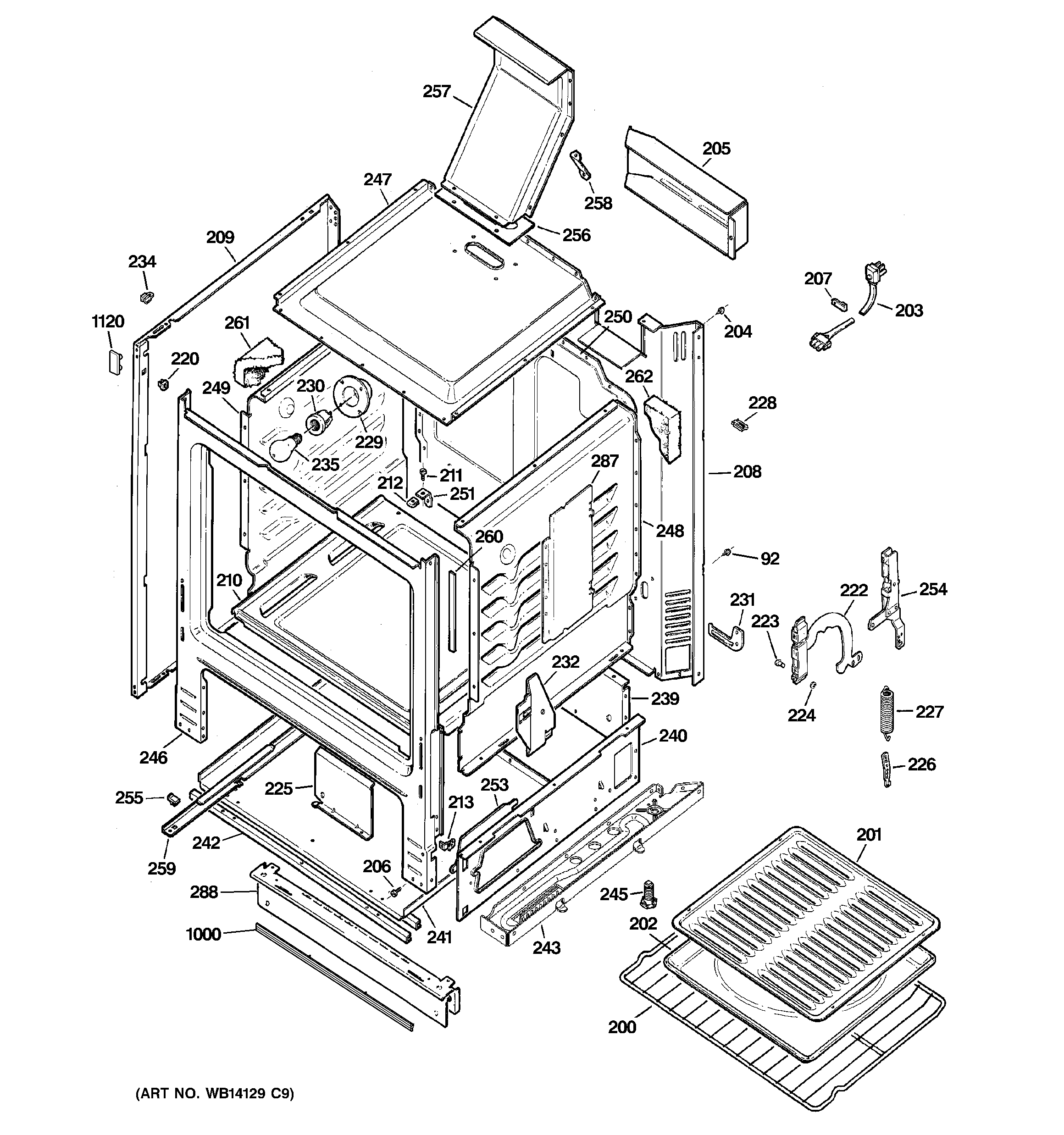

JGBS19BEM6CT BODY PARTS

JGBS19BEM6CT BODY PARTS

Written by

in

JGBS19BEM6CT BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
200OVEN RACK
201WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205GEN WB34K0021
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
209WB63K10122 GE Oven Side Panel
209GEN WB63K10124
210GEN WB35K10042
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239GEN WB63K0001
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10231 GE Base Support
243GEN WB63K10230
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10272
247WB53K10002 GE Oven Top
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250GEN WB53K0021
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
254SUPPORT ASM RIVET LF
254SUPPORT ASM RIVET RT
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259GEN WB39K0001
259GEN WB39K0002
260WB32K2 GE Oven Gasket Seal
261WB35K10157 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
1120WB02K10180 GE Oven Bumper
1120WB02K10179 GE Range Bumper
