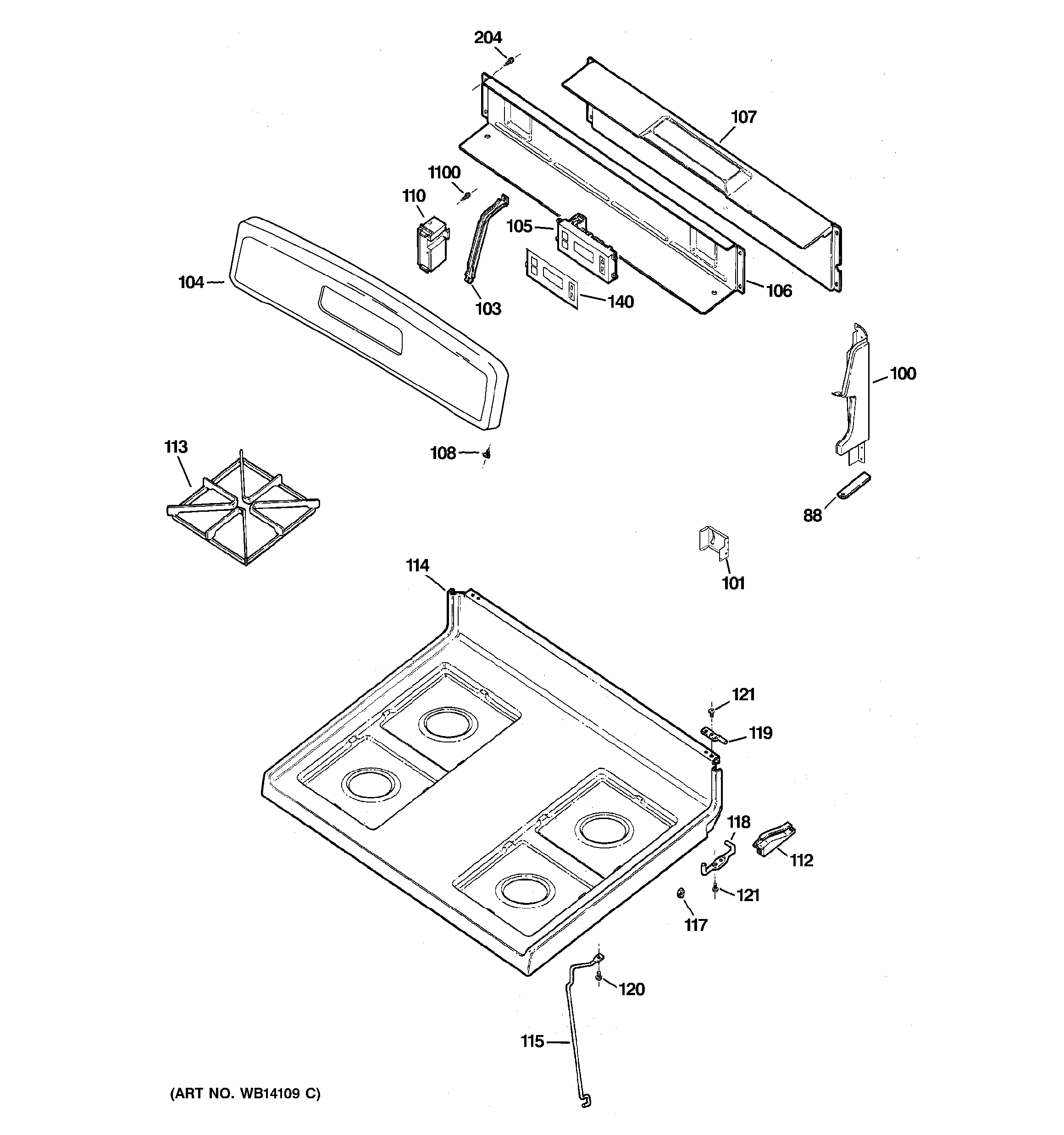

JGBS20DEM1BB CONTROL PANEL & COOKTOP

JGBS20DEM1BB CONTROL PANEL & COOKTOP

Written by

in

JGBS20DEM1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10099
88GEN WB02K0062
100GEN WB07K10261
100GEN WB07K10260
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104GEN WB36K10651
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
110WB13X24321 GE Oven Ignition Module
110GEN WB18K10027
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10026 GE Oven Grate
114WB62K10109 GE Range Top Standard
115GEN WB06K0008
117GEN WB02K0017
117WB14K10004 GE Oven Pin Locator
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
140WB27K10255 GE Oven Overlay T09
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
