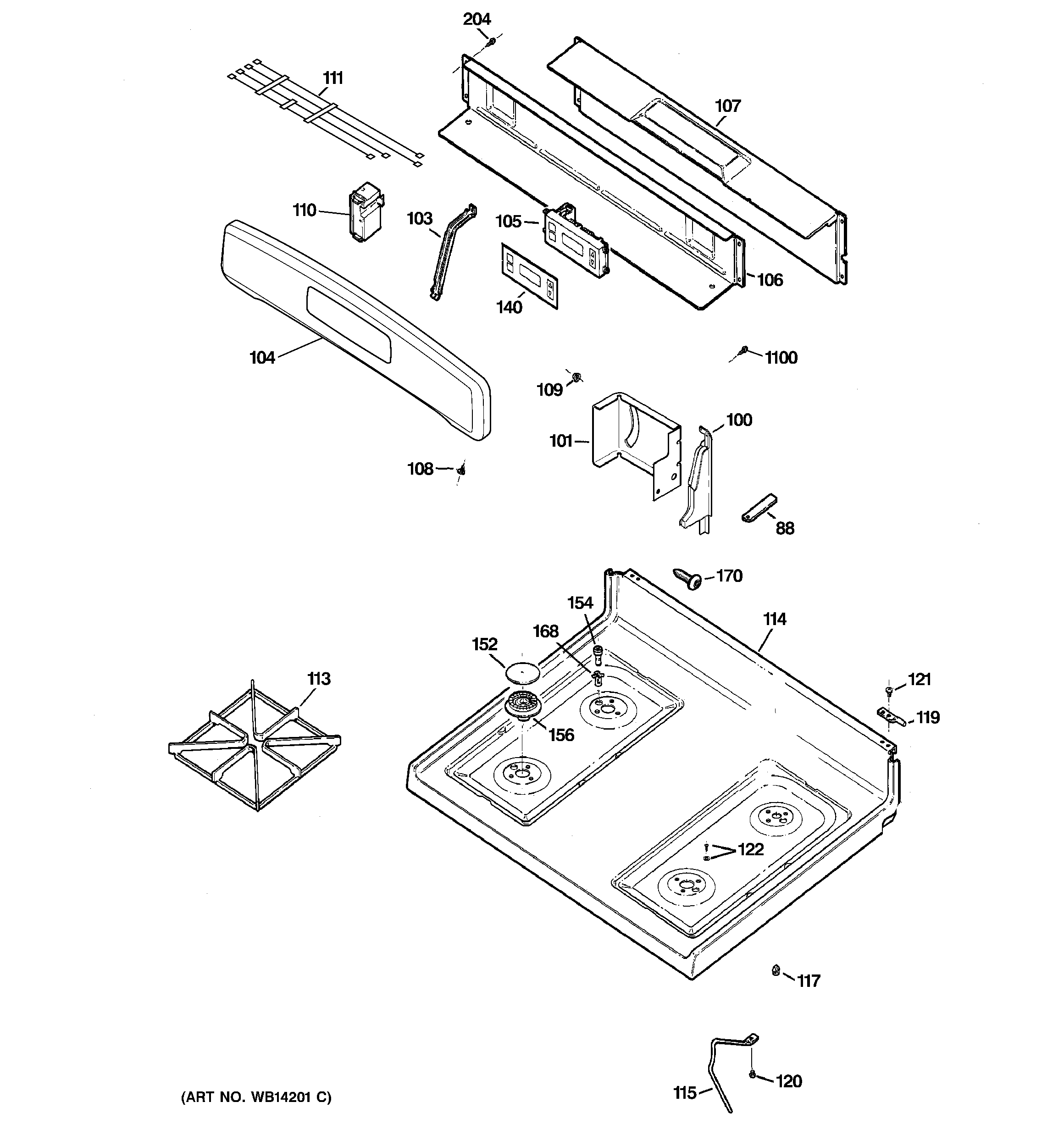

JGBS21DEM1WW CONTROL PANEL & COOKTOP

JGBS21DEM1WW CONTROL PANEL & COOKTOP

Written by

in

JGBS21DEM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K10098
100GEN WB07K10265
100GEN WB07K10266
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10653
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB18K10042 GE Oven Harness Module
110WB13X42446 GE Spark Module Replacement Kit
111GEN WB18K10039
113WB31K10033 GE Oven Burner Grate
114GEN WB62K10046
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
140WB27K10256 GE Oven Overlay T09
152WB29K10001 GE Oven Burner Cap
154GEN WB13K10014
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
