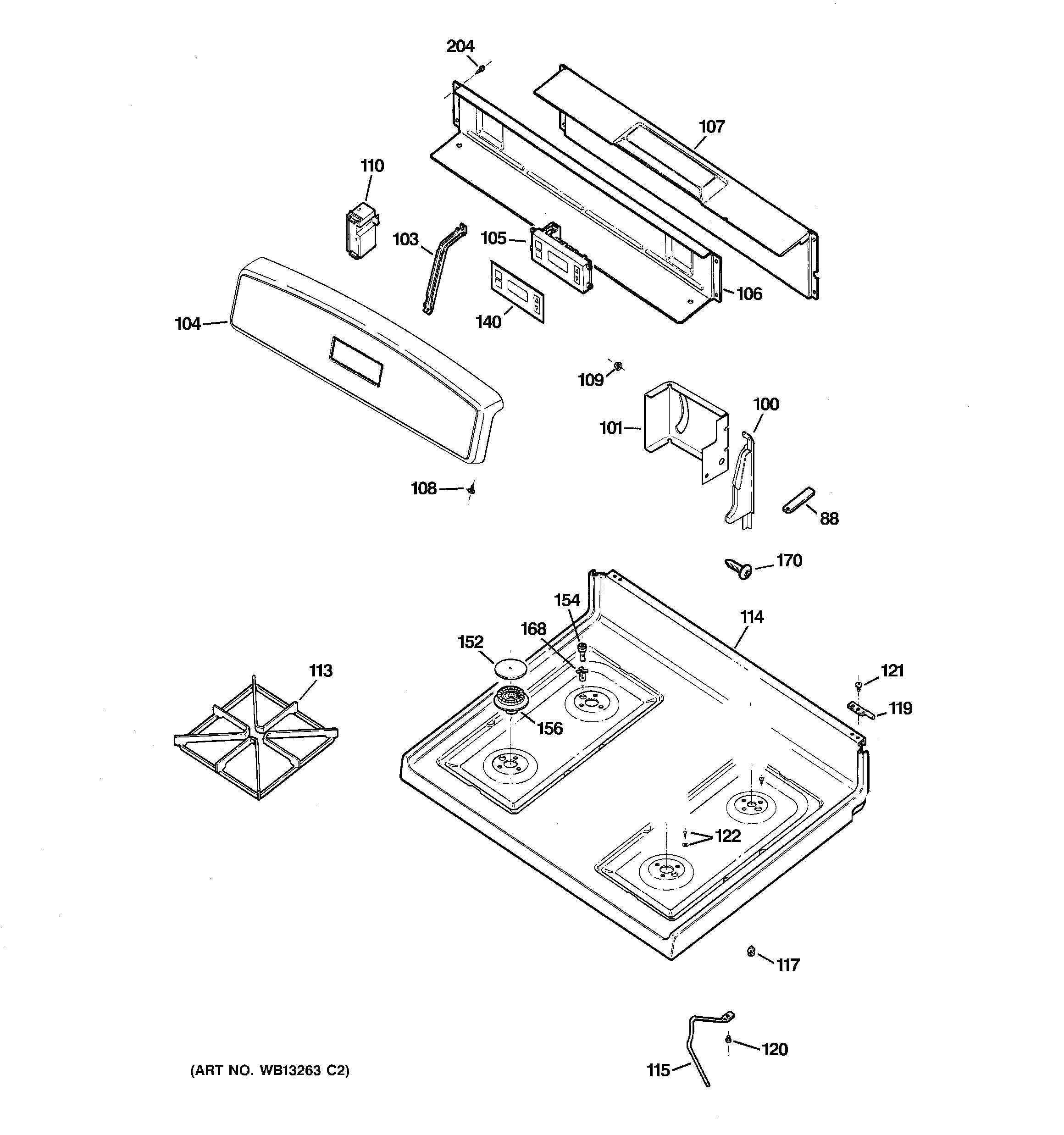

JGBS22BEH6WH CONTROL PANEL & COOKTOP

JGBS22BEH6WH CONTROL PANEL & COOKTOP

Written by

in

JGBS22BEH6WH CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10099
88GEN WB02K0062
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10072
104TRIM CONTROL (GLOSS BLK)
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
109GEN WB01X5743
110WB18K10042 GE Oven Harness Module
110WB13X42446 GE Spark Module Replacement Kit
110GEN WB18K10039
113WB31K10033 GE Oven Burner Grate
114GEN WB62K10046
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
140GEN WB27K10103
152WB29K10001 GE Oven Burner Cap
154GEN WB13K10014
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
