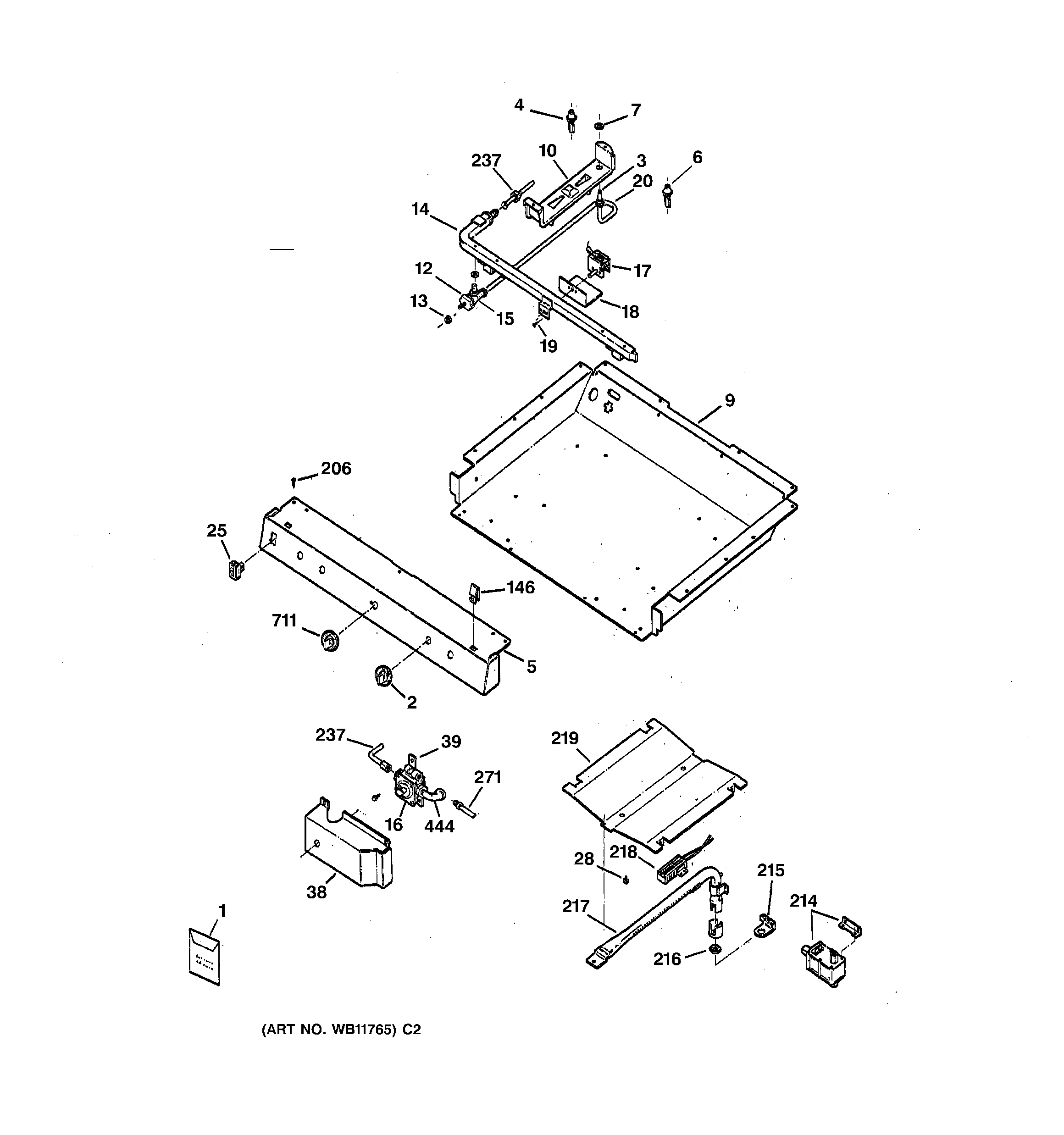

JGBS22BEW3AD GAS & BURNER PARTS

JGBS22BEW3AD GAS & BURNER PARTS

Written by

in

JGBS22BEW3AD GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-8765
1WB2K20 GE Oven Bracket Assembly
1GEN 31-20615
2GEN WB03K0160
3GEN WB28K0168
3ORIF. SPUD LP LG
3ORIF. SPUD (LP) MED.
3GEN WB28K0142
3GEN WB28K0143
3GEN WB28K0141
3GEN WB28K0144
4GEN WB16K0013
5PANEL MANIFOLD (BK)
6GEN WB16K0014
7GEN WB01K0004
9GEN WB63K0024
10GEN WB02K0099
10GEN WB02K0098
12GEN WB24K0030
13GEN WB02K0108
14GEN WB28K0066
15GEN WB21K0028
15VALVE LEFT BURNERS
15GEN WB21K0026
16GEN WB19K0028
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0189
20GEN WB28K0187
20GEN WB28K0186
20GEN WB28K0188
21WB1K83 GE Oven Screw
25GEN WB24K0003
28WB2X9154 GE Oven Igniter with 8" Leads
28WB1X1293 GE Oven Screw
38GEN WB34K0029
39GEN WB02K0088
144GEN WB02K0046
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K13 GE Oven Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K0018
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K0148
271GEN WB28K0149
444GEN WB28K0061
711THERMOSTAT KNOB (BK)
