JGBS22WEK4WW GAS & BURNER PARTS

JGBS22WEK4WW GAS & BURNER PARTS

Written by

in

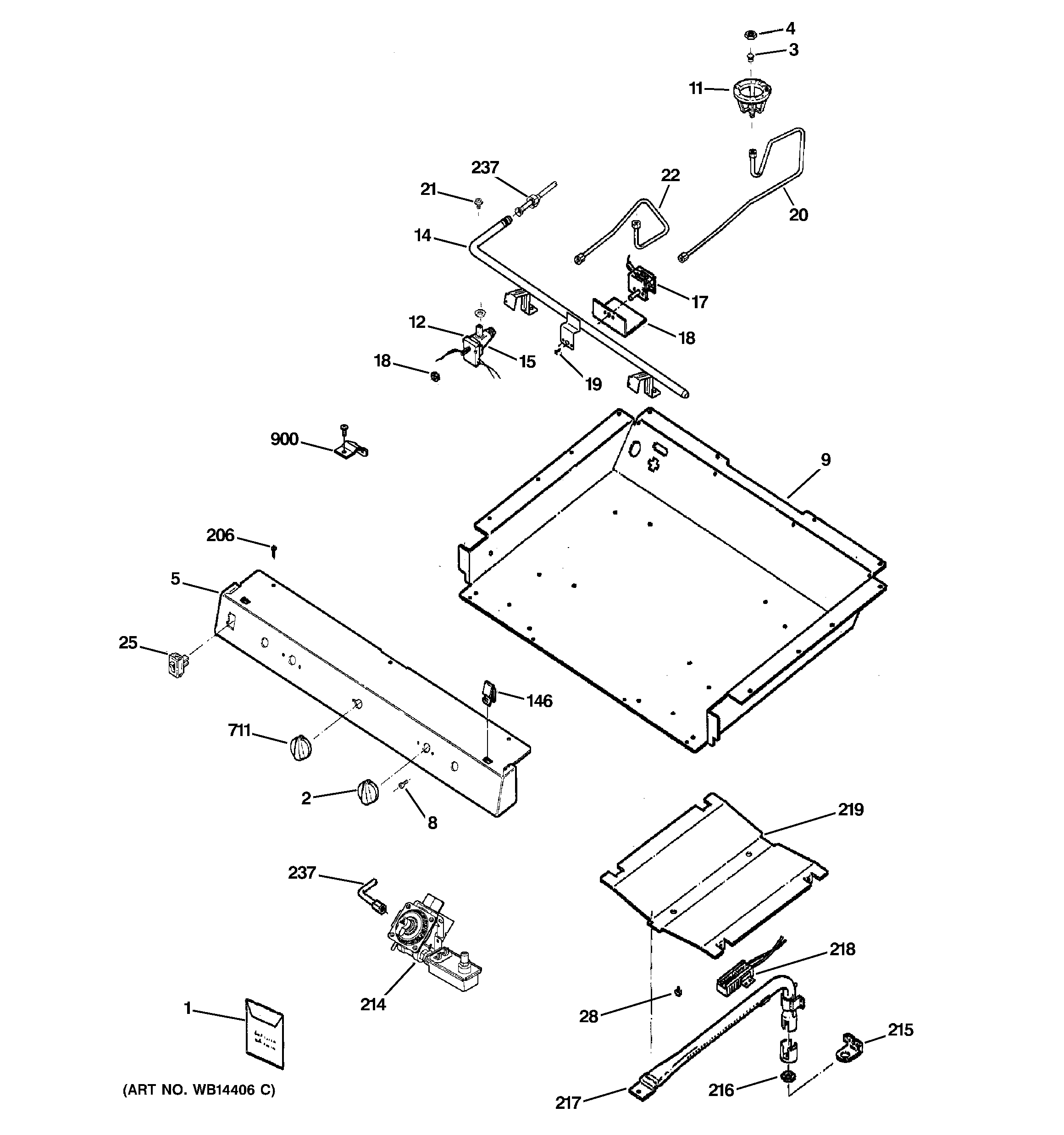

JGBS22WEK4WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21255
1GEN 49-85095
1GEN WB28K10176
2WB03K10143 GE Oven Burner Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10333
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
11WB02K10361 GE Oven Orifice Holder
12WB24K10017 GE Oven Burner Switch
14WB28K10427 GE Oven Manifold Pipe
15GEN WB28K10394
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
20GEN WB28K10191
21GEN WB01K10071
22WB28K10190 GE Oven Left Front Orifice
22GEN WB28K10192
25WB24K5022 GE Oven Rocker Switch
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K10013 GE Oven Burner Igniter Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10109
711WB03K10144 GE Oven Thermostat Knob (White)
900WB02K10297 GE Oven Valve Bracket
