JGBS23AEA1AA CONTROL PANEL & COOKTOP

JGBS23AEA1AA CONTROL PANEL & COOKTOP

Written by

in

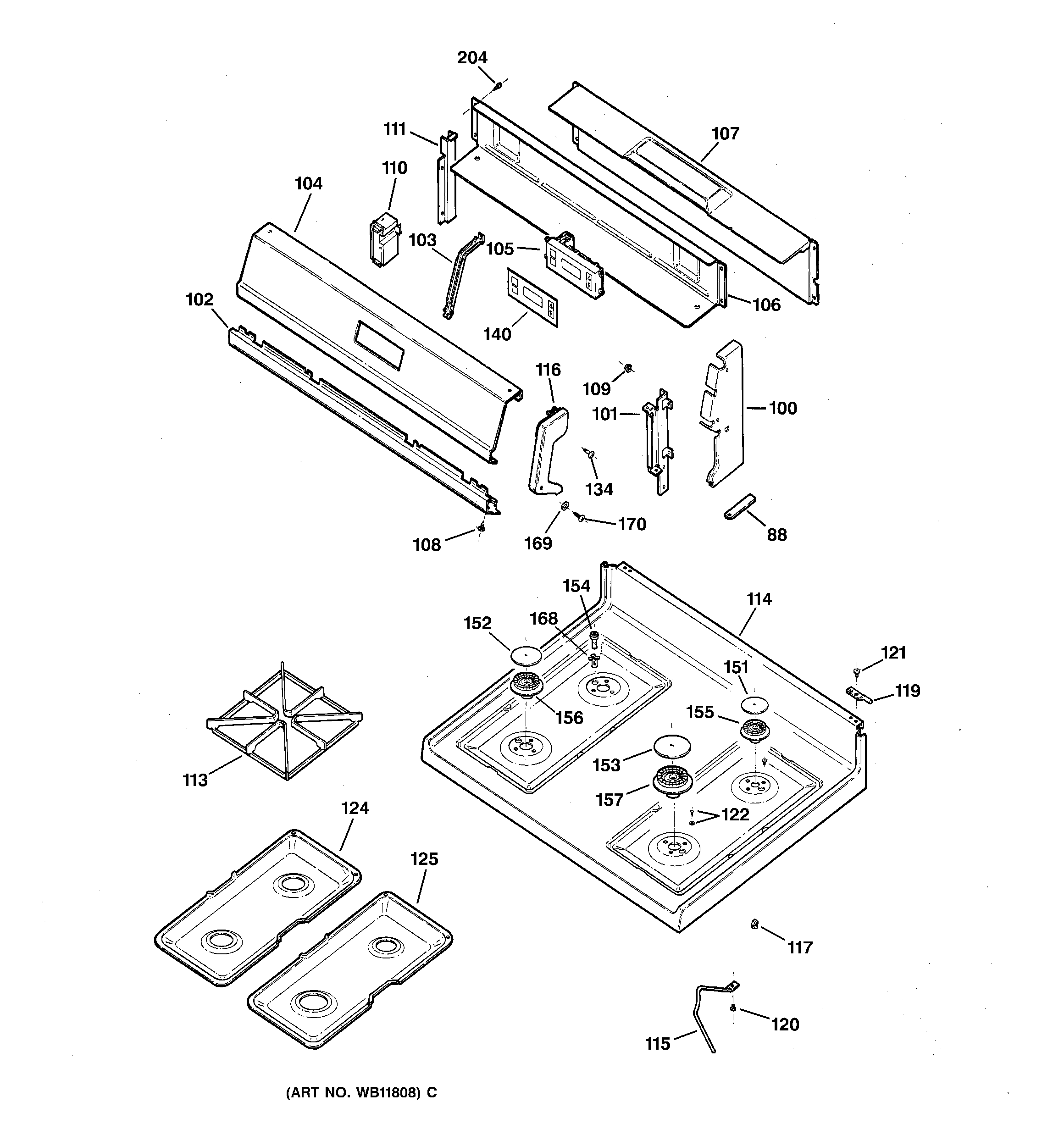

JGBS23AEA1AA CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10008
100GEN WB07K10009
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10005
104GEN WB36K10066
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
108SCREW (AD)
109GEN WB01X5743
110GEN WB13K0025
110WB18K10035 GE Oven Wire Harness
111GEN WB34K0005
113WB31X36766 GE Bisque Grate Replacement Kit
114GEN WB62K10008
115WB2K91 GE Oven Top Support
116GEN WB07K10011
116GEN WB07K10012
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
122GEN WB01K10008
124GEN WB32K10008
125GEN WB32K10006
134GEN WB01K0076
140GEN WB27K10005
151CAP-BURNER SMALL TAUPE
152CAP-BURNER MED TAUPE
153WB29X36765 GE Large Cap Burner Taupe Rep
154GEN WB13K10003
155GEN WB16K10006
156BURNER
157GEN WB16K10007
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB01K0057
170GEN WB01K10004
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
