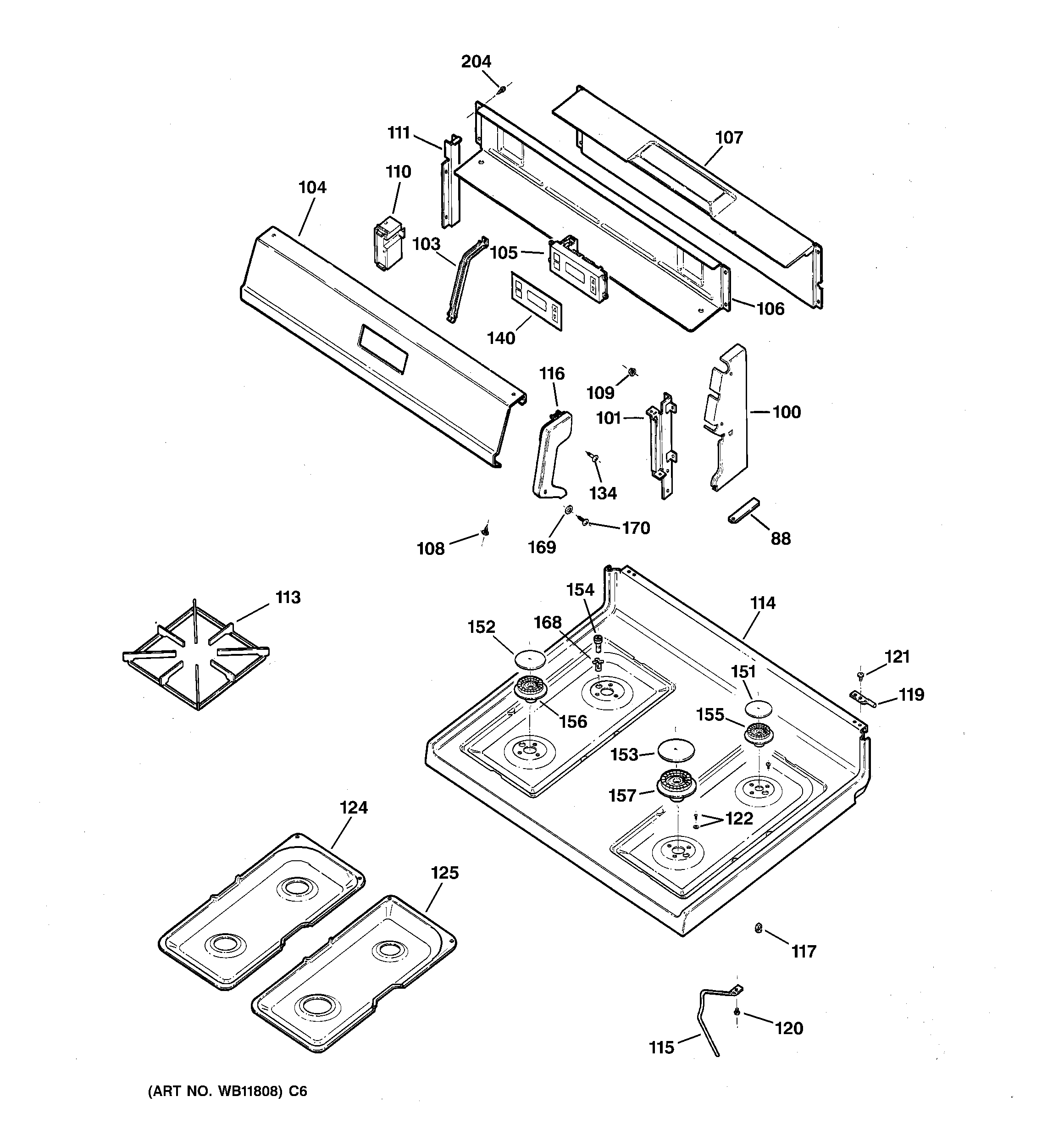

JGBS23BEA2AD CONTROL PANEL & COOKTOP

JGBS23BEA2AD CONTROL PANEL & COOKTOP

Written by

in

JGBS23BEA2AD CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10008
100GEN WB07K10009
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10059
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB18K10035 GE Oven Wire Harness
110GEN WB13K0025
111GEN WB34K0005
113WB31K10033 GE Oven Burner Grate
115WB2K91 GE Oven Top Support
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10010 GE Oven Double Burner Drip Pan Black
125WB34K10009 GE Oven Double Burner Drip Pan
134GEN WB01K10003
140GEN WB27K10004
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10003
155GEN WB16K10006
156BURNER
157GEN WB16K10007
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB01K0057
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
