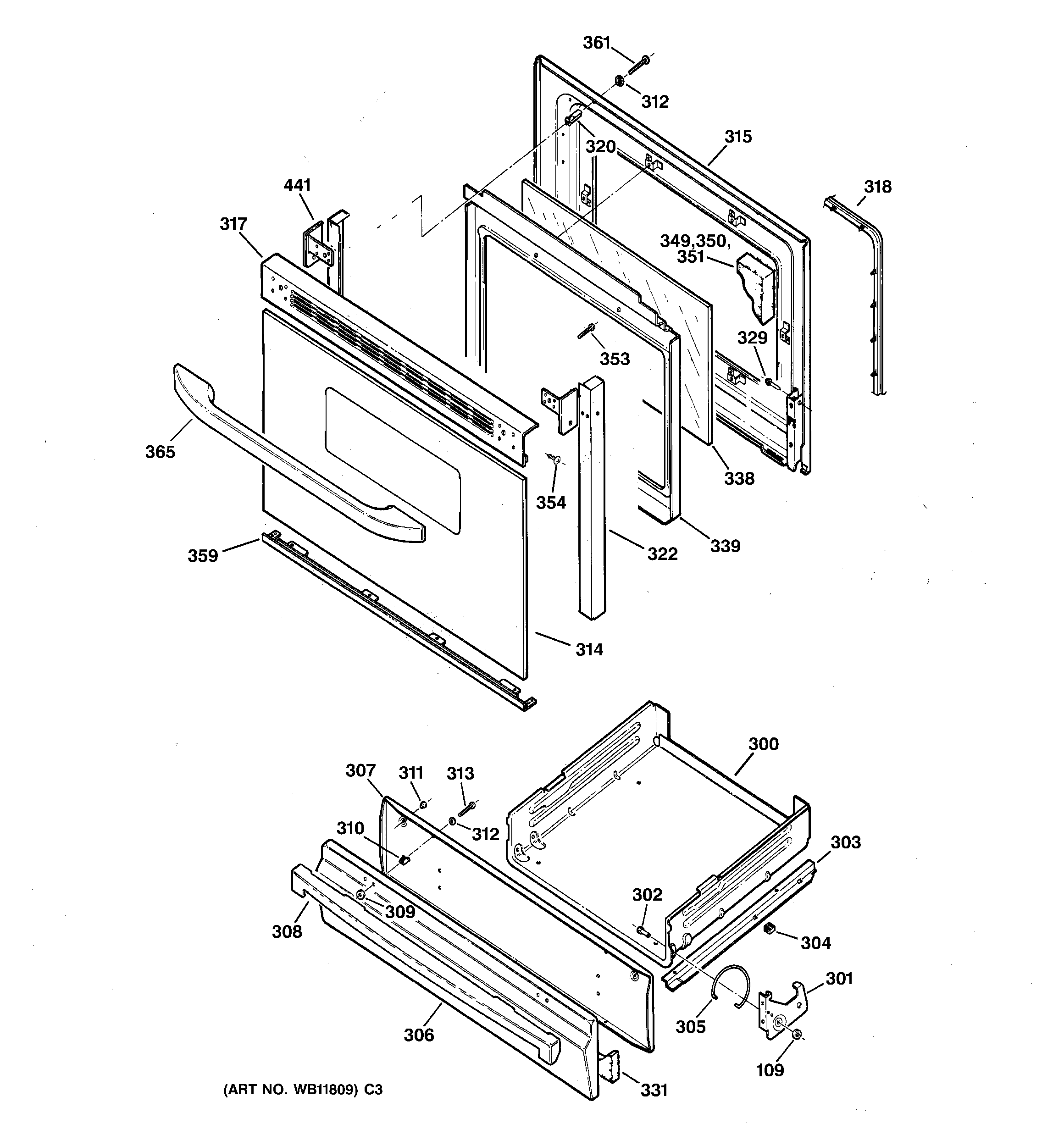

JGBS23BEA4WH DOOR & DRAWER PARTS

JGBS23BEA4WH DOOR & DRAWER PARTS

Written by

in

JGBS23BEA4WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0008
303GEN WB39K0007
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB56X21199 GE Oven Drawer Panel
307GEN WB39K0005
308WB15K10008 GE Oven Broil Handle
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K4 GE Oven Black Glass Door
315GEN WB55K0014
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320GEN WB02K0084
322GEN WB07K10121
322GEN WB07K10120
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
338GEN WB56K0014
339GEN WB56K0015
349GEN WB35K0011
350GEN WB35K0013
351GEN WB35K0014
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365WB15X10047 GE Range Oven Black Door Handle
441GEN WB07X7182
441GEN WB07X7181
