JGBS23BEH2BB GAS & BURNER PARTS

JGBS23BEH2BB GAS & BURNER PARTS

Written by

in

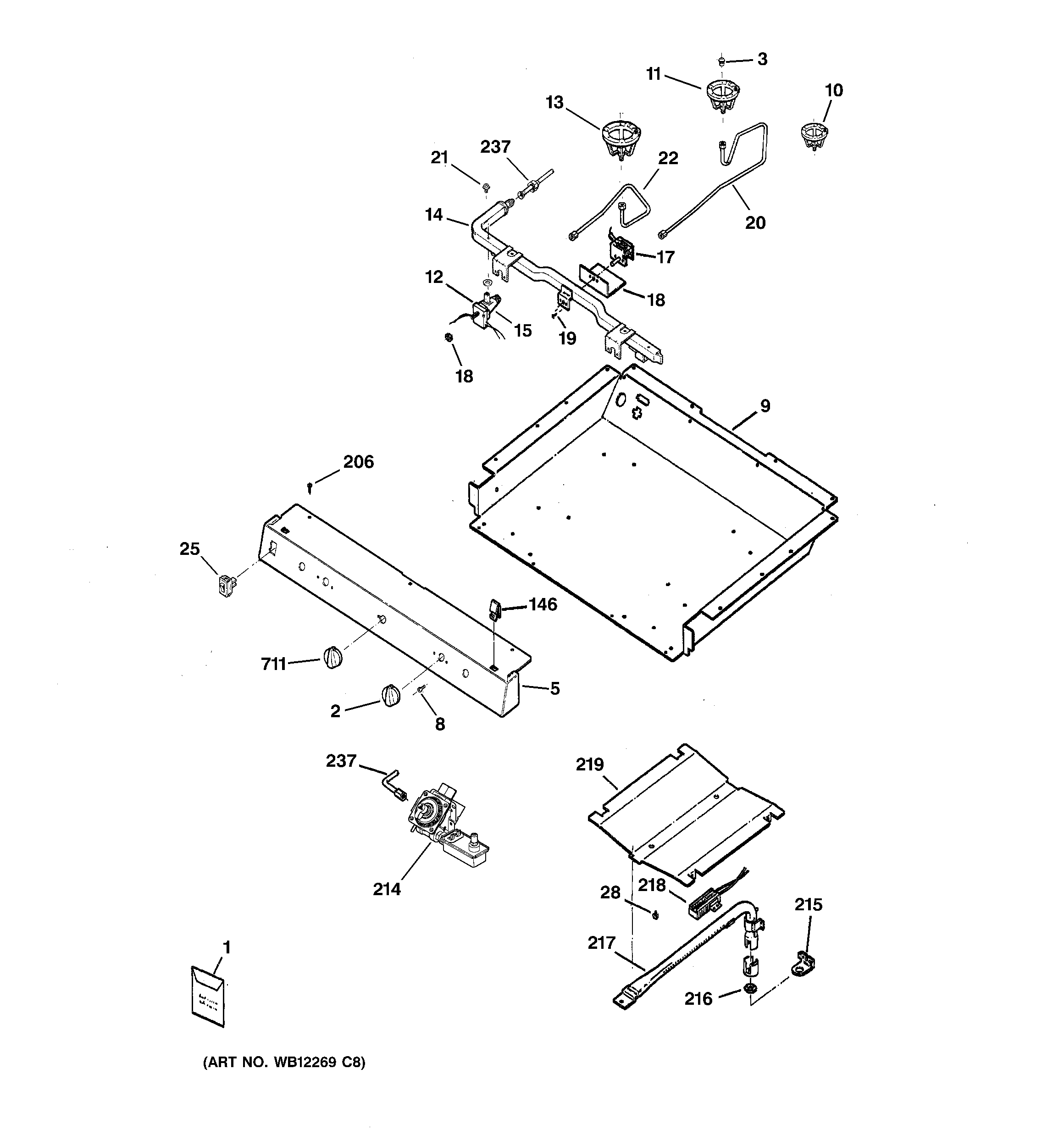

JGBS23BEH2BB GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10175
1GEN 49-85068
1GEN 31-21081
2WB03K10141 GE Oven Mini Valve Knob
3ORIFICE-NG MED 1.50MM
3WB28K10030 GE Oven Natural Gas Orifice
3WB28K10032 GE Oven LP Orifice
3WB28K10031 GE Oven Orifice
3WB28K10023 GE Oven Orifice
3WB28K10029 GE Oven Natural Gas Orifice
5GEN WB36K10335
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10GEN WB02K10007
11GEN WB02K10006
12GEN WB24K10023
12GEN WB24K10024
13GEN WB02K10008
14GEN WB28K10110
15GEN WB21K10014
15GEN WB21K10016
15GEN WB21K10015
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10026
20GEN WB28K10027
21WB1K83 GE Oven Screw
22WB28K10024 GE Oven Burner Tube
22WB28K10025 GE Gas Range Burner Tube
25GEN WB24K0003
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K10013 GE Oven Burner Igniter Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10109
711WB03K10206 GE Oven Knob Assembly Thermostat
