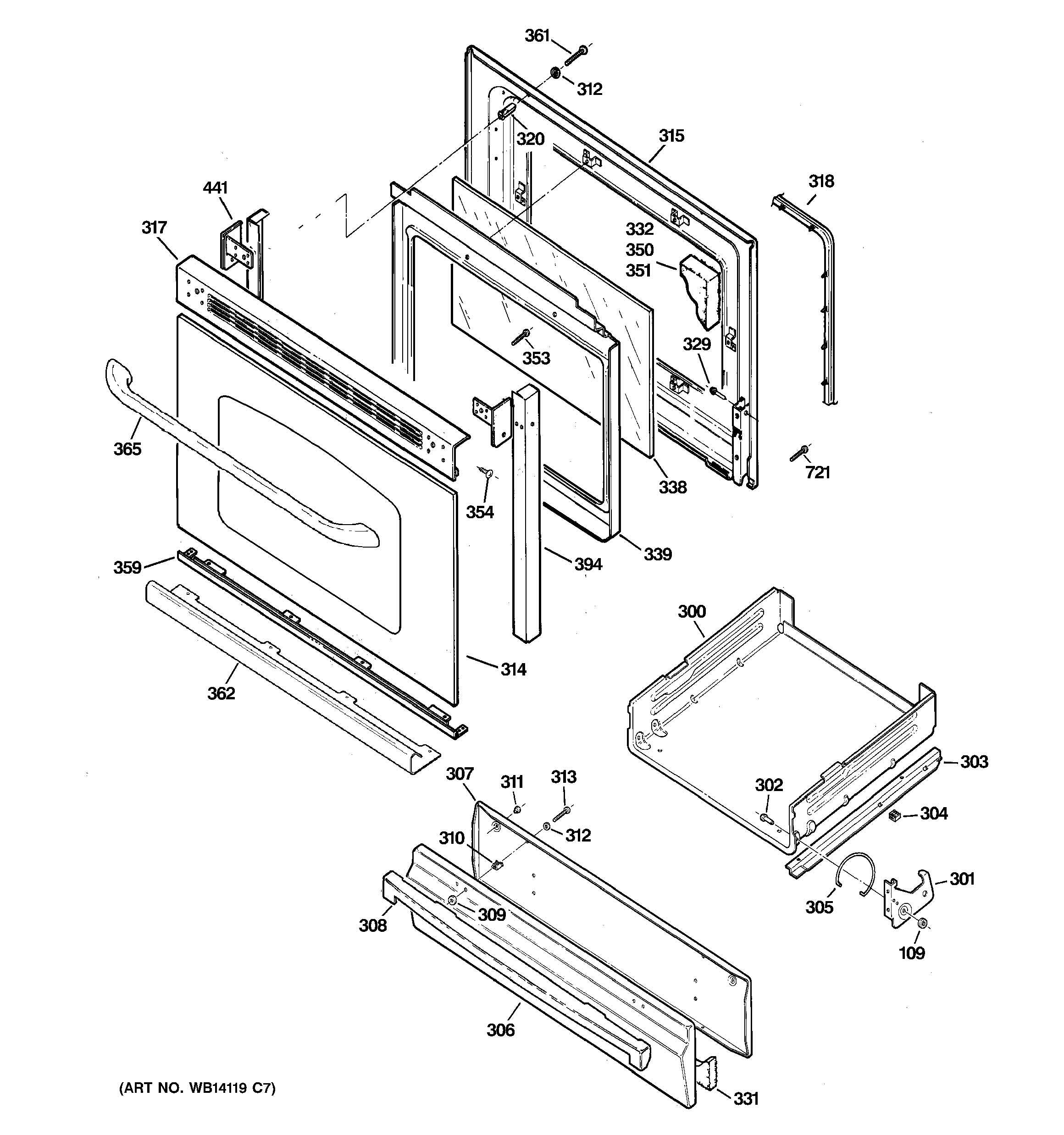

JGBS23DEM7BB DOOR & DRAWER PARTS

JGBS23DEM7BB DOOR & DRAWER PARTS

Written by

in

JGBS23DEM7BB DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB39K10 GE Oven Drawer Panel Black
306WB56X21199 GE Oven Drawer Panel
307WB39K10041 GE Oven Drawer Liner
308WB15K10008 GE Oven Broil Handle
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K10110 GE Oven Glass Door
314WB57K10109 GE Oven Glass Door
315GEN WB55K10037
317WB7K403 GE Oven Top Door Trim
317GEN WB07K0400
318WB32K10036 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
361WB1K63 GE Oven Screw
362GEN WB07K10342
365WB15K10102 GE Oven Handle
365WB15K10096 GE White Oven Handle
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10254
394GEN WB07K10249
394GEN WB07K10253
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7182
441GEN WB07X7181
721WB1X536 GE Oven Screw
