JGBS23DEW1AD GAS & BURNER PARTS

JGBS23DEW1AD GAS & BURNER PARTS

Written by

in

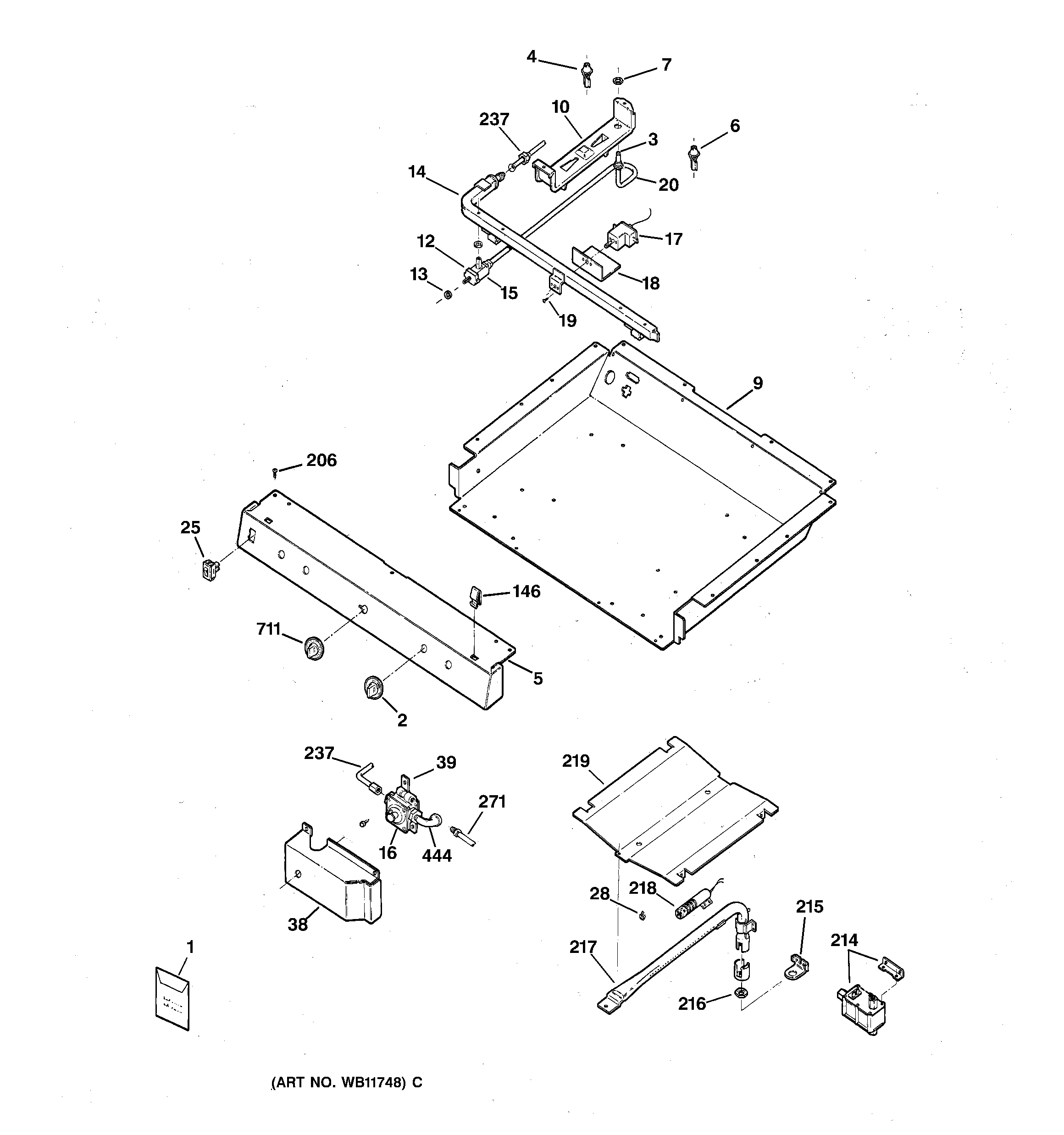

JGBS23DEW1AD GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-8765
1WB2K20 GE Oven Bracket Assembly
1GEN 31-20142
2GEN WB03K0160
3GEN WB28K0144
3GEN WB28K0143
3ORIF. SPUD LP LG
3ORIF. SPUD (LP) MED.
3GEN WB28K0141
3GEN WB28K0142
4GEN WB16K0013
5PANEL MANIFOLD (BK)
6GEN WB16K0014
7GEN WB01K0004
9GEN WB63K0024
10GEN WB02K0099
10GEN WB02K0098
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0066
15GEN WB21K0021
15WB21K12 GE Oven Burner Control Valve
15GEN WB21K0020
16GEN WB19K0028
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0188
20GEN WB28K0187
20GEN WB28K0186
20GEN WB28K0189
25GEN WB24K0003
28WB1X1293 GE Oven Screw
38GEN WB34K0029
39GEN WB02K0088
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K13 GE Oven Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K0018
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237GEN WB28K0148
271GEN WB28K0149
444GEN WB28K0061
711THERMOSTAT KNOB (BK)
