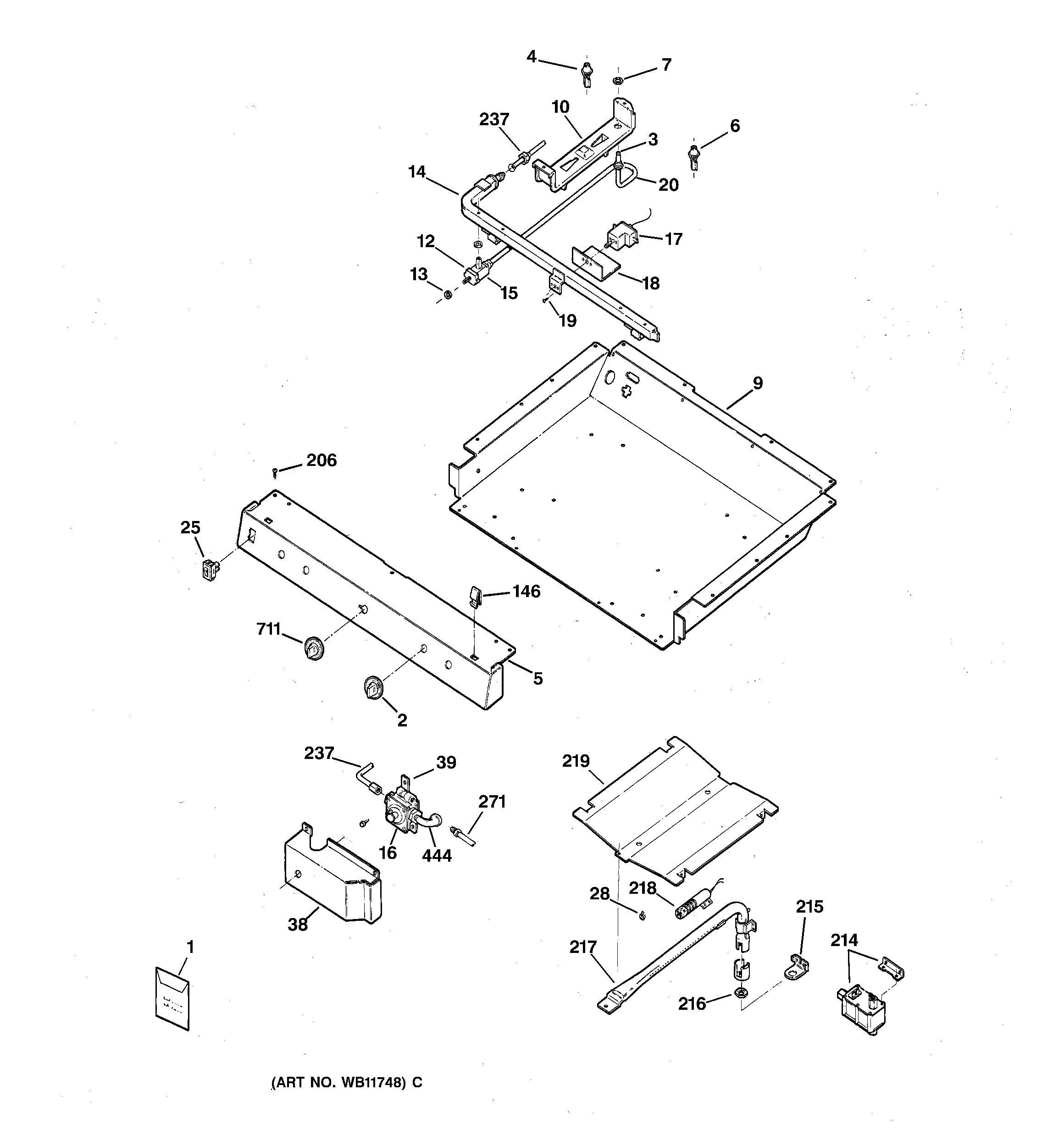

JGBS23DEW2WH GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-20142
1	WZ4X345D GE Screw Package 12 C92
1	WB2K20 GE Oven Bracket Assembly
1	GEN 49-8765
2	WB1X5364 GE Oven Mounting Screw
2	GEN WB03K0160
3	ORIF. SPUD LP LG
3	ORIF. SPUD (LP) MED.
3	GEN WB28K0141
3	GEN WB28K0142
3	WR01X10065 GE Screw
3	GEN WB28K0143
3	GEN WB28K0144
4	GEN WB16K0013
5	PANEL MANIFOLD (BK)
6	GEN WB16K0014
9	GEN WB63K0024
10	GEN WB02K0098
10	GEN WB01K0004
10	GEN WB02K0099
12	GEN WB24K0014
13	WB2K24 GE Oven Valve Cover
14	GEN WB28K0066
15	WB21K12 GE Oven Burner Control Valve
15	GEN WB21K0020
15	GEN WB21K0021
16	WB1K5062 GE Oven Screw
16	GEN WB19K0028
17	WB20K8 GE Oven Thermostat Temperature Control
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K0186
20	GEN WB28K0187
20	GEN WB28K0188
20	GEN WB28K0189
25	GEN WB24K0003
28	WB1X1293 GE Oven Screw
38	GEN WB34K0029
39	GEN WB02K0088
108	GEN WB01X5716
136	WB15K5076 GE Oven Door Handle
146	GEN WB02K0052
214	WB19K13 GE Oven Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
221	WB7K403 GE Oven Top Door Trim
237	GEN WB28K0148
257	RANGE ONLY 40W 120V APPL BULB
271	GEN WB28K0149
321	WB1X5731D GE Oven Nut Package of 12
397	WB1K62 GE Oven Door Assembly
444	GEN WB28K0061
711	THERMOSTAT KNOB (BK)
1394	TRIM DOOR (BK)
