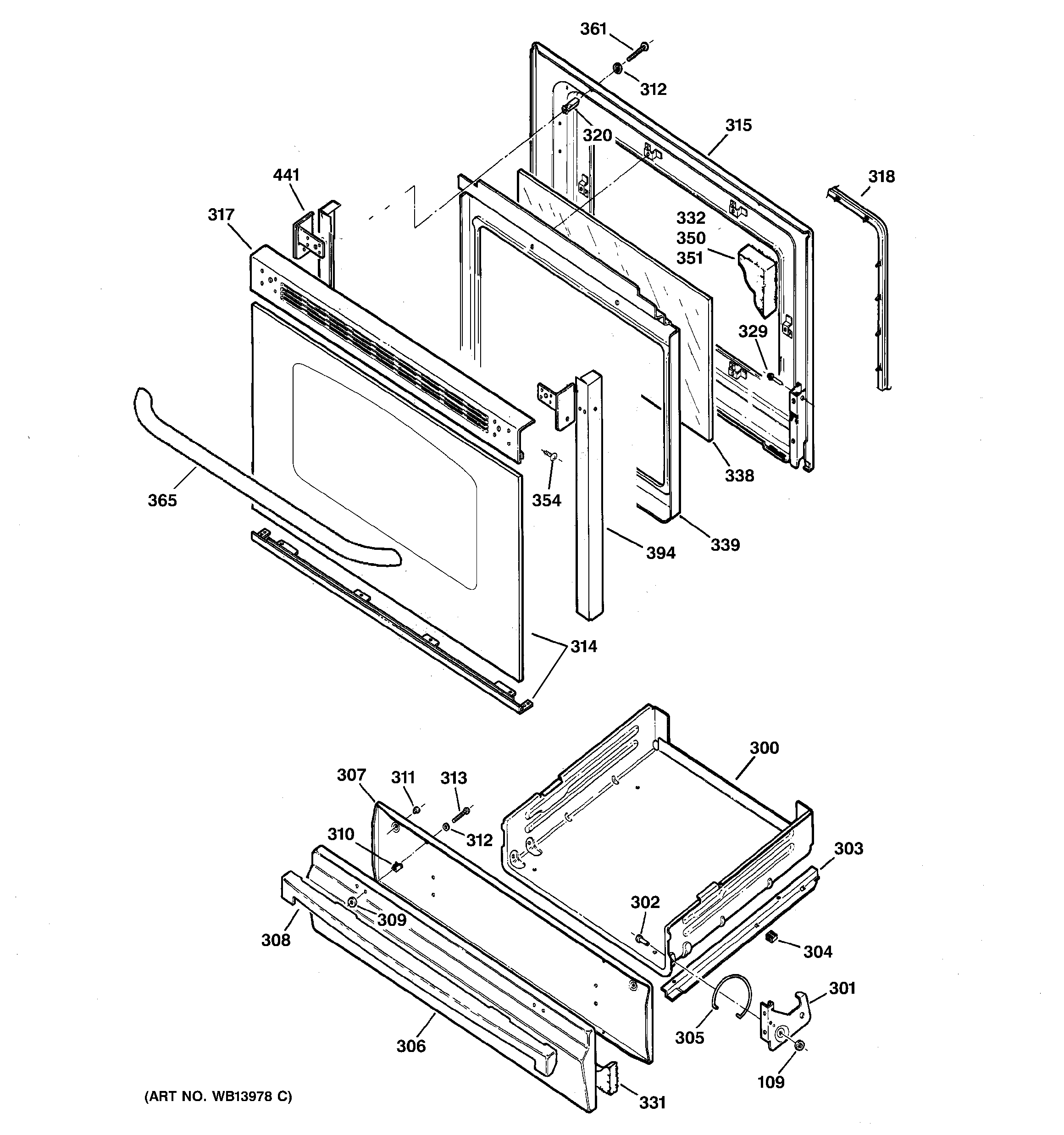

JGBS23SEL2SS DOOR & DRAWER PARTS

JGBS23SEL2SS DOOR & DRAWER PARTS

Written by

in

JGBS23SEL2SS DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB39K10023 GE Oven Panel Drawer Assembly Stainless Steel
307GEN WB39K0005
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1K63 GE Oven Screw
314GEN WB57K10114
315GEN WB55K0014
317GEN WB07K10199
317GEN WB55K0001
318WB32K10036 GE Oven Door Gasket Assembly
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0011
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
350GEN WB35K0013
351GEN WB35K0014
354WB1K62 GE Oven Door Assembly
361WB1K45 GE Oven Screw and Washer Assembly
361WB01K10070 GE Oven Screw
365GEN WB15K10061
394GEN WB35K0033
394TRIM POST BK RT
394TRIM POST BK LF
441GEN WB07X7182
441GEN WB07X7181
