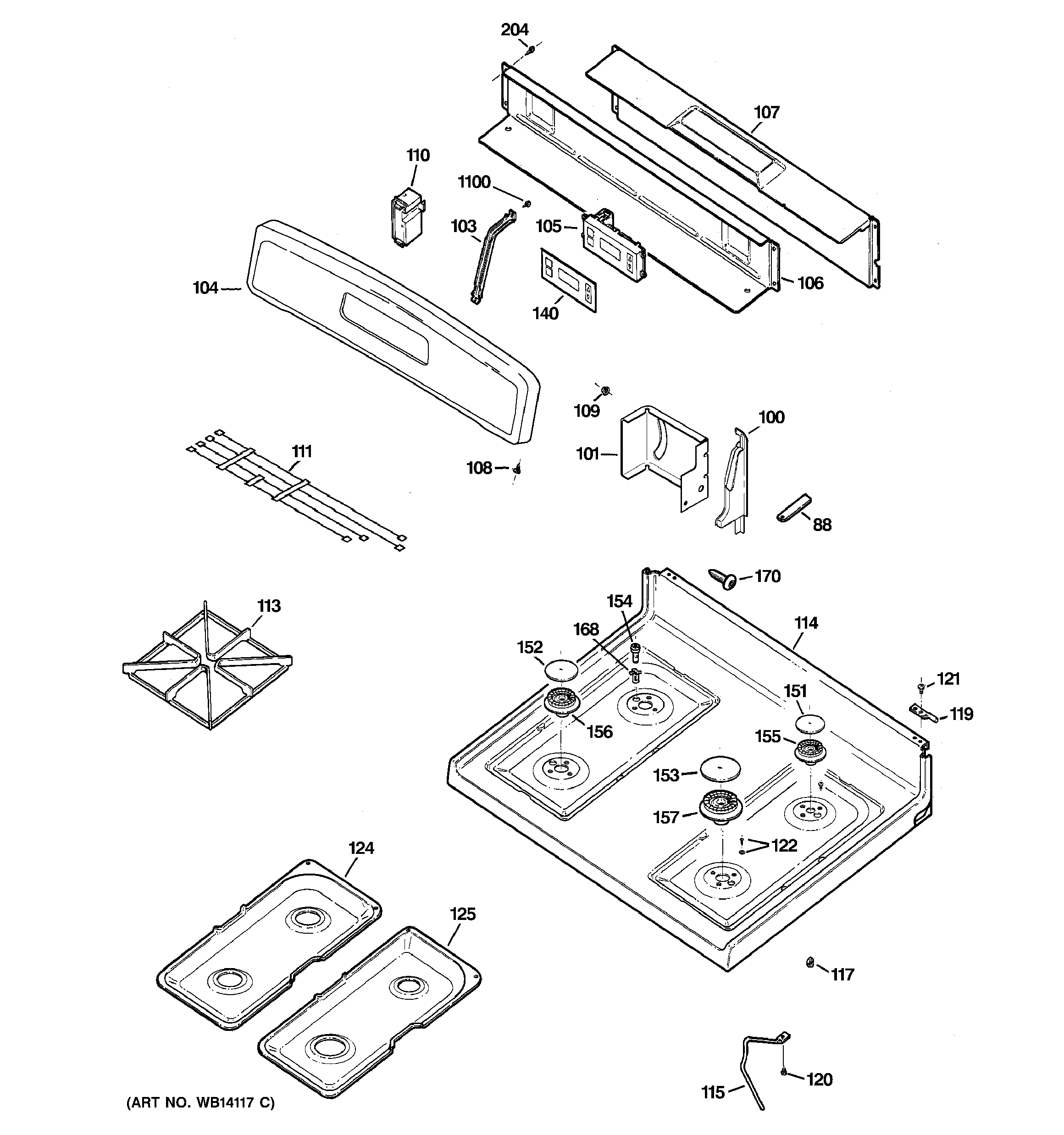

JGBS23SEM2SS CONTROL PANEL & COOKTOPadmin2025-04-26T08:44:46+00:00JGBS23SEM2SS CONTROL PANEL & COOKTOP ProductsPositionProduct88GEN WB02K006288GEN WB02K10099100GEN WB07K10261100GEN WB07K10260101WB37K10004 GE Cooktop Left Bracket101WB37K10003 GE Cooktop Right Bracket103GEN WB02K10155104GEN WB36K10715105WB27K10356 GE Oven Control Assembly106GEN WB34K10093107GEN WB34K10094108WB1X5364 GE Oven Mounting Screw109GEN WB01X5743110WB13K10029 GE Oven Spark Module111GEN WB18K10039113WB31K10033 GE Oven Burner Grate114COOKTOP BK115WB2K91 GE Oven Top Support117GEN WB02K0017119WB14K5 GE Oven Hinge Pin120WB1K45 GE Oven Screw and Washer Assembly121WB1K5119 GE Oven Screw122GEN WB01K10008124WB34K10010 GE Oven Double Burner Drip Pan Black125WB34K10009 GE Oven Double Burner Drip Pan140WB27K10255 GE Oven Overlay T09151WB29K10009 GE Oven Burner Cap152WB29K10001 GE Oven Burner Cap153WB29K10006 GE Oven Burner Cap154GEN WB13K10021155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range156WB16K10055 GE Oven Burner Base157BURNER 12K168WB01K10112 GE Range Oven Electrode Clip170GEN WB01X5716204WZ4X345D GE Screw Package 12 C92204WB1K5062 GE Oven Screw1100WB01T10016 GE Oven Screw 8-18 AB Hex
