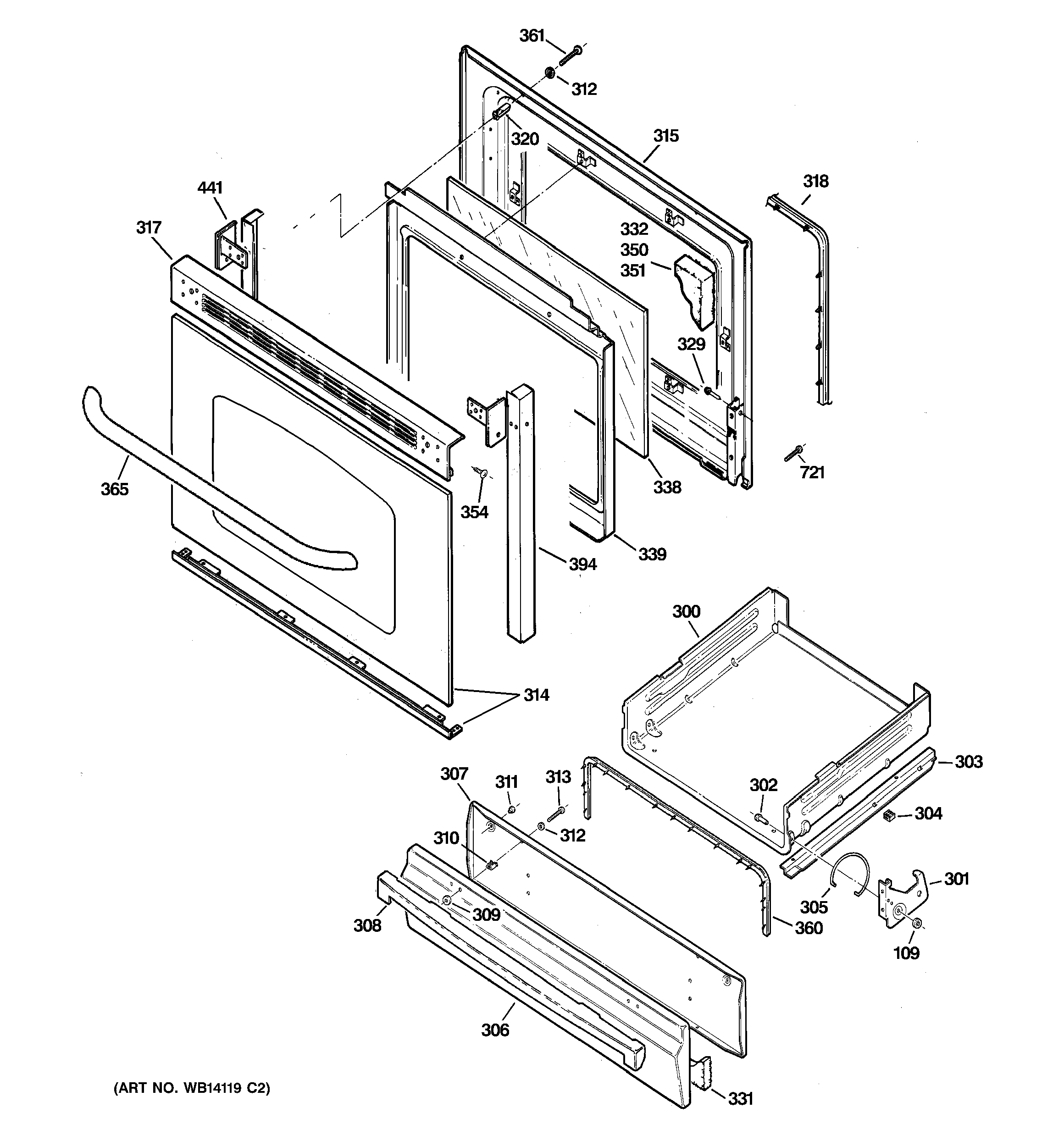

JGBS23SEM3SS DOOR & DRAWER PARTS

JGBS23SEM3SS DOOR & DRAWER PARTS

Written by

in

JGBS23SEM3SS DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB39K10023 GE Oven Panel Drawer Assembly Stainless Steel
306WB39K10 GE Oven Drawer Panel Black
307WB39K10028 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K10128 GE Oven Outer Glass Panel
315GEN WB55K10037
317WB35K10041 GE Oven Reflector
317GEN WB07K10199
318WB32K10036 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0011
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
350GEN WB35K0013
351GEN WB35K0014
354WB1K62 GE Oven Door Assembly
360GEN WB04K10023
361WB01K10074 GE Oven Screw 10-32 TT PNT
365WB15T10163 GE Oven Stainless Steel Handle
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10249
441GEN WB07X7181
441GEN WB07X7182
721WB1X536 GE Oven Screw
