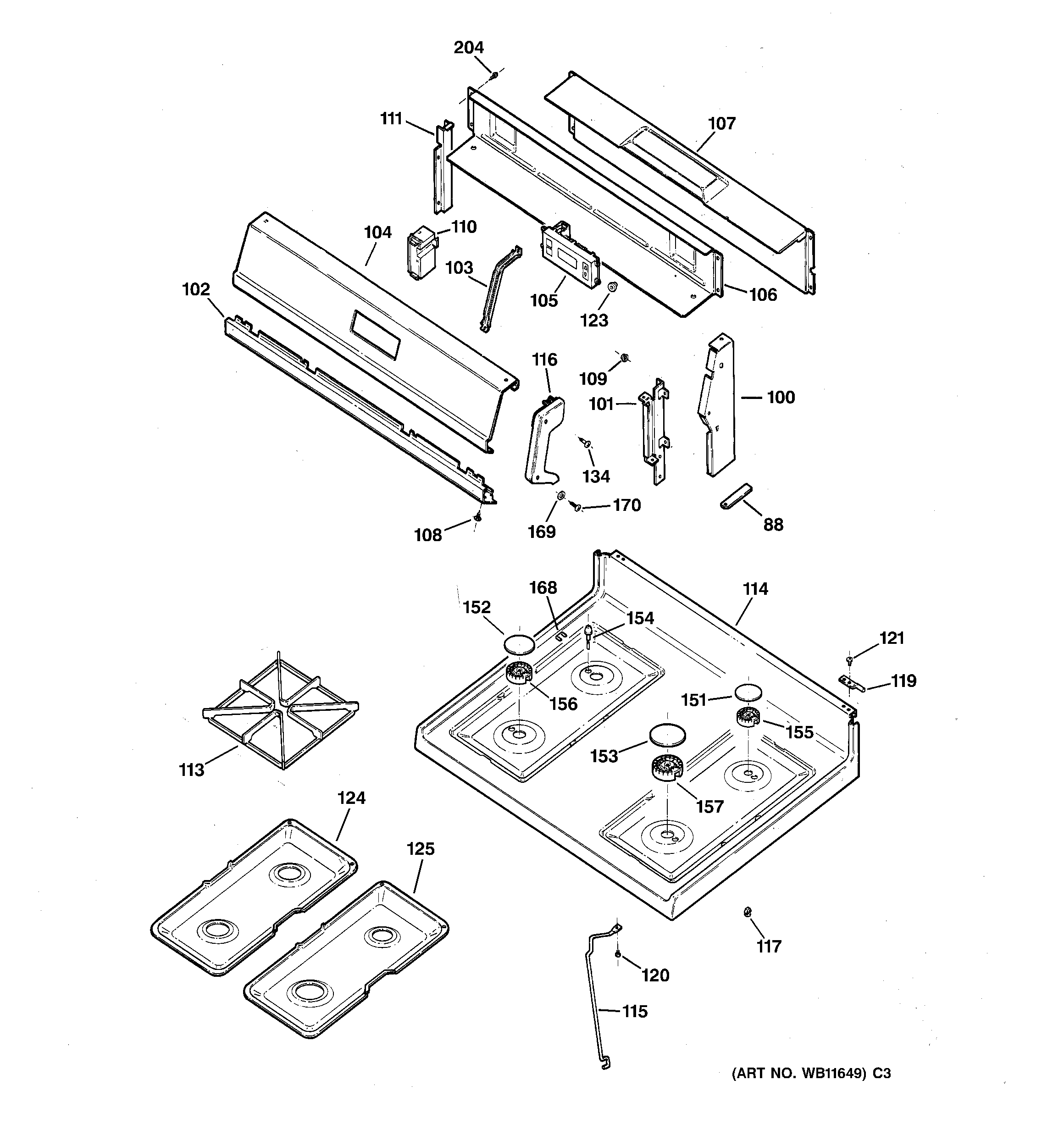

JGBS23WEV3WW CONTROL PANEL & COOKTOP

JGBS23WEV3WW CONTROL PANEL & COOKTOP

Written by

in

JGBS23WEV3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
3GEN WB28K0141
3ORIF. SPUD LP LG
3ORIF. SPUD (LP) MED.
3GEN WB28K0142
3GEN WB28K0143
3GEN WB28K0144
88GEN WB02K0085
100GEN WB07K0240
100GEN WB07K0241
101GEN WB37K0017
101GEN WB37K0018
102GEN WB07K0005
103GEN WB02K0063
104GEN WB36K0095
105WB27T10469 GE Oven Timer Control Board
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110HARNESS HV
110GEN WB13K0025
111GEN WB34K0005
113GEN WB31K10173
114GEN WB62K0026
115GEN WB06K0008
116GEN WB07K0313
116GEN WB07K0312
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
123GEN WB01K0079
124GEN WB32K0012
125GEN WB32K0011
134GEN WB01K0076
151GEN WB29K0042
152GEN WB29K0045
153CAP BURNER LG (GRAY)
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157BURNER HEAD-LG
168ELECTRODE CLIP
169GEN WB01K0057
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
