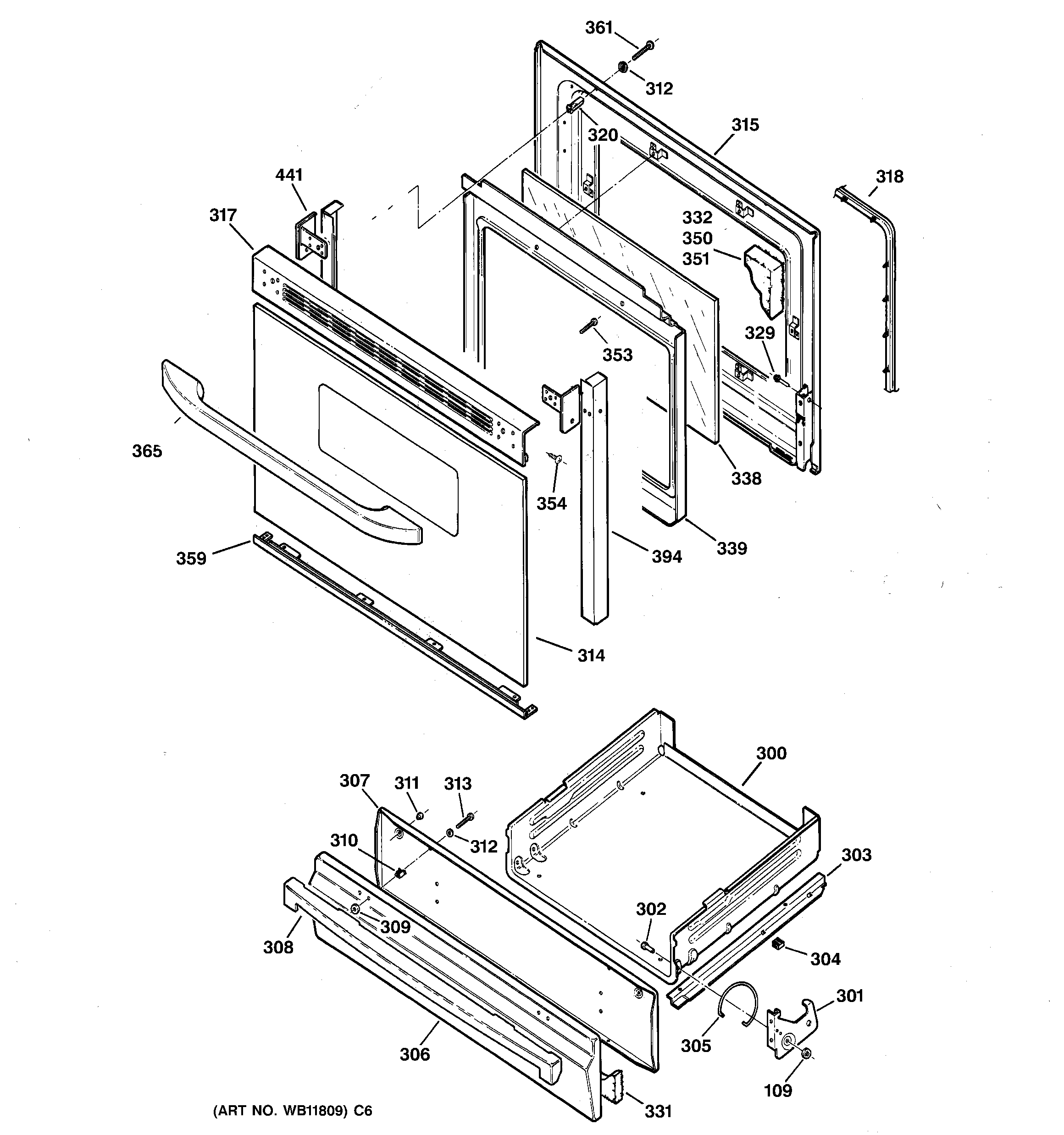

JGBS24BEH5CT DOOR & DRAWER PARTS

JGBS24BEH5CT DOOR & DRAWER PARTS

Written by

in

JGBS24BEH5CT DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB55K10010 GE Drawer Panel Bisque
307GEN WB39K0005
308WB15K10029 GE Oven Broil Handle (Bisque)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1K63 GE Oven Screw
314GEN WB57K10100
315GEN WB55K0014
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0011
338GEN WB56K0014
339GEN WB56K0015
350GEN WB35K0013
351GEN WB35K0014
353WB1K67 GE Oven Screw 8-22
353WB1X536 GE Oven Screw
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
361GEN WB01K0069
365HANDLE ASM
394TRIM POST BK LF
394TRIM POST BK RT
441GEN WB07X7181
441GEN WB07X7182
