JGBS24BEH5WH GAS & BURNER PARTS

JGBS24BEH5WH GAS & BURNER PARTS

Written by

in

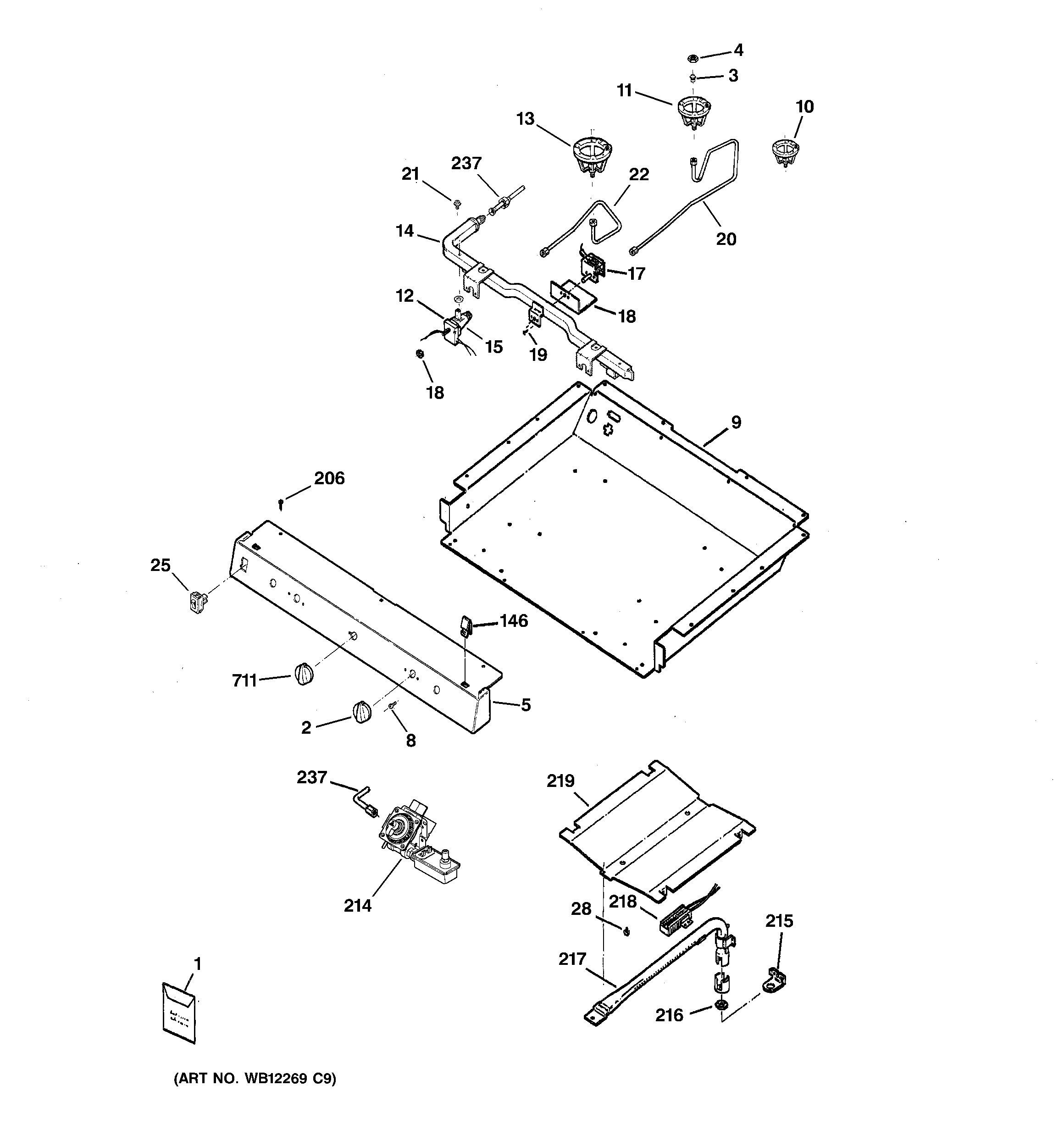

JGBS24BEH5WH GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21156
1GEN 49-85053
1GEN WB28K10174
2WB03K10141 GE Oven Mini Valve Knob
3WB28K10029 GE Oven Natural Gas Orifice
3WB28K10030 GE Oven Natural Gas Orifice
3ORIFICE-NG MED 1.50MM
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10335
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10244
15GEN WB21K10042
15GEN WB21K10043
15GEN WB21K10041
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20REAR ORIFICE HOLDER RG
20REAR ORIFICE HOLDER LF
21WB1K83 GE Oven Screw
22FRONT ORIFICE HOLDER RG
22FRONT ORIFICE HOLDER LF
25GEN WB24K0003
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WR01X10065 GE Screw
214KIT VALVE & REGULATOR LP
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K10013 GE Oven Burner Igniter Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10109
711WB03K10206 GE Oven Knob Assembly Thermostat
