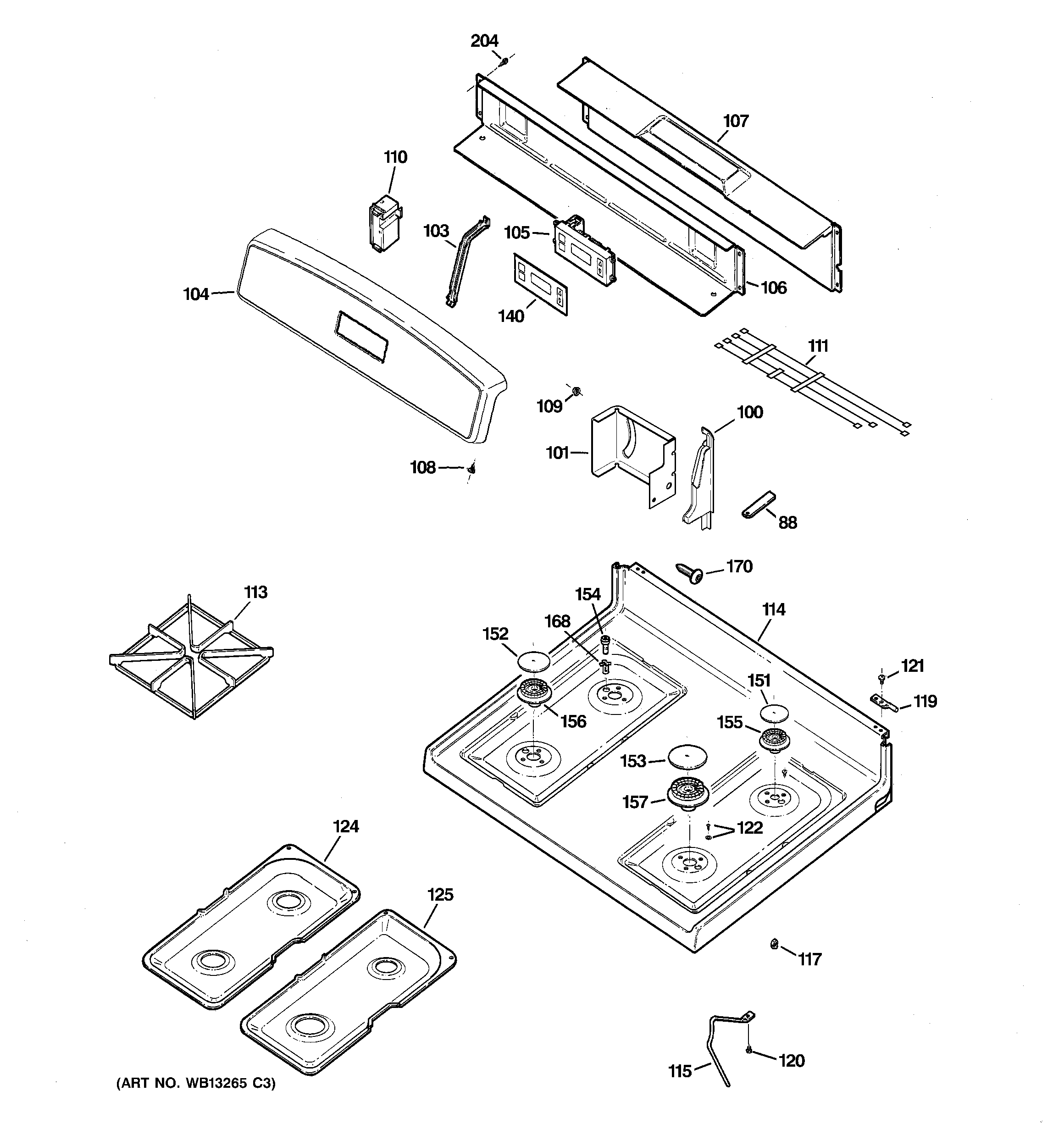

JGBS24DEM1CC CONTROL PANEL & COOKTOP

JGBS24DEM1CC CONTROL PANEL & COOKTOP

Written by

in

JGBS24DEM1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10098
88GEN WB02K0062
100GEN WB07K10270
100GEN WB07K10271
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104GEN WB36K10672
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
109GEN WB01X5743
110WB18K10042 GE Oven Harness Module
110WB13X42446 GE Spark Module Replacement Kit
111GEN WB18K10039
113WB31X36766 GE Bisque Grate Replacement Kit
114COOKTOP (BSQT)
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124DOUBLE TAUPE PORC PAN LEFT SIDE-GAS
125DOUBLE TAUPE PORC PAN RIGHT SIDE-GAS
140GEN WB27K10266
151CAP-BURNER SMALL TAUPE
152CAP-BURNER MED TAUPE
153WB29X36765 GE Large Cap Burner Taupe Rep
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170WB1X5364 GE Oven Mounting Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
