JGBS24DEM3CC CONTROL PANEL & COOKTOP

JGBS24DEM3CC CONTROL PANEL & COOKTOP

Written by

in

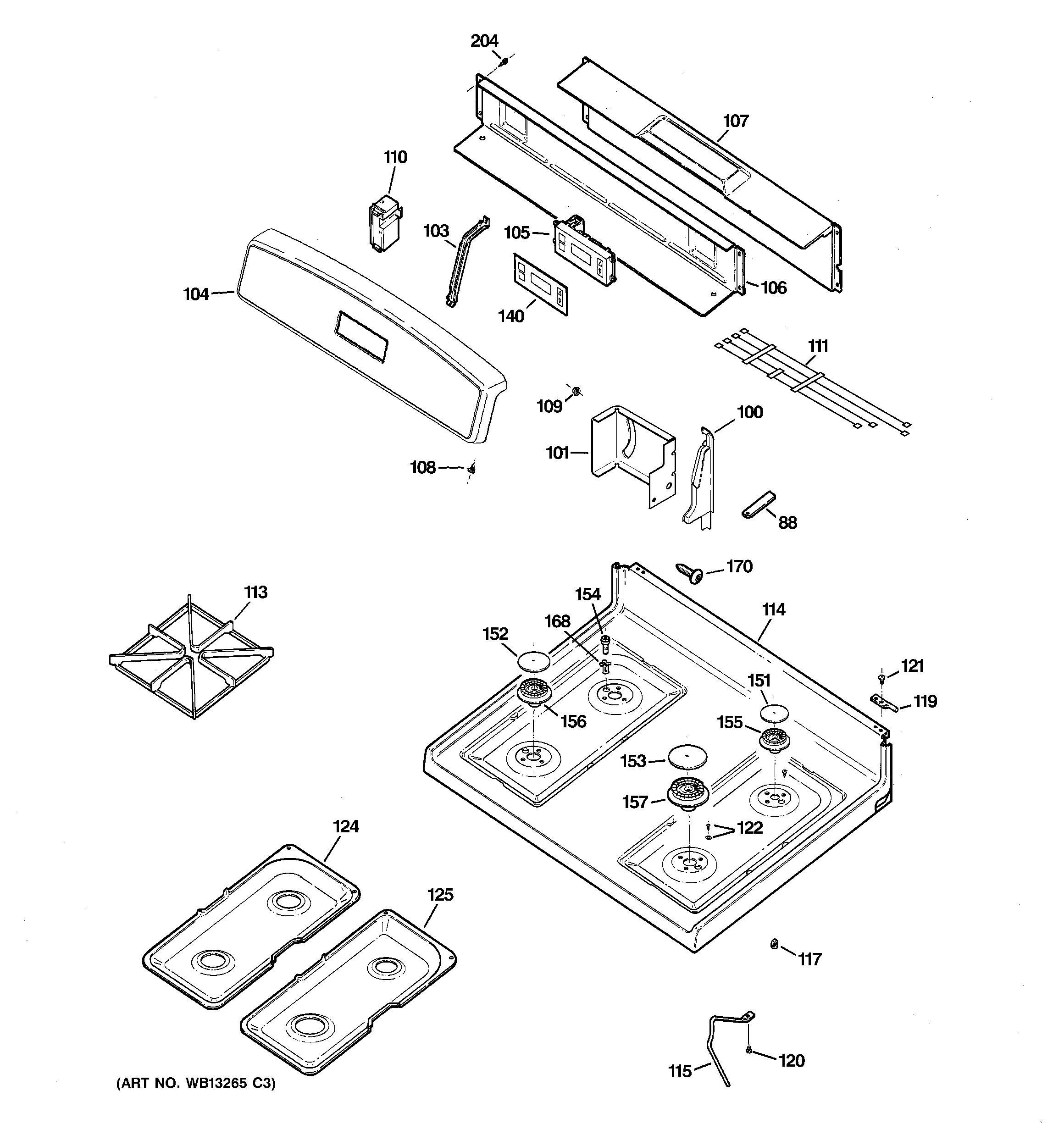

JGBS24DEM3CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10098
88GEN WB02K0062
100GEN WB07K10265
100GEN WB07K10266
100GEN WB07K10270
100GEN WB07K10271
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10672
104GEN WB36K10653
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
113WB31X36766 GE Bisque Grate Replacement Kit
113WB31K10035 GE Oven Grate Gray
114COOKTOP (BSQT)
114GEN WB62K10048
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124DOUBLE TAUPE PORC PAN LEFT SIDE-GAS
124WB34K10014 GE Oven Left Pan Unit
125DOUBLE TAUPE PORC PAN RIGHT SIDE-GAS
125WB34K10013 GE Right Oven Pan Unit
140GEN WB27K10266
140WB27K10256 GE Oven Overlay T09
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151CAP-BURNER SMALL TAUPE
152CAP-BURNER MED TAUPE
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
153WB29X36765 GE Large Cap Burner Taupe Rep
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
170WB1X5364 GE Oven Mounting Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
