JGBS24DEM3CC GAS & BURNER PARTS

JGBS24DEM3CC GAS & BURNER PARTS

Written by

in

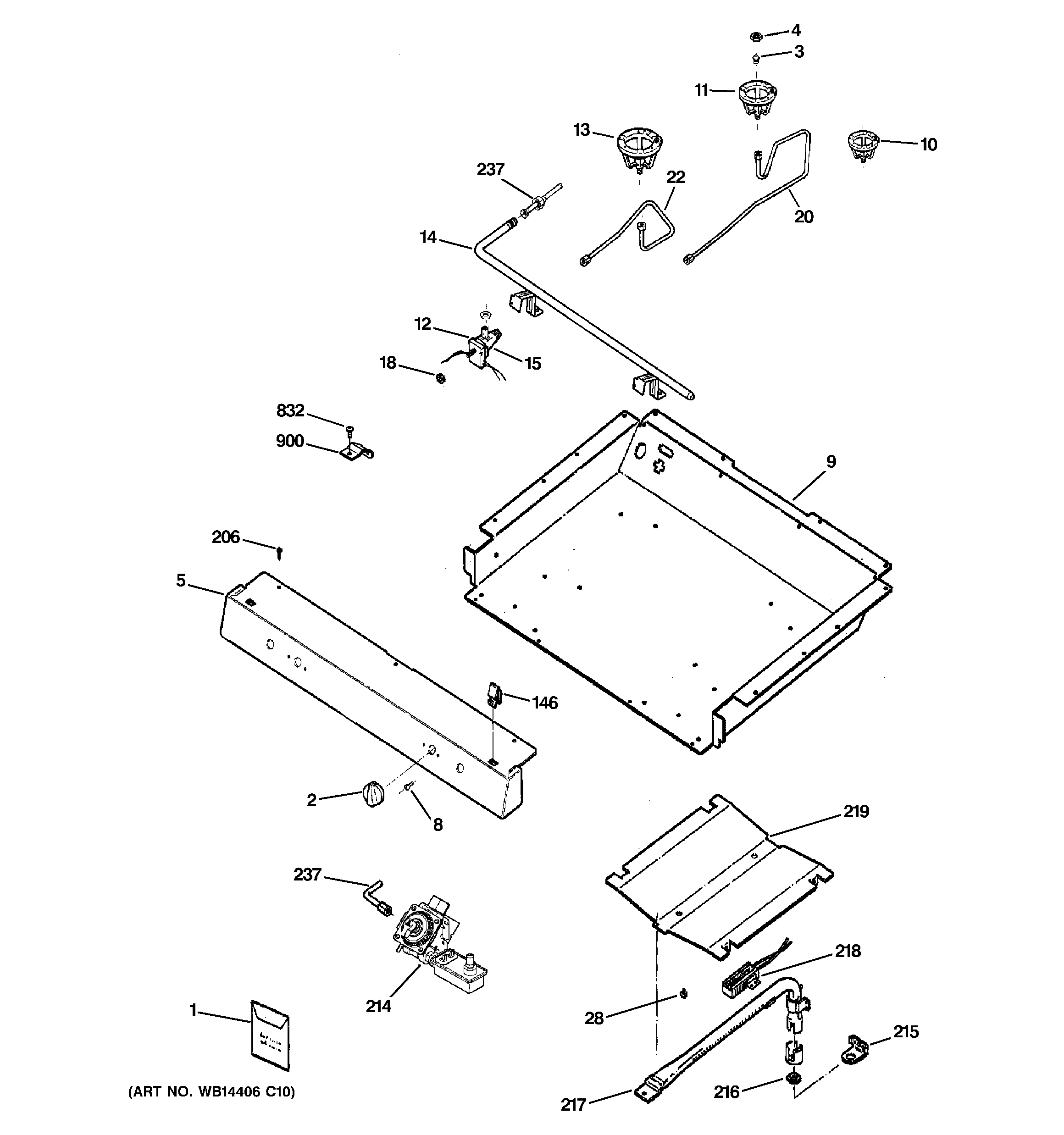

JGBS24DEM3CC GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10574
1GEN 31-21408
1GEN 49-85053
1GEN 31-21324
2GEN WB03K10225
2WB03K10218 GE Oven Control Knob
3WB28K10029 GE Oven Natural Gas Orifice
3ORIFICE-NG MED 1.50MM
3WB28K10030 GE Oven Natural Gas Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10673
5GEN WB36K10674
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10037
12WB24K10042 GE Oven Rotary Switch
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10573
15GEN WB28K10399
15GEN WB28K10398
15GEN WB28K10400
18WB2K24 GE Oven Valve Cover
20REAR ORIFICE HOLDER RG
20REAR ORIFICE HOLDER LF
22FRONT ORIFICE HOLDER LF
22FRONT ORIFICE HOLDER RG
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214KIT VALVE & REGULATOR LP
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10109
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
