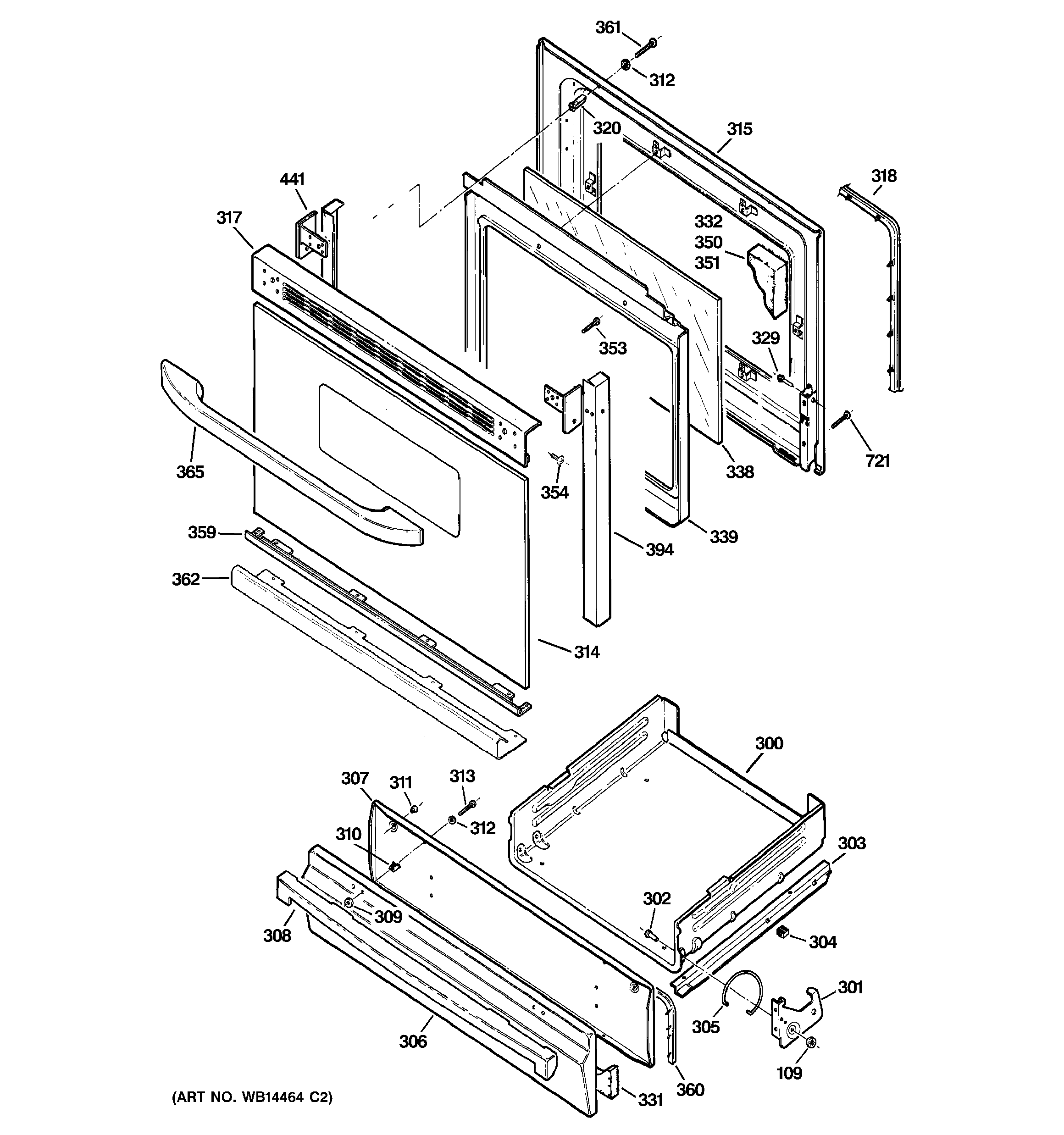

JGBS24DEM4CC DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10029 GE Oven Broiler Pan Slide
303WB39K10030 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB56X21199 GE Oven Drawer Panel
306WB55K10010 GE Drawer Panel Bisque
307WB39K10028 GE Oven Drawer Liner
308WB15K10008 GE Oven Broil Handle
308WB15K10029 GE Oven Broil Handle (Bisque)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K10110 GE Oven Glass Door
314GEN WB57K10112
315GEN WB55K10037
317WB36K10212 GE Top Door Trim (Bisque)
317GEN WB07K0400
318WB32K10036 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
359WB07K10269 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
360GEN WB04K10023
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
361WB1K63 GE Oven Screw
362GEN WB07K10342
365WB15K10096 GE White Oven Handle
365GEN WB15K10097
394GEN WB07K10253
394GEN WB07K10254
394GEN WB07K10272
394GEN WB07K10273
441WB7X7188 GE Oven Left Endcap
441GEN WB07K10129
441GEN WB07K10128
441GEN WB07X7187
721WB1X536 GE Oven Screw
