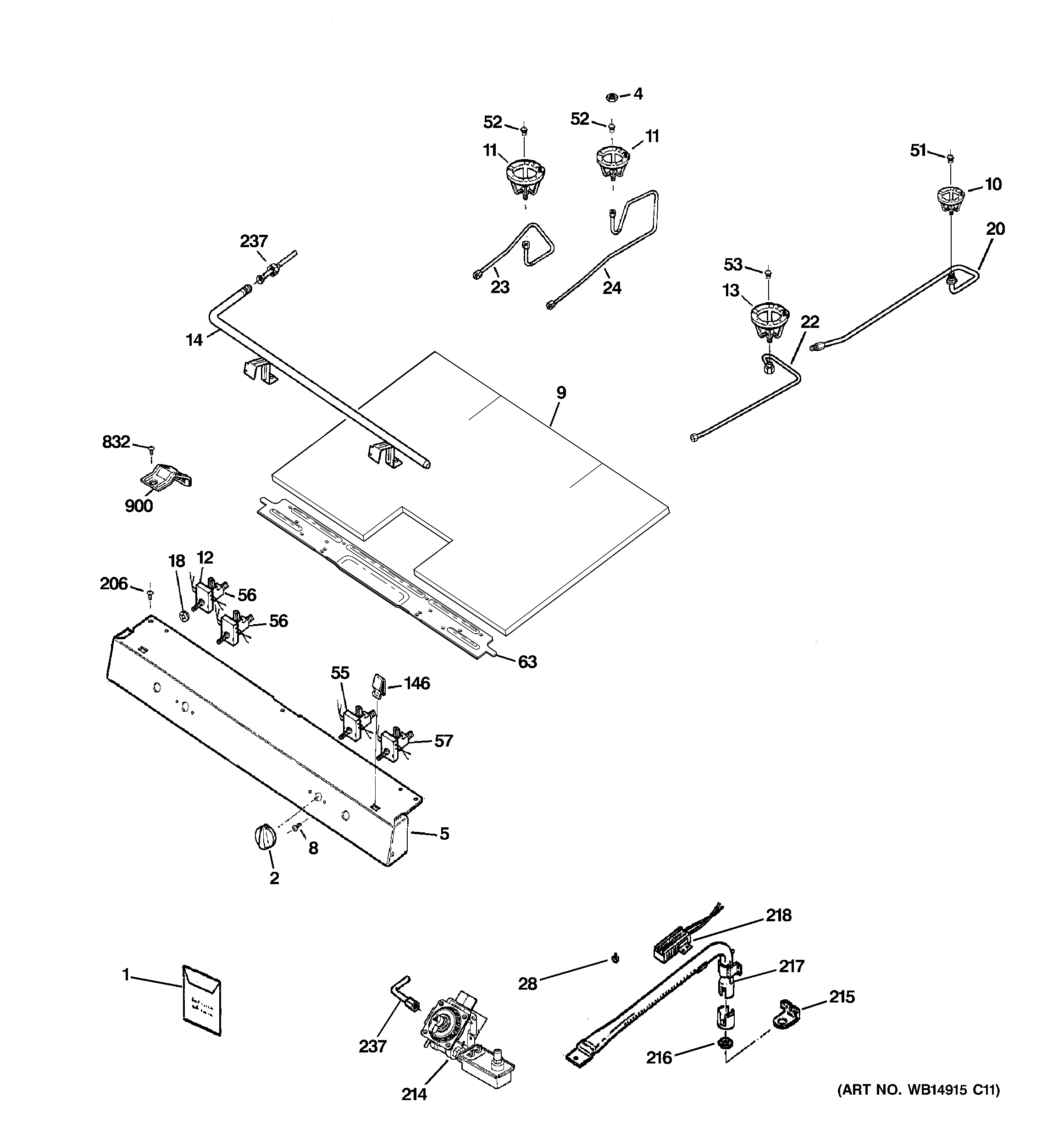

JGBS24DEM5CC GAS & BURNER PARTS

JGBS24DEM5CC GAS & BURNER PARTS

Written by

in

JGBS24DEM5CC GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-14929
1GEN WB28K10574
1GEN 49-85149
1GEN 31-21408
2GEN WB03K10225
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10673
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10037
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10457 GE Oven Manifold Pipe
18WB2K24 GE Oven Valve Cover
20REAR ORIFICE HOLDER RG
22FRONT ORIFICE HOLDER RG
23FRONT ORIFICE HOLDER LF
24REAR ORIFICE HOLDER LF
28WB1X1293 GE Oven Screw
51WB28K10029 GE Oven Natural Gas Orifice
52ORIFICE-NG MED 1.50MM
53WB28K10030 GE Oven Natural Gas Orifice
55GEN WB28K10400
56GEN WB28K10399
57GEN WB28K10398
63WB34X20680 GE Support Manifold
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214GEN WB19K10045
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY ASSEMBLY
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
