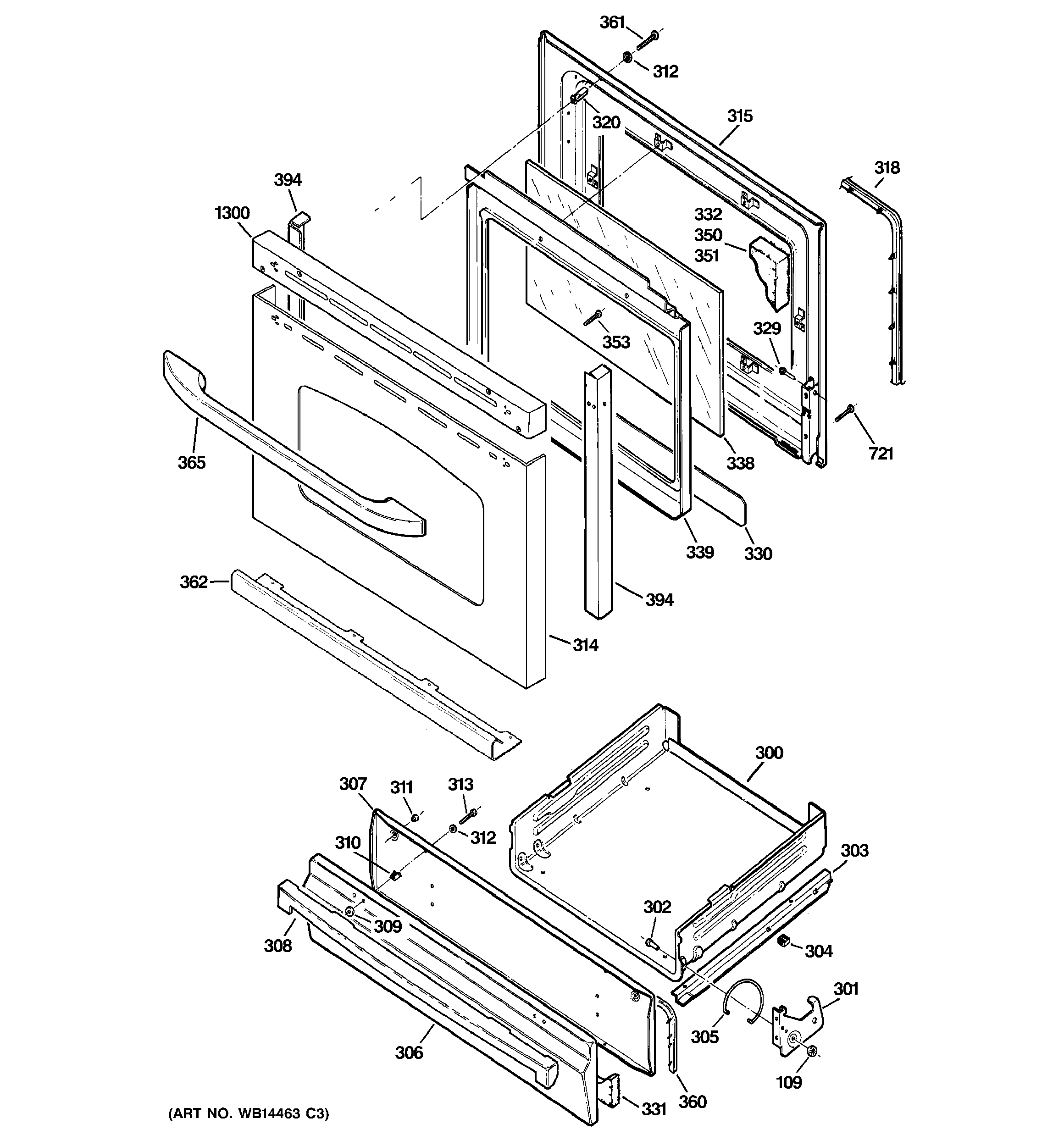

JGBS24GEM4SS DOOR & DRAWER PARTS

JGBS24GEM4SS DOOR & DRAWER PARTS

Written by

in

JGBS24GEM4SS DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10029 GE Oven Broiler Pan Slide
303WB39K10030 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB39K10023 GE Oven Panel Drawer Assembly Stainless Steel
307WB39K10028 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314GEN WB57K10119
315GEN WB55K10037
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
330GEN WB35K0022
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
353WB01K10070 GE Oven Screw
360GEN WB04K10023
361WB01K10074 GE Oven Screw 10-32 TT PNT
362GEN WB07K10342
365WB15T10163 GE Oven Stainless Steel Handle
394GEN WB07K10019
394GEN WB07K10016
721WB1X536 GE Oven Screw
