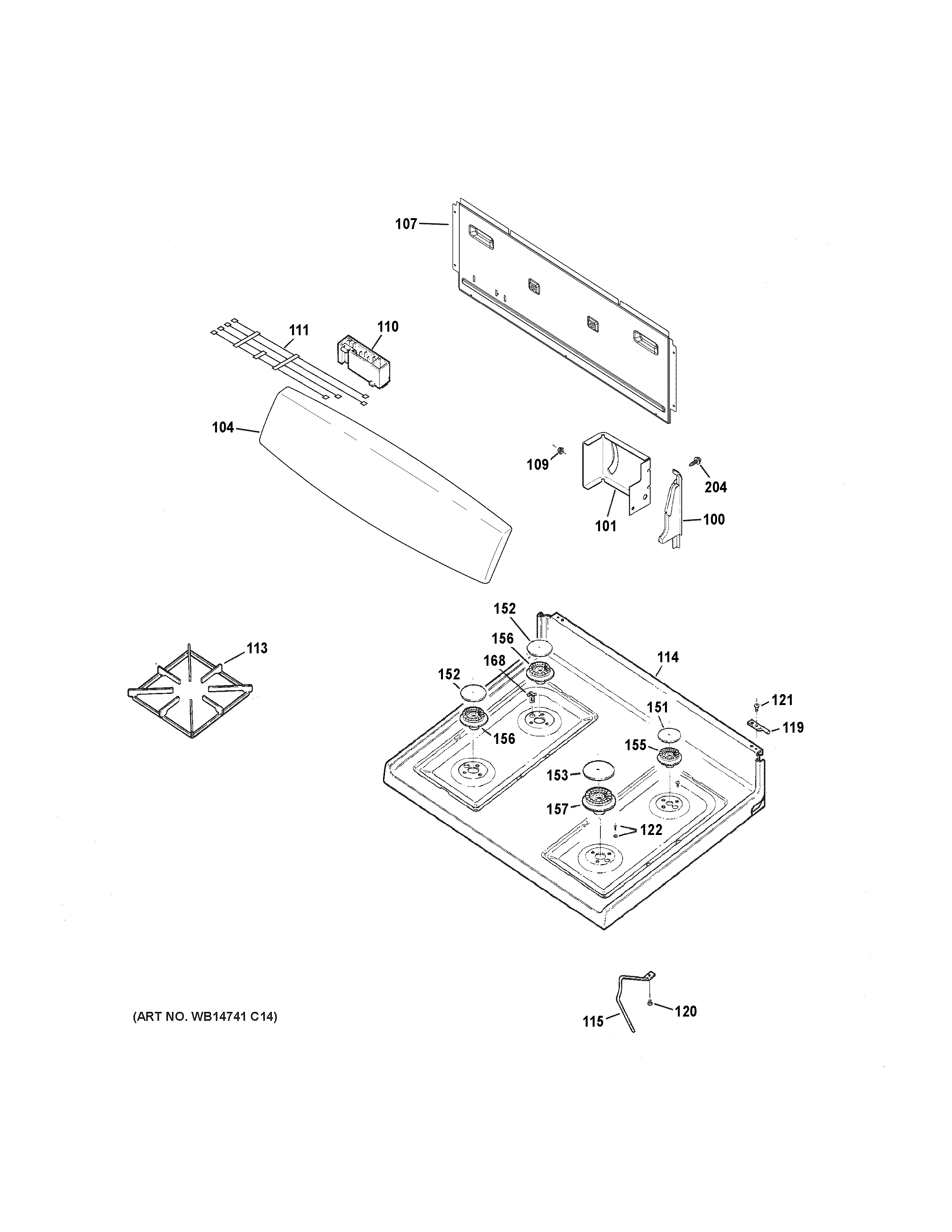

JGBS30REK1SS CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07X20197 GE Range Left End Support
100	WB07X20194 GE Range Right End Support
101	WB37X20193 GE Cooktop Bracket
101	WB37X20196 GE Cooktop Bracket
104	WB36X26252 GE Oven Trim and Panel Assembly
107	WB34X20669 GE Back Cover Assembly
109	GEN WB01X5743
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
113	WB31K10033 GE Oven Burner Grate
114	WB62X26321 GE Range Top
115	WB02K10276 GE Cooktop Support
119	WB14K5 GE Oven Hinge Pin
120	WB01K10043 GE Oven Screw
121	WB1K5119 GE Oven Screw
122	WB01X24735 GE Oven CKT Screw
151	WB16X29450 GE Range Small Burner Cap V2
152	WB29K10001 GE Oven Burner Cap
153	WB29K10006 GE Oven Burner Cap
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	BURNER LARGE V2
168	WB02X24976 GE Oven Igniter Clip V2
204	WB1K5062 GE Oven Screw
