JGBS60DEK5CC CONTROL PANEL & COOKTOP

JGBS60DEK5CC CONTROL PANEL & COOKTOP

Written by

in

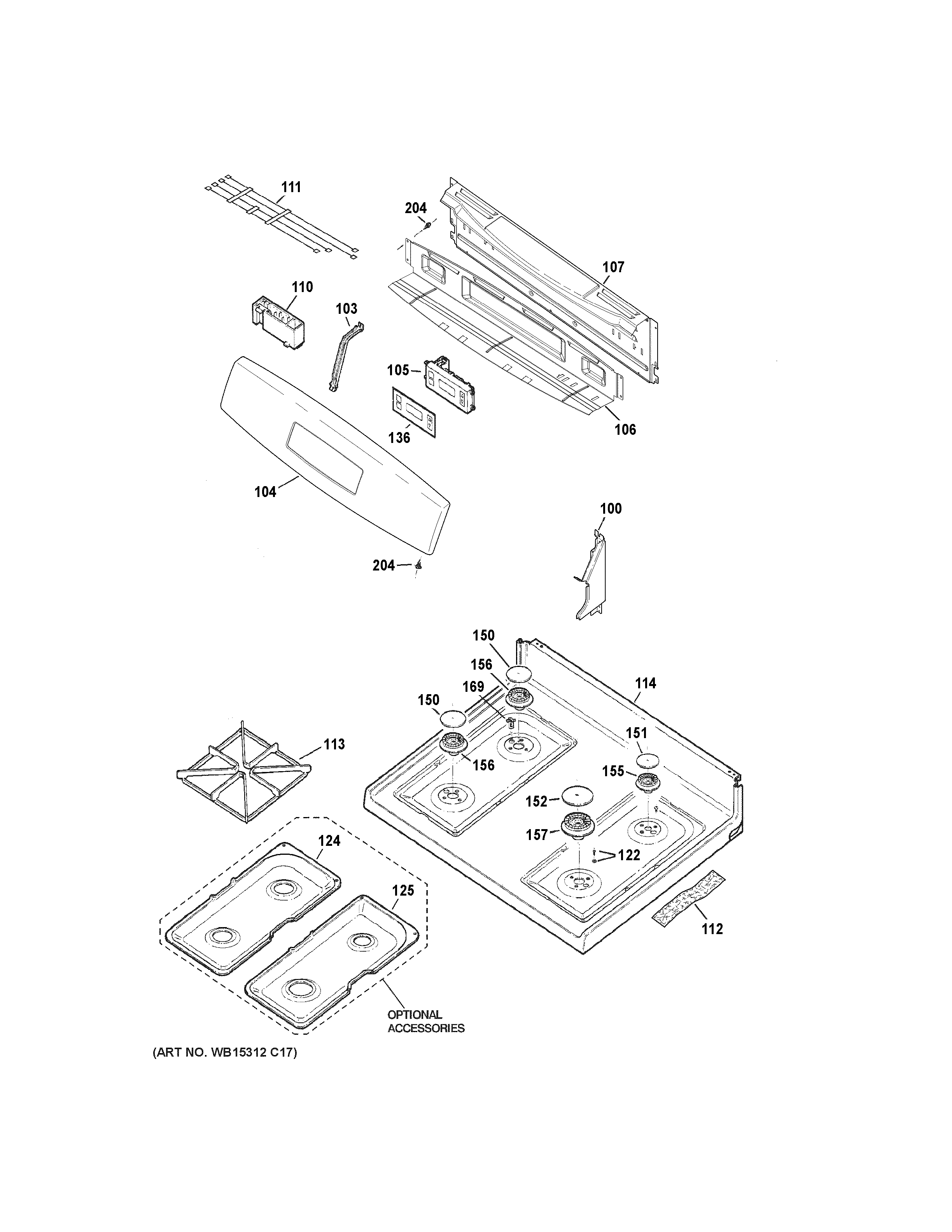

JGBS60DEK5CC CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT
100WB07X20269 GE Range Right End Support
103WB02K10150 GE Oven Control Bracket
104WB07X20342 GE Oven Control Trim
105CONTROL OVEN TO9 (GAS)
106WB34X26858 GE Oven Upper Back Cover
107WB34K10129 GE Lower Back Cover
110WB13X24323 GE Oven Ignition Module
111WB18X26607 GE Oven Spark Electrode
112FOIL COOKTOP
113WB31X20643 GE Oven Burner Grate
114BISQUE RANGE TOP
122WB01X24735 GE Oven CKT Screw
124DOUBLE TAUPE PORC PAN RIGHT SIDE-GAS
125DOUBLE TAUPE PORC PAN LEFT SIDE-GAS
136WB07X26698 GE Oven Overlay T09
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152WB29K10024 GE Burner Cap Oven
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156WB16X24724 GE Oven Medium Burner
157BURNER LARGE V2
169WB02X24976 GE Oven Igniter Clip V2
204GEN WB01X5874
204WB1K5062 GE Oven Screw
