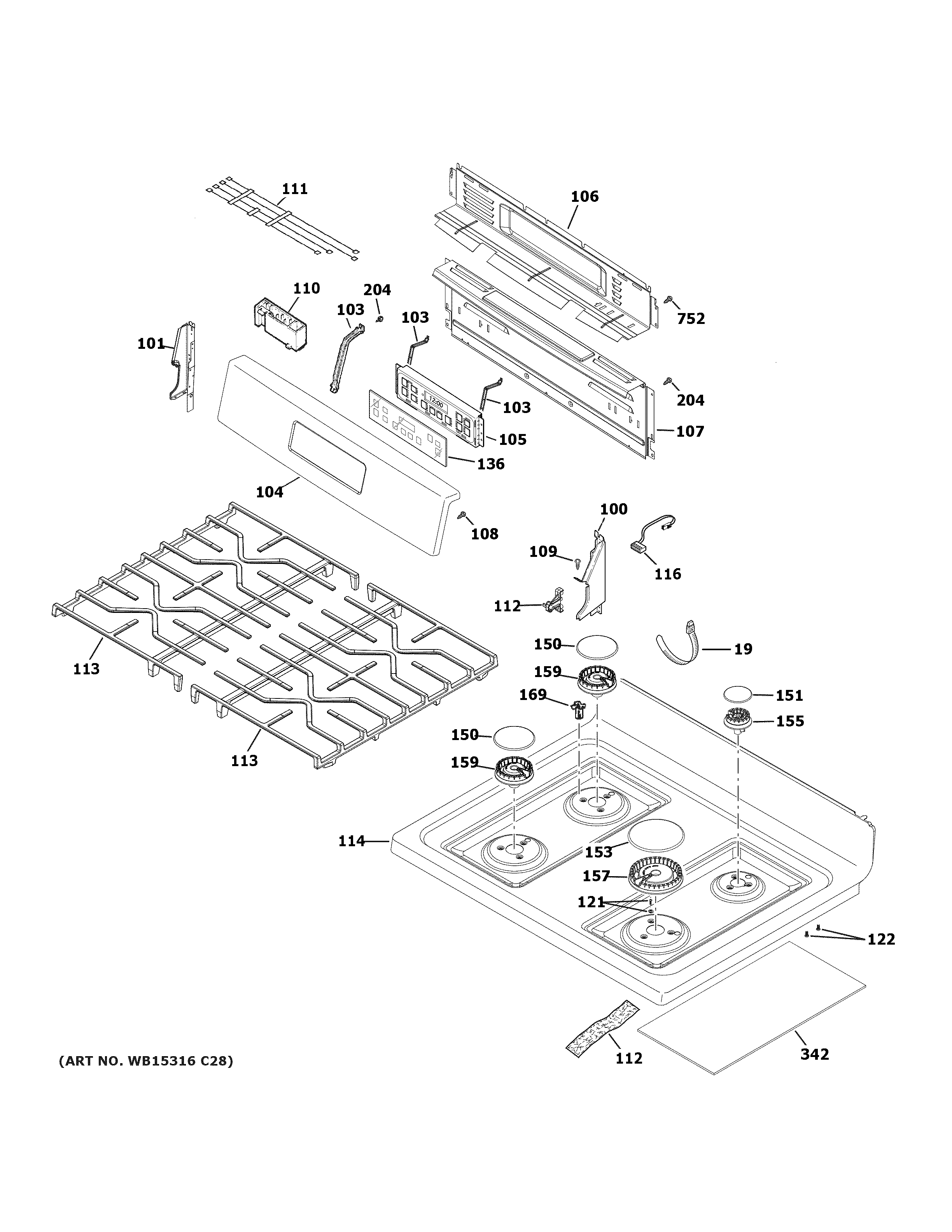

JGBS61DP1WW CONTROL PANEL & COOKTOP

JGBS61DP1WW CONTROL PANEL & COOKTOP

Written by

in

JGBS61DP1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
19BLACK CABLE TIE 5 1/2 LO
100WB07X24791 GE Range Right End Support
101WB07X24792 GE Range Left End Support
103WB02X24845 GE Range Control Bracket
104WB36X25205 GE Backguard
105CONTROL OVEN TO9 (GAS)
106WB34X24851 GE Upper Back Oven Cover
107WB34X24746 GE Oven Back Cover Lower
108GEN WB01X5874
109WB01X31119 GE Screw 8-18
110WB13X24323 GE Oven Ignition Module
111WB18X26607 GE Oven Spark Electrode
112FOIL COOKTOP
112WB14K10003 GE Range Top Hinge
113WB31X36584 GE Top Grate
114WHITE RANGETOP & BRKT
116WB18X32406 GE Control Harness
121WB01X24735 GE Oven CKT Screw
122WB1K84 GE Oven Screw and
136WB07X26699 GE Oven Overlay T09
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
153WB29K10024 GE Burner Cap Oven
155WB16X24721 GE Oven Range Small Cooktop Burner V2
157BURNER LARGE V2
159WB16X24724 GE Oven Medium Burner
169WB02X24976 GE Oven Igniter Clip V2
204WB1K5062 GE Oven Screw
342WB35X26892 GE Oven Side Panel Foil
752WZ4X345D GE Screw Package 12 C92
