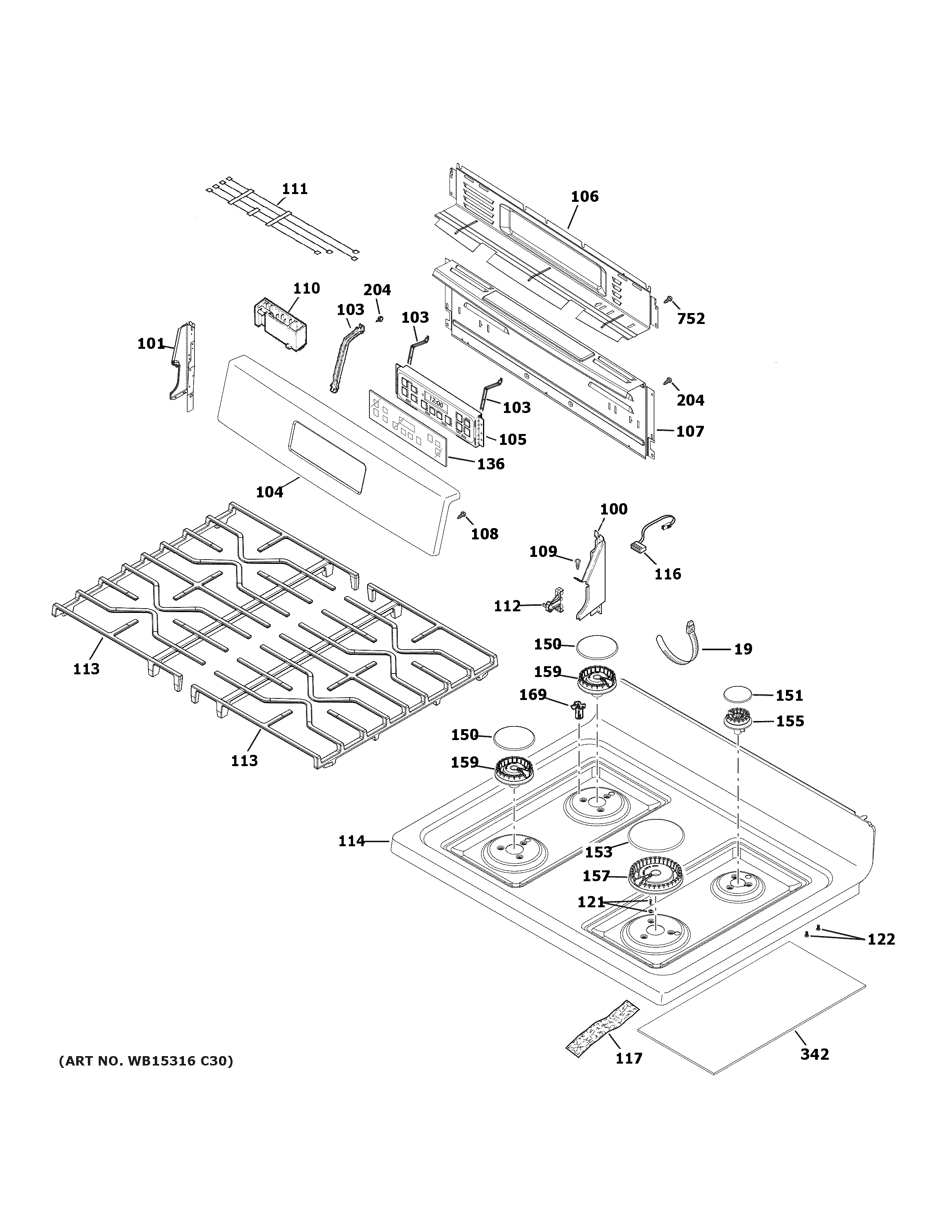

JGBS61DP4BB CONTROL PANEL & COOKTOP

Products

Position	Product
19	BLACK CABLE TIE 5 1/2 LO
100	WB07X24733 GE Range Right End Support
101	WB07X24732 GE Range Left End Support Black
103	WB02X24845 GE Range Control Bracket
104	WB36X25198 GE Range Backguard
105	CONTROL OVEN TO9 (GAS)
106	WB34X24851 GE Upper Back Oven Cover
107	WB34X24746 GE Oven Back Cover Lower
108	GEN WB01X5716
109	WB01X31119 GE Screw 8-18
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
112	WB14K10003 GE Range Top Hinge
113	WB31X36584 GE Top Grate
114	WB62X36582 GE Range Top and Bracket Black
116	WB18X32406 GE Control Harness
117	FOIL COOKTOP
121	WB01X24735 GE Oven CKT Screw
122	WB1K84 GE Oven Screw and
136	WB07X34957 GE Overlay T09
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
153	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
157	BURNER LARGE V2
159	WB16X24724 GE Oven Medium Burner
169	WB02X24976 GE Oven Igniter Clip V2
204	WB1K5062 GE Oven Screw
342	WB35X26892 GE Oven Side Panel Foil
752	WZ4X345D GE Screw Package 12 C92
