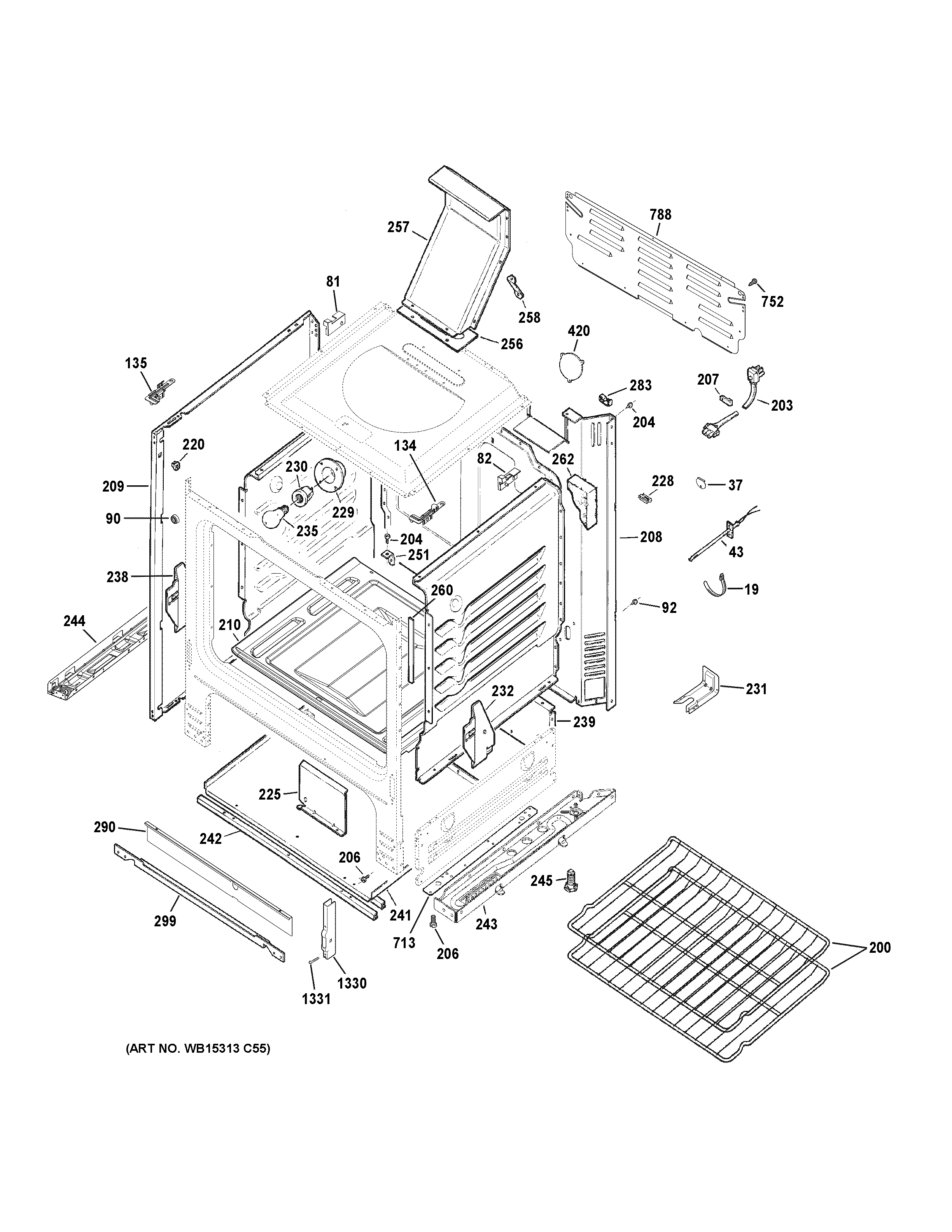

JGBS61DP4WW BODY PARTS

JGBS61DP4WW BODY PARTS

Written by

in

JGBS61DP4WW BODY PARTS

Products

PositionProduct
19BLACK CABLE TIE 5 1/2 LO
37WB34X24753 GE Igniter Cover
43TEMPERATURE SENSOR
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
134BRACKET MANIFOLD SIDE RIGHT
135BRACKET MANIFOLD SIDE LEFT
200OVEN RACK
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63X20207 GE Back Panel
209WB56X29122 GE Oven Side Panel
210WB35X37973 GE Oven Bottom and Deflector Assembly
220GEN WB02K0008
225GEN WB34K0002
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0003
235RANGE ONLY 40W 120V APPL BULB
238GEN WB34K0004
239PANEL REAR BROIL
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
251WB2K3 GE Angle Support
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
260WB32K2 GE Oven Gasket Seal
262WB35K16 GE Oven Back Insulation
283WB02X21679 GE Oven Wire Clip
290GEN WB34K0012
299SUPPORT BRKT
420GEN WB34K0016
713WB39K33 GE Support
752WZ4X345D GE Screw Package 12 C92
788WB34X21575 GE Oven Back Cover
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
