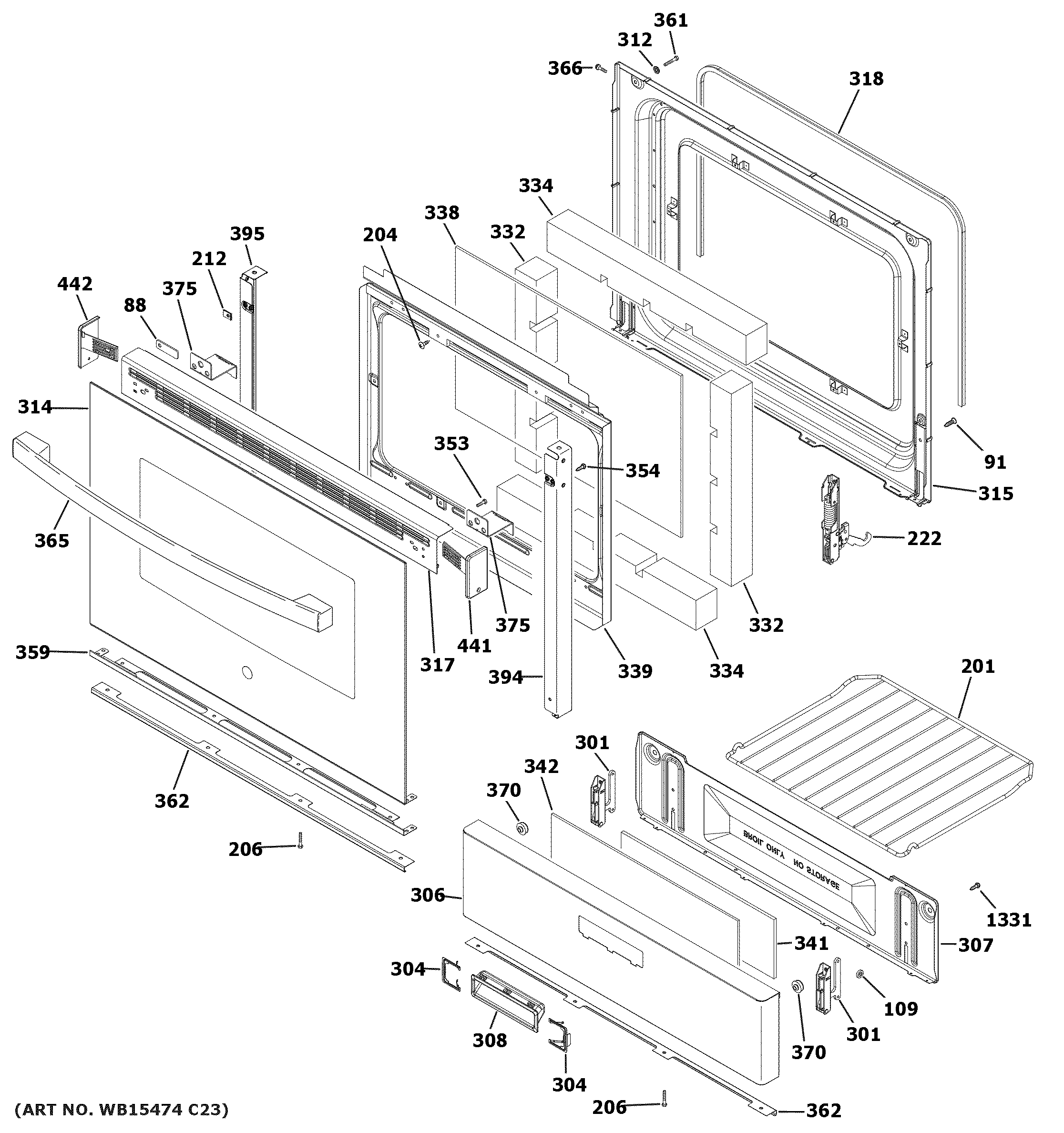

JGBS61DP4WW DOOR & DRAWER PARTS

JGBS61DP4WW DOOR & DRAWER PARTS

Written by

in

JGBS61DP4WW DOOR & DRAWER PARTS

Products

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
109WB01X31119 GE Screw 8-18
201WB48X26677 GE Oven Rack
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
212WB01K10093 GE Oven Speednut
222WB10X21809 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X26688 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26670 GE Broil Handle
312WB02X32440 GE Washer Contoured
314WB56X21369 GE Oven Glass Door
315WB56X20206 GE Range Door Panel
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29720 GE Oven Door Gasket
332WB35K10146 GE Door Side Insulation
334WB35K10147 GE Oven Bottom Insulation Door
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
353GEN WB01K0078
354WB1K62 GE Oven Door Assembly
359TRIM BOTTOM ASM
361WB02X32442 GE Screw 10-24
362WB07X20288 GE Oven Barrier Door
365WB15X35075 GE White Handle and End Cap
366WB1X536 GE Oven Screw
370WB02X28737 GE Oven Front Frame Bumper
375WB02K10245 GE Oven Door Bracket
394WB07X23481 GE Oven Right Trim Post
395WB07X23480 GE Left Trim Post
441WB7K266 GE Oven Door End Cap
1331GEN WB01K0053
