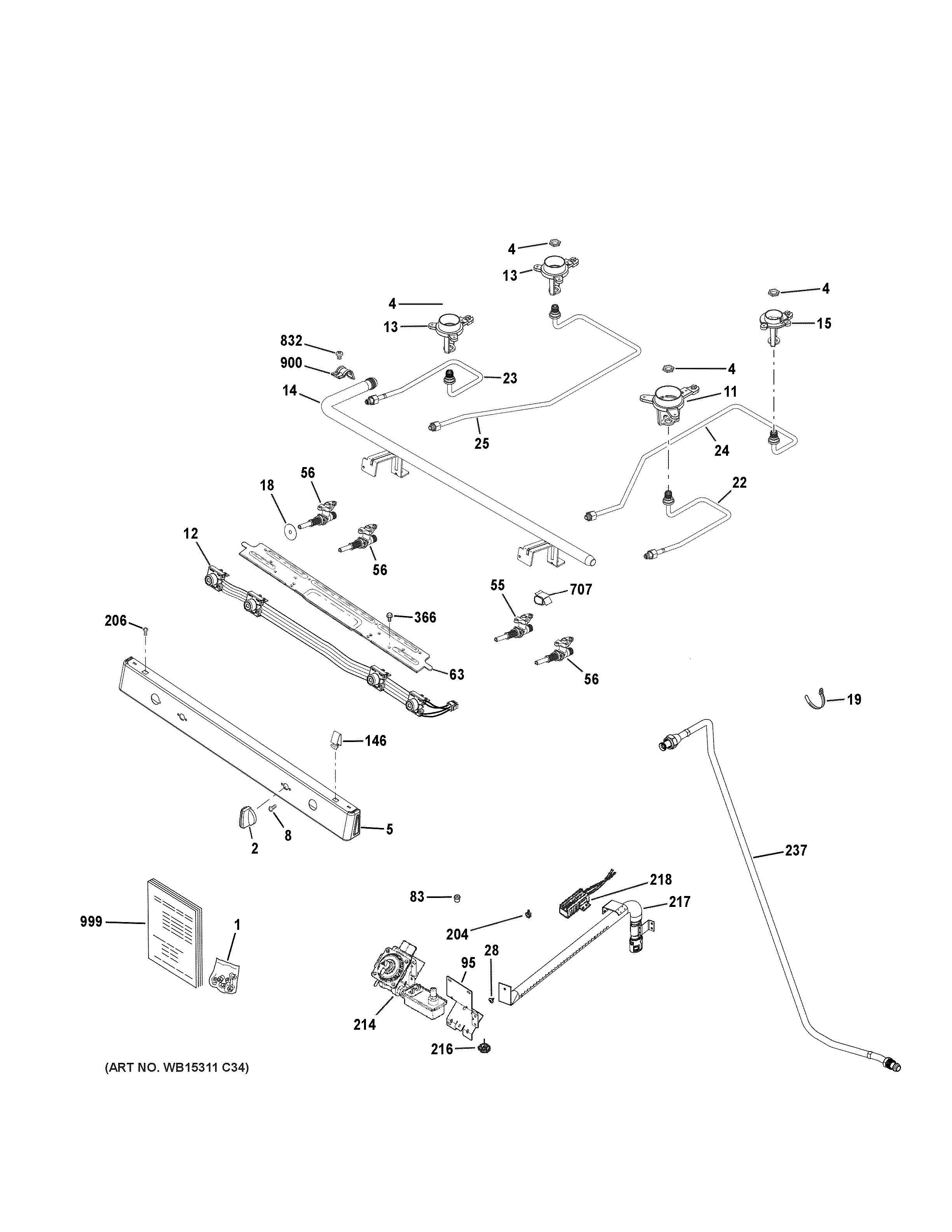

JGBS61DP4WW GAS & BURNER PARTS

JGBS61DP4WW GAS & BURNER PARTS

Written by

in

JGBS61DP4WW GAS & BURNER PARTS

Products

PositionProduct
1LP CONVERSION KIT
2KNOB VALVE
4WB01K10037 GE Oven Economic Nut
5WB36X31442 GE Oven White Manifold Panel
8WB01K10002 GE Oven Screw 8-32
11WB02X24726 GE Range Injector Large
12WB18X47867 GE Burner Box Harness
13WB02X24727 GE Oven Right Front Burner Jet with Electrode
14WB28K10457 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
18WB2K24 GE Oven Valve Cover
19BLACK CABLE TIE 5 1/2 LO
22FRONT ORIFICE HOLDER
23WB28X26306 GE Oven Left Front Orifice Holder
24WB28X26309 GE Oven Surface Burner Orifice Holder
25WB28X26308 GE Oven L Rear Orifice Holder
28WB1X1293 GE Oven Screw
55VALVE BURNER 140 DEGREE
56WB21X46427 GE Burner Valve
63WB34X20680 GE Support Manifold
83WB28X21079 GE Oven Spud Orifice
95WB02X22890 GE Oven Regulator Bracket
146GEN WB02K0052
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
214WB21X38548 VALVE CONTROL ASM
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY ASSEMBLY
366WB1X536 GE Oven Screw
707WB02K10267 GE Wire Clip
832WB01K10097 GE Range Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
