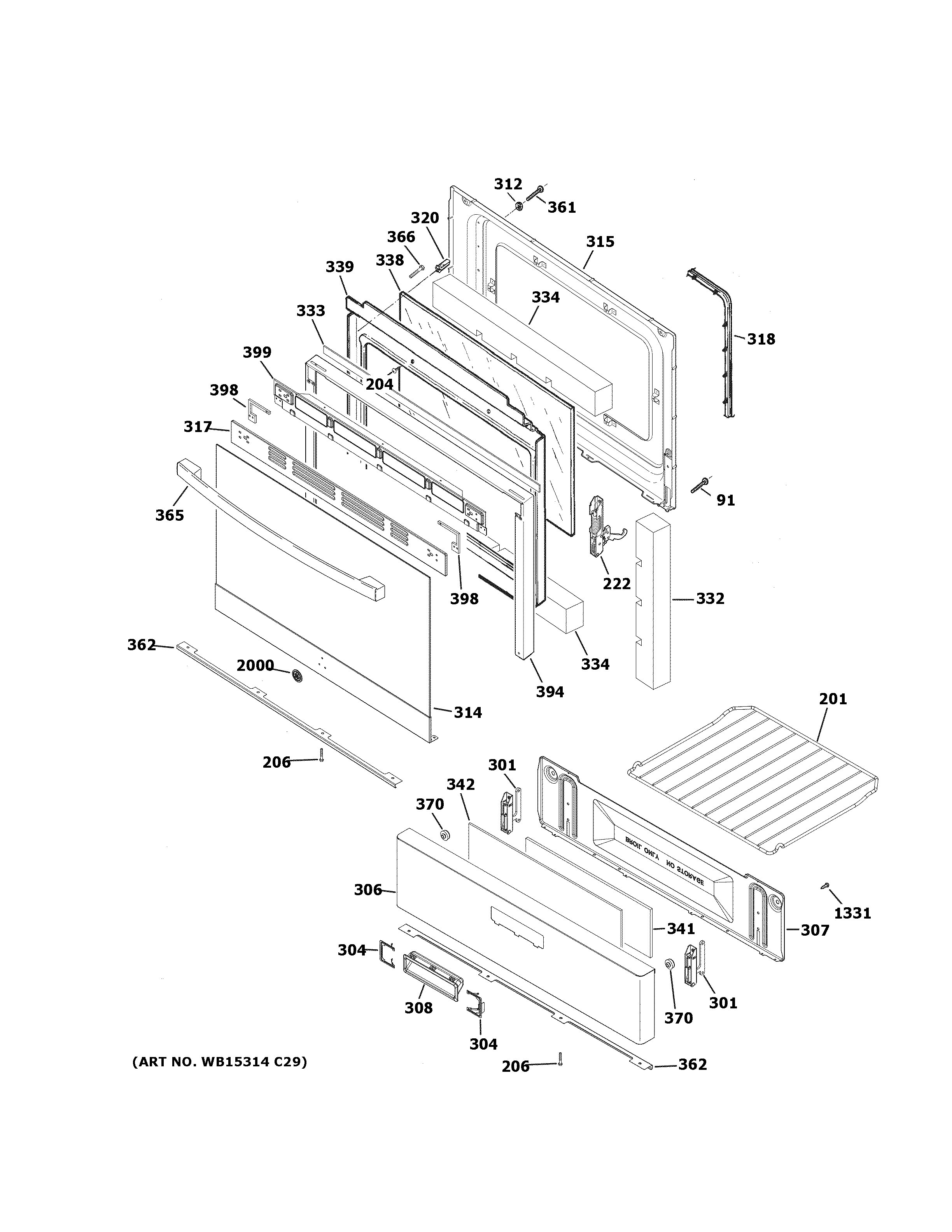

JGBS61RP4SS DOOR & DRAWER PARTS

JGBS61RP4SS DOOR & DRAWER PARTS

Written by

in

JGBS61RP4SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
201WB48X26677 GE Oven Rack
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21809 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X27780 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26672 GE Oven Broil Handle
312WB02X32440 GE Washer Contoured
314WB56X26696 GE Oven Glass Door Assembly
315WB56X20206 GE Range Door Panel
317WB07X26937 GE Oven Vent Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10156 GE Oven Spacer
332WB35K10146 GE Door Side Insulation
333WB35X21579 GE Front Door Insulation
334WB35K10147 GE Oven Bottom Insulation Door
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
361WB01X37565 GE Screw 10-32
362WB07X20288 GE Oven Barrier Door
365WB15X35073 GE Stainless Steel Handle
366WB1X536 GE Oven Screw
370WB02X28737 GE Oven Front Frame Bumper
394WB07X20354 GE Oven Door Trim
398WB35X28971 GE Washer Side Door Insulation
399WB56X20809 GE Oven Backer Panel
1331GEN WB01K0053
2000WB02X29479 GE Oven Badge Assembly
