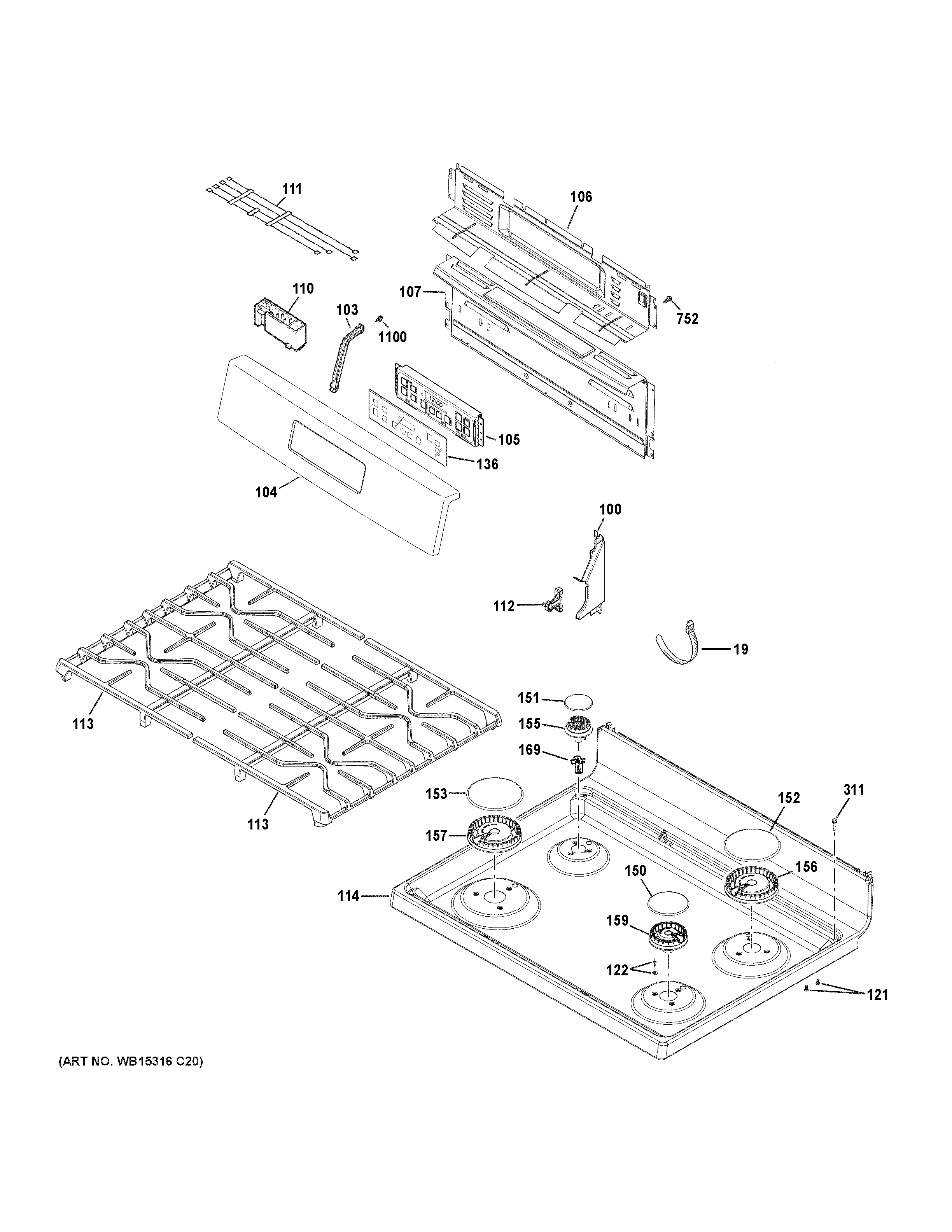

JGBS62DEK2BB CONTROL PANEL & COOKTOP

Products

Position	Product
19	BLACK CABLE TIE 5 1/2 LO
100	WB07X24733 GE Range Right End Support
100	WB07X24732 GE Range Left End Support Black
103	WB02X24845 GE Range Control Bracket
104	WB36X25198 GE Range Backguard
105	CONTROL OVEN TO9 (GAS)
106	WB34X24851 GE Upper Back Oven Cover
107	WB34X24746 GE Oven Back Cover Lower
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
112	WB14K10003 GE Range Top Hinge
113	WB31X26620 GE Oven Grate Assembly
114	WB62X26660 GE Bracket and Rantop Assembly
121	WB1K84 GE Oven Screw and
122	WB01X24735 GE Oven CKT Screw
136	WB07X26702 GE Oven Overlay T09
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	WB29K10024 GE Burner Cap Oven
153	CAP BURNER ASM (15K)
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	BURNER LARGE V2
157	WB16X24722 GE Oven Gas Range XL Surface Burner
159	WB16X24724 GE Oven Medium Burner
169	WB02X24976 GE Oven Igniter Clip V2
311	BUMPER
752	WZ4X345D GE Screw Package 12 C92
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
