JGBS66DEK2BB GAS & BURNER PARTS

JGBS66DEK2BB GAS & BURNER PARTS

Written by

in

JGBS66DEK2BB GAS & BURNER PARTS

Products

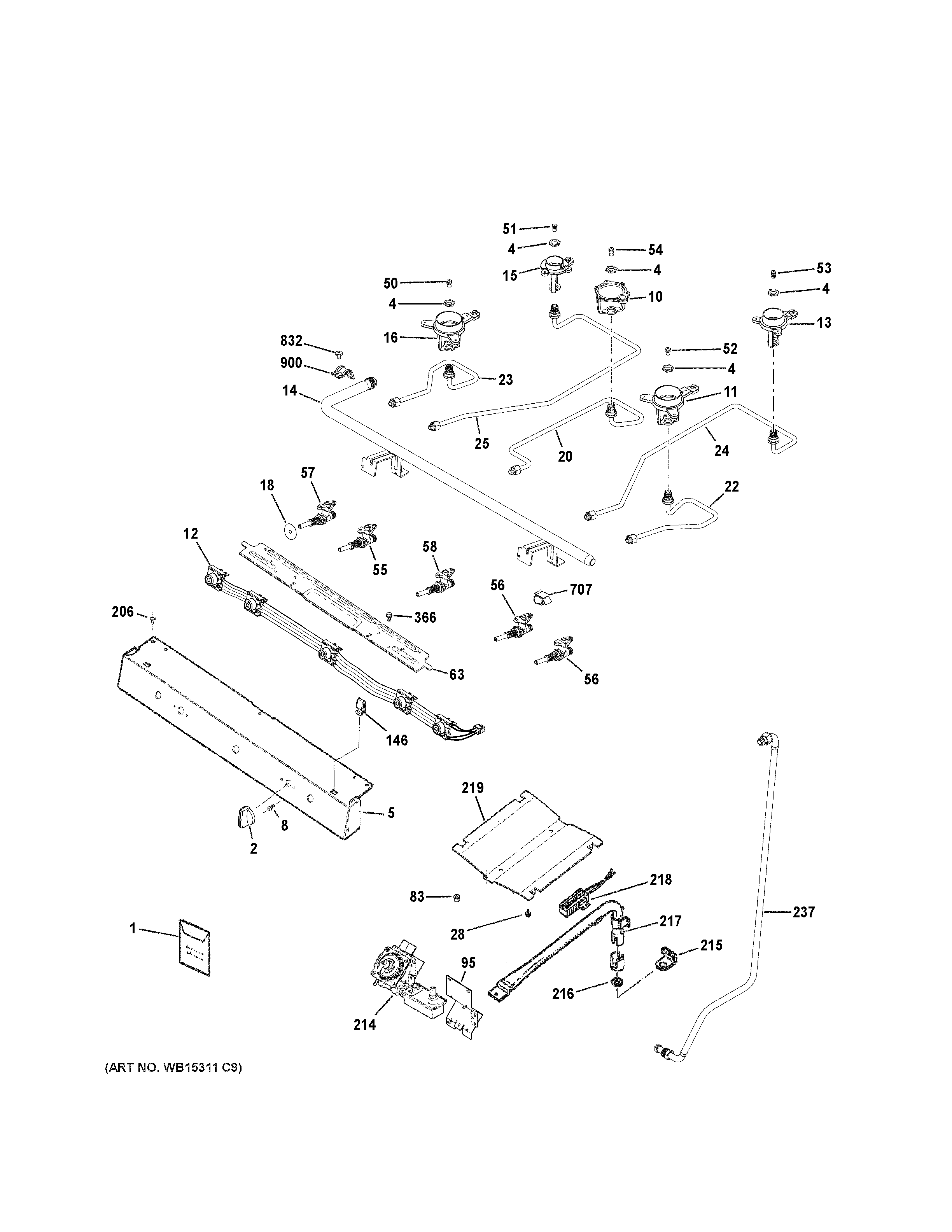

PositionProduct
1PM GAS QUICK GUIDE
1PM MANUAL MINI & WD ASM
1PM INSTALL INSTRUCTIONS
1WB49X21392 GE Oven Hinge Service Kit
1KIT LP CONVERSION ASM
1PM INSTALL INSTRUCTIONS
2WB03X24759 GE Assembly Oven Knob
4WB01K10037 GE Oven Economic Nut
5WB36X24739 GE Oven Manifold Panel
8WB01K10002 GE Oven Screw 8-32
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X31213 GE Oven Switches Harness
13WB02X24726 GE Range Injector Large
14WB28X24765 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
16WB02X24725 GE Oven Inlet XLV2
18WB2K24 GE Oven Valve Cover
20WB28X24762 GE Oven Surface Burner Orifice Holder
22WB28X24766 GE Oven Office Holder
23WB28X26621 GE Oven Surface Burner Orifice Holder
24WB28X24764 GE Oven Surface Burner Orifice Holder
25WB28X24763 GE Oven Right Rear Orifice Holder
28WB1X1293 GE Oven Screw
50WB28X26625 GE Oven Orifice
51WB28K10834 GE Oven Orifice Assembly
52WB28K10023 GE Oven Orifice
53WB28K10032 GE Oven LP Orifice
54WB28K10215 GE Oven Orifice
55WB21X20261 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20262 GE Oven Burner Valve 270
58WB21X20394 GE Oven Burner Valve 270
63WB34X20680 GE Support Manifold
83WB28X21079 GE Oven Spud Orifice
95WB02X22890 GE Oven Regulator Bracket
146WB02X26569 GE Range Top Clip
206WB01K10091 GE Oven Screw
214WB21X38549 GE Valve Control Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
366WB1X536 GE Oven Screw
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
