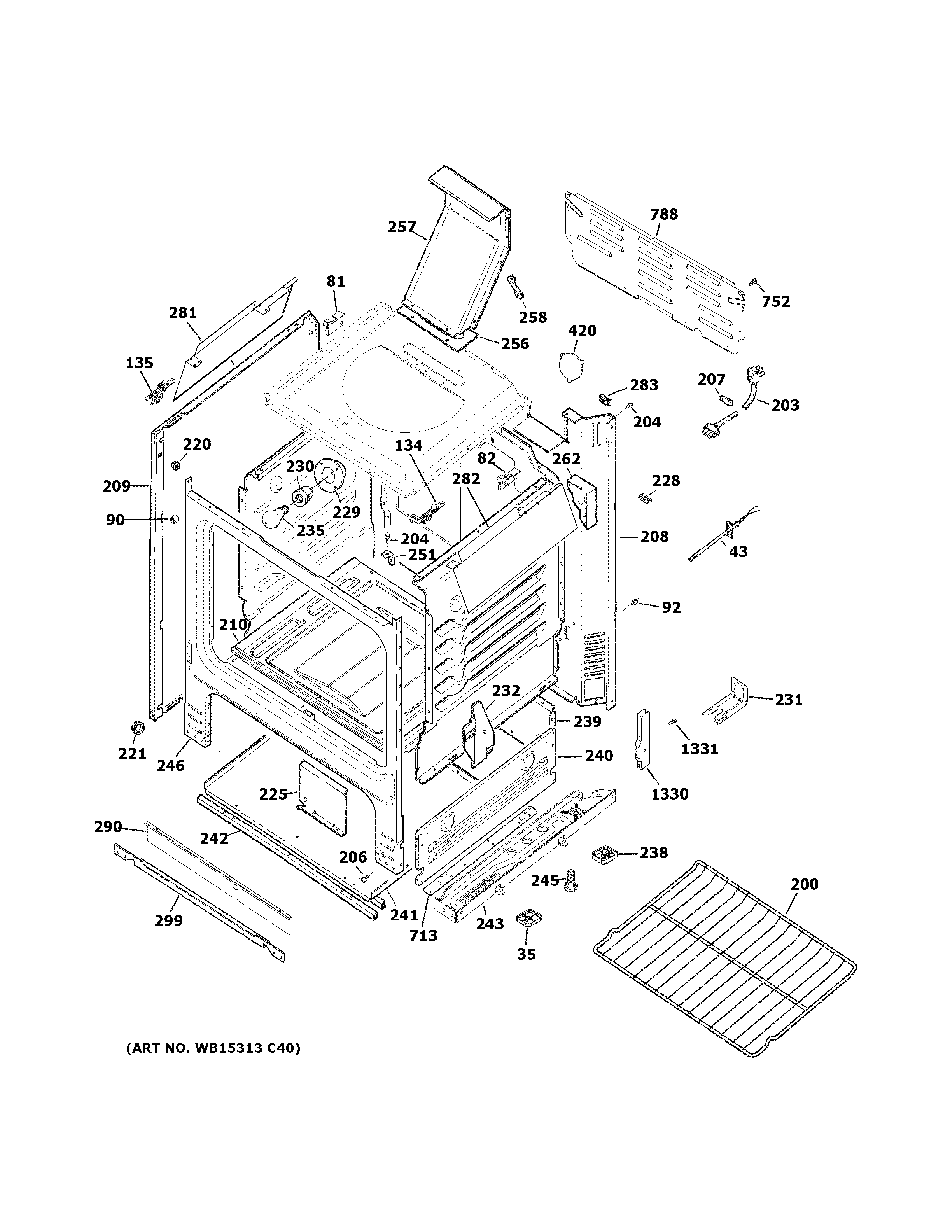

JGBS66EEK4ES BODY PARTS

JGBS66EEK4ES BODY PARTS

Written by

in

JGBS66EEK4ES BODY PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
43TEMPERATURE SENSOR
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
134WB02X24940 GE Range Side Bracket Manifold
135WB02X24939 GE Range Side Manifold Bracket
200OVEN RACK
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63X20207 GE Back Panel
209WB56X29670 GE Oven Side Panel
210WB35X37970 GE Bottom Oven and Deflector Assembly
220GEN WB02K0008
221WB02K10294 GE Oven Grommet
225GEN WB34K0002
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0004
232GEN WB34K0003
235RANGE ONLY 40W 120V APPL BULB
238WB16X20449 GE Oven Base Spacer
239PANEL REAR BROIL
240WB63X26890 GE Oven Broiler Panel
241WB63K10029 GE Range Bottom
242WB63X26259 GE Bottom Brace
243WB63X20215 GE Oven Support Base
243WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246FRAME WELD ASM
251WB2K3 GE Angle Support
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
262WB35K16 GE Oven Back Insulation
281DIVERTER SIDE
282WB56X26617 GE Oven Diverter Assembly
283WB02X21679 GE Oven Wire Clip
290GEN WB34K0012
299WB1K43 GE Oven Support Bracket
420GEN WB34K0016
713WB39K33 GE Support
752WZ4X345D GE Screw Package 12 C92
788WB34X21575 GE Oven Back Cover
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
