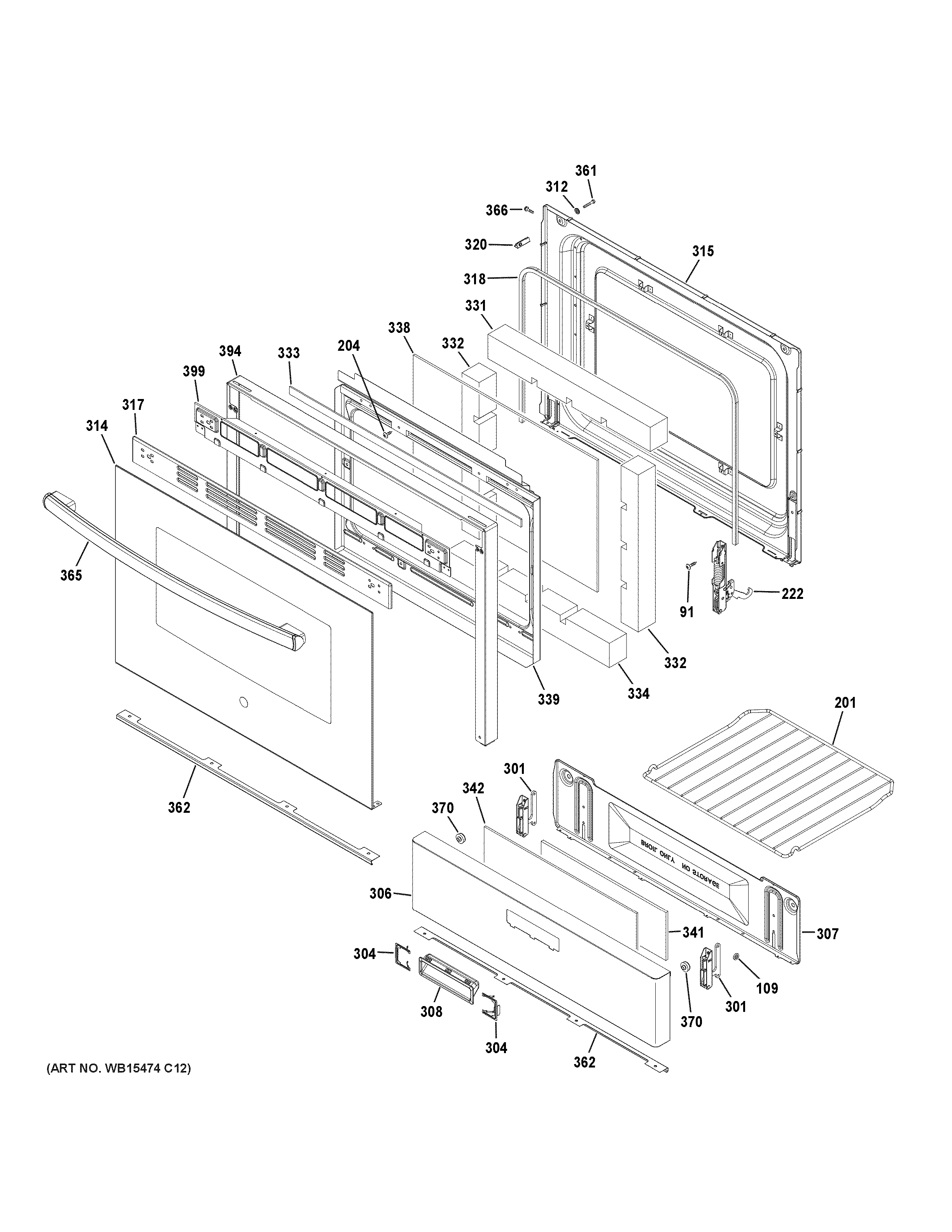

JGBS66FEK1DS DOOR & DRAWER PARTS

JGBS66FEK1DS DOOR & DRAWER PARTS

Written by

in

JGBS66FEK1DS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
109GEN WB01X5743
201WB48X26677 GE Oven Rack
204WB1K5062 GE Oven Screw
222WB10X21809 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X30814 GE Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308HANDLE BROIL
312WB1X119D GE Oven Range Washer
314WB56X30818 GE Oven Glass Door Assembly
315WB56X20206 GE Range Door Panel
317VENT TRIM
318WB35X29720 GE Oven Door Gasket
320WB02K10156 GE Oven Spacer
331WB35K10148 GE Oven Door Top Insulation
332WB35K10146 GE Door Side Insulation
333WB35X21579 GE Front Door Insulation
334WB35K10147 GE Oven Bottom Insulation Door
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
341WB35X26709 GE Range Side Insulation
342WB35X26892 GE Oven Side Panel Foil
361SCREW
362WB07X20288 GE Oven Barrier Door
365WB15X31194 GE Oven Handle and Endcap Assembly
366WB02X32441 GE Screw 10-16 PNT 2.5"
370WB02X28737 GE Oven Front Frame Bumper
394WB07X29147 GE Oven Door Trim DD
399WB56X20809 GE Oven Backer Panel
