JGBS80BEL1BB GAS & BURNER PARTS

JGBS80BEL1BB GAS & BURNER PARTS

Written by

in

JGBS80BEL1BB GAS & BURNER PARTS

Products

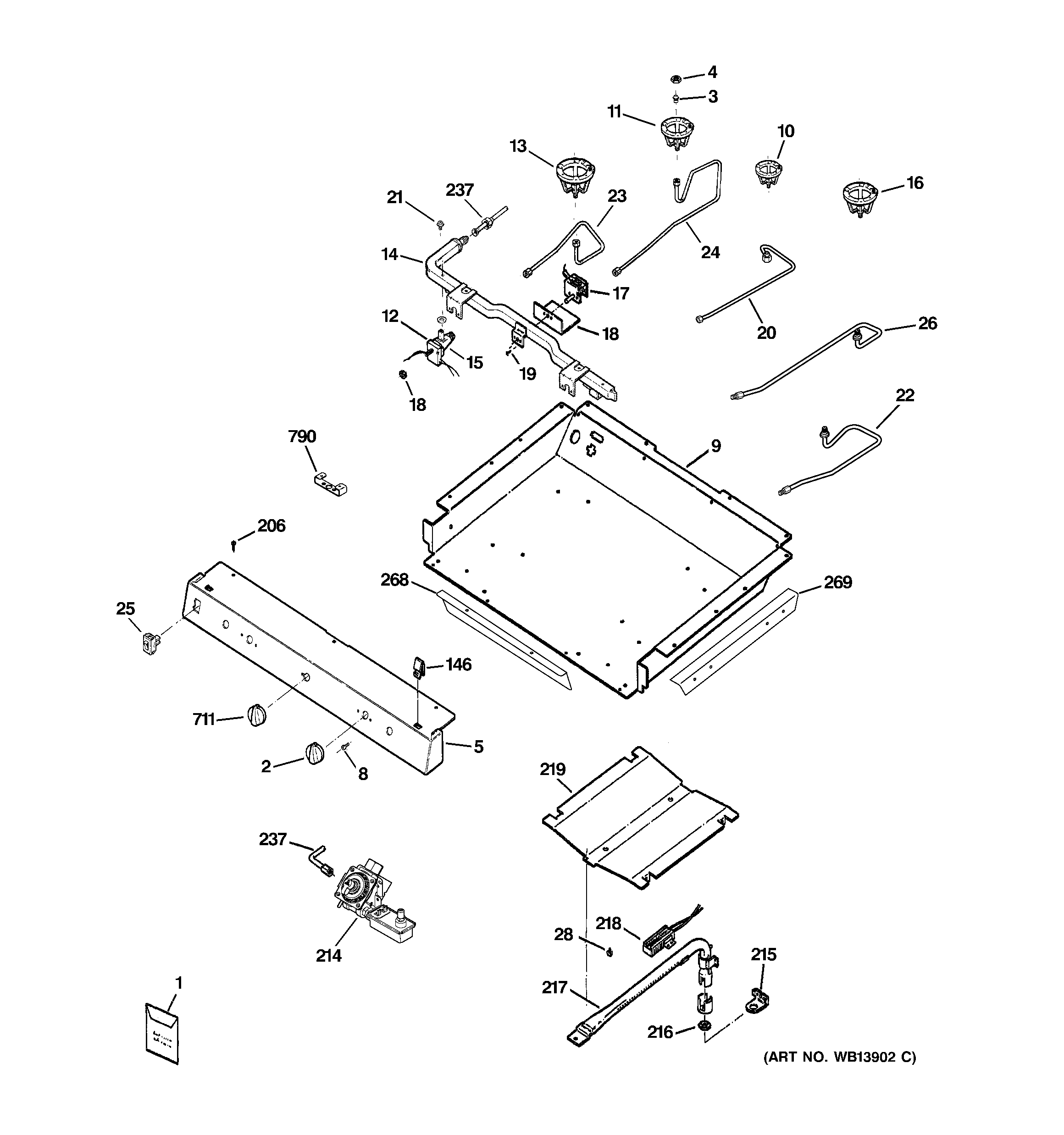

PositionProduct
1GEN WB28K10378
1GEN 49-85106
1GEN 31-21254
2WB03K10141 GE Oven Mini Valve Knob
3GEN WB28K10287
3WB28K10214 GE Oven Orifice
3WB28K10215 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10288 GE Oven Orifice Spud
3GEN WB28K10216
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10619
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10384
15WB21K10117 GE Oven Burner Valve
15WB21K10119 GE Oven Burner Valve 270
15WB21K10099 GE Oven Burner Valve
15WB21K10097 GE Oven Burner Valve
15WB21K10096 GE Oven Burner Valve 270
16WB02K10082 GE Oven Bracket XL Cooktop
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20ORIFICE HOLDER ASM NG
21WB01K10066 GE Oven Screw 8 HD 10-32
21WB1K83 GE Oven Screw
22ORIFICE HOLDER RF NG
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
25GEN WB24K0003
26ORIFICE HOLDER RR NG
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WR01X10065 GE Screw
214GEN WB19K10024
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K10013 GE Oven Burner Igniter Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
268GEN WB35K10047
269GEN WB35K10048
711WB03K10206 GE Oven Knob Assembly Thermostat
790GEN WB02K10145
