JGBS80DEM1BB CONTROL PANEL & COOKTOP

JGBS80DEM1BB CONTROL PANEL & COOKTOP

Written by

in

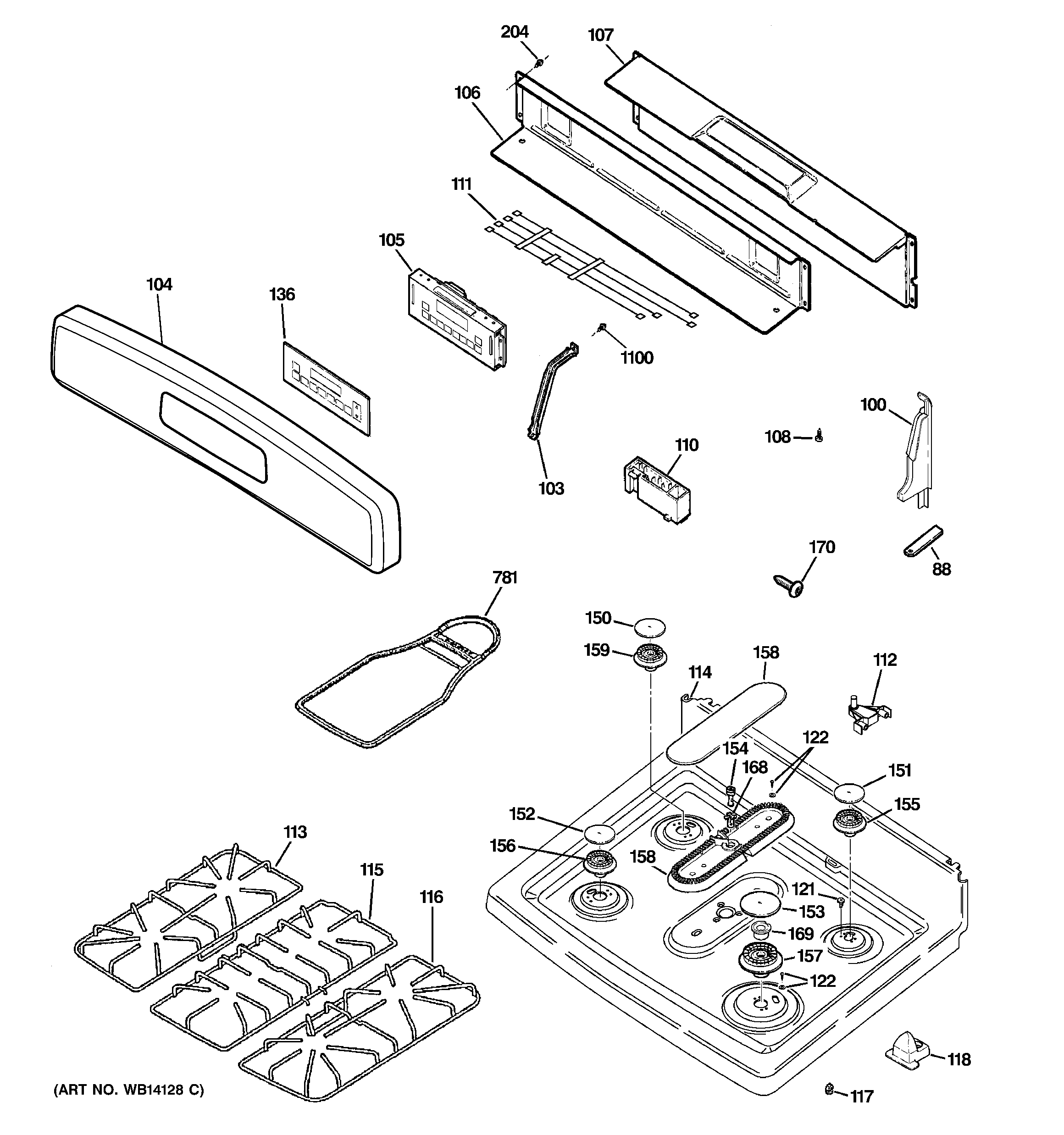

JGBS80DEM1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10099
88GEN WB02K0062
100GEN WB07K10247
100GEN WB07K10246
103GEN WB02K10155
104GEN WB36K10651
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10092
107GEN WB34K10091
108WB01K10030 GE Screw Assembly
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
110WB18K10042 GE Oven Harness Module
111GEN WB18K10041
112WB14K10003 GE Range Top Hinge
113GEN WB31K10177
114GEN WB62K10110
115GEN WB31K10178
116GEN WB31K10176
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136WB27K10255 GE Oven Overlay T09
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
152WB29K10006 GE Oven Burner Cap
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10059
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
