JGBS80SEM3SS GAS & BURNER PARTS

JGBS80SEM3SS GAS & BURNER PARTS

Written by

in

JGBS80SEM3SS GAS & BURNER PARTS

Products

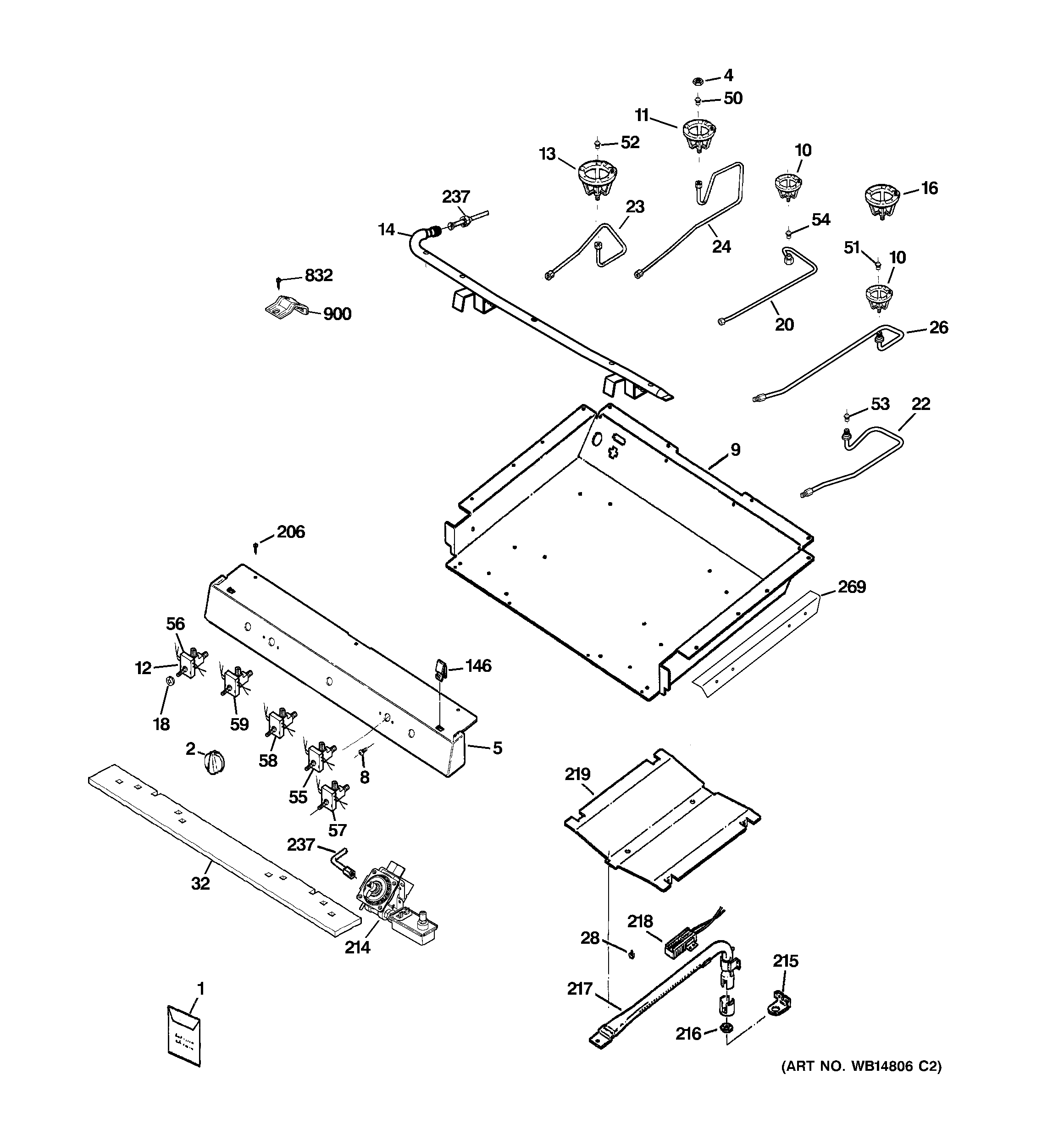

PositionProduct
1GEN WB01K10027
1GEN WB28K10561
1GEN 31-21396
1GEN 31-21326
1GEN 49-85162
2WB03K10216 GE Oven Manifold Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10772
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10583
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM NG
22ORIFICE HOLDER RF NG
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
26ORIFICE HOLDER RR NG
28WB1X1293 GE Oven Screw
32INSULATION BURNER BOX
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53GEN WB28K10216
54WB28K10288 GE Oven Orifice Spud
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
59GEN WB21K10112
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214GEN WB19K10047
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
