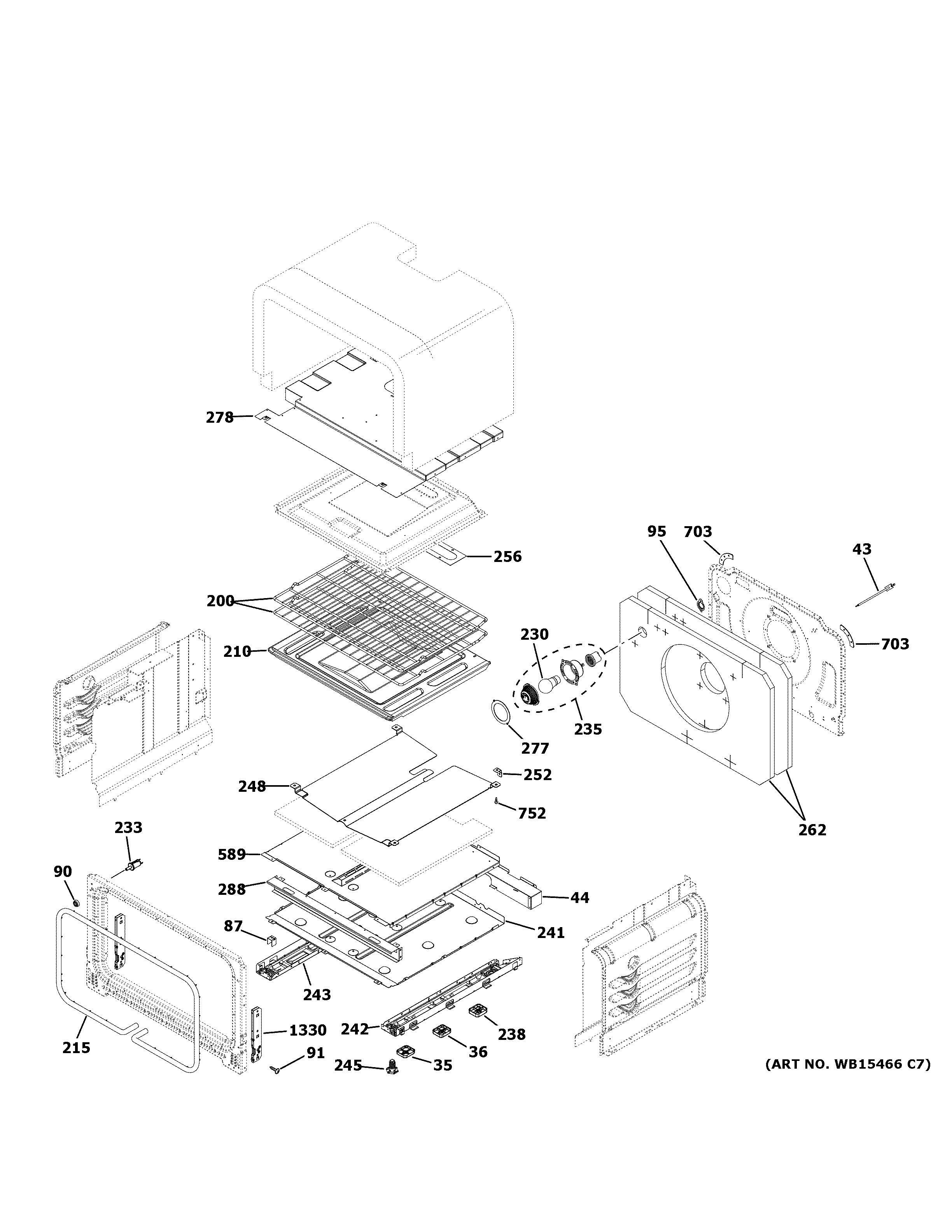

JGBS86SP1SS LOWER OVEN

JGBS86SP1SS LOWER OVEN

Written by

in

JGBS86SP1SS LOWER OVEN

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
36WB16X20450 GE Base Spacer
43WB24X25557 GE Oven Sensor Assembly
44WB34X20526 GE Oven Cover Shutter
87WB56X20457 GE Bottom Floor Barrier
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
95WB02K10337 GE Cover Cap
200OVEN RACK
210WB34X24912 GE Oven Bottom
215WB32X29538 GE Oven Gasket Assembly
230RANGE ONLY 40W 120V APPL BULB
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20449 GE Oven Base Spacer
241WB63X20441 GE Bottom
242WB63X25481 GE Oven Support Base Right
243WB63X25480 GE Oven Support Base Left
245WB02K10182 GE Oven Leveling Leg
248WB34X29028 GE Deflector
252WB2K3 GE Angle Support
256WB32K10051 GE Vent Gasket
262INSULATION ASSEMBLY
277WB32K10044 GE Oven Light Gasket
278WB53K10047 GE Oven Top Insulation Guard
288WB02X20414 GE Brace
589WB63X21725 GE Bottom Duct
703BRACKET OVEN
752WZ4X345D GE Screw Package 12 C92
1330WB10X28563 GE Oven Receiver Hinge
