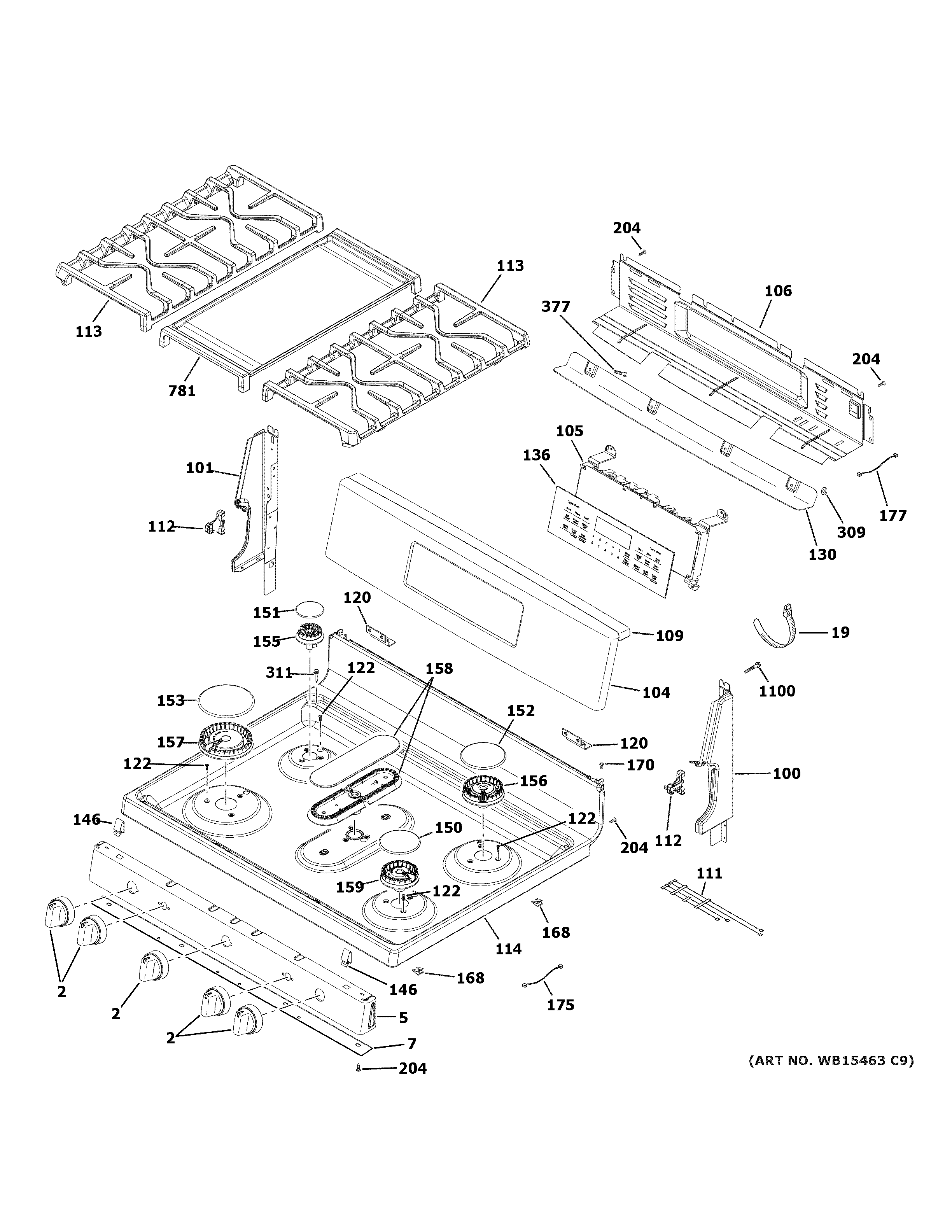

JGBS86SP2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
2KNOB
5WB36X32657 GE Stainless Steel Manifold Pan
7GASKET PANEL MANIFOLD
19BLACK CABLE TIE 5 1/2 LO
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
104WB07X24826 GE Range Backguard
105WB27X42477 GE Oven RC15 Control
106WB34X24915 GE Oven Back Cover Upper
109WB34X29145 GE Backguard Top Complement
111WB18X26985 GE Oven Electrode & Harness H.V
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24822 GE Range Top Bracket Assembly
120WB02X20735 GE Top Rear Support
122WB01X24735 GE Oven CKT Screw
130WB34X25717 GE Oven Backguard Eyebrow
136WB07X41926 GE RC15 Overlay
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156BURNER LARGE V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
168WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
175WB18X24748 GE Oven Ground Harness
177WB18X27594 GE Ground Harness
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
309WASHER
311BUMPER
377WB01T10115 GE Oven Screw 1/2" 8-18 AB HW
781GRIDDLE
1100WB01T10016 GE Oven Screw 8-18 AB Hex
