JGBS86SP2SS GAS & BURNER PARTS

JGBS86SP2SS GAS & BURNER PARTS

Written by

in

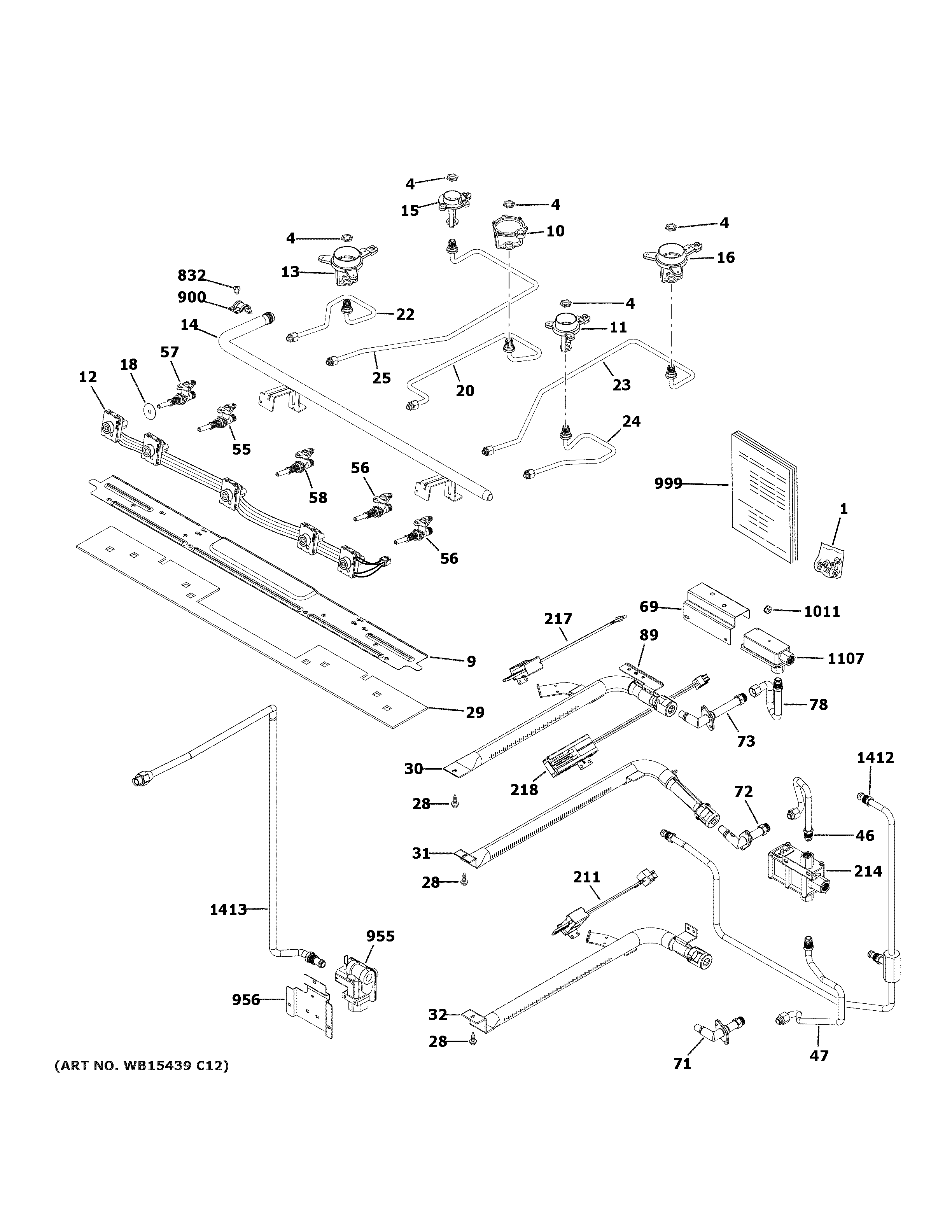

JGBS86SP2SS GAS & BURNER PARTS

Products

PositionProduct
1WB28X36926 GE LP Conversion Kit Assembly
4WB01K10037 GE Oven Economic Nut
9WB34X20680 GE Support Manifold
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X27596 GE Oven Switch Harness
13WB02X24725 GE Oven Inlet XLV2
14WB28X24765 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
16WB02X24726 GE Range Injector Large
18WB2K24 GE Oven Valve Cover
20WB28X24762 GE Oven Surface Burner Orifice Holder
22WB28X26621 GE Oven Surface Burner Orifice Holder
23WB28X24764 GE Oven Surface Burner Orifice Holder
24WB28X24766 GE Oven Office Holder
25WB28X24763 GE Oven Right Rear Orifice Holder
28WB1X1293 GE Oven Screw
29WB35X24985 GE Burner Box Insulation
30WB16X28249 GE Gas Range Bake Burner
31WB16X28251 GE Range Broil Burner
32WB16X28670 GE Gas Range Bake Burner
46WB28X28164 GE Tube Safety Valve
47WB28X28152 GE Oven Lower Bake Supply Tube
55WB21X20261 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20262 GE Oven Burner Valve 270
58WB21X20394 GE Oven Burner Valve 270
69WB02K10325 GE Valve Support Single
71WB28X20451 GE Oven 90-Degree Elbow Assembly
72WB28X28696 GE Elbow 90 Assembly
73WB28X28695 GE Oven 90-Degree Elbow Assembly
78WB28X28163 GE Upper Bake Supply Tube
89WB02K10326 GE L Support
211WB13X25633 GE Oven Igniter Glowbar
214SAFETY VALVE DUAL
217WB28X28781 GE Oven Igniter Glow Bar
218WB28X28780 GE Oven Glowbar Igniter
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
955WB19K10077 GE Oven Pressure Regulator
956SUPPORT REGULATOR
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
1011WB01T10086 GE Keystone Nut 6-32
1107WB21X28836 GE Safety Valve Assembly Single
1412WB28X28159 GE Oven Supply Tube
1413WB28X31693 GE Burner Tube Supply Box
