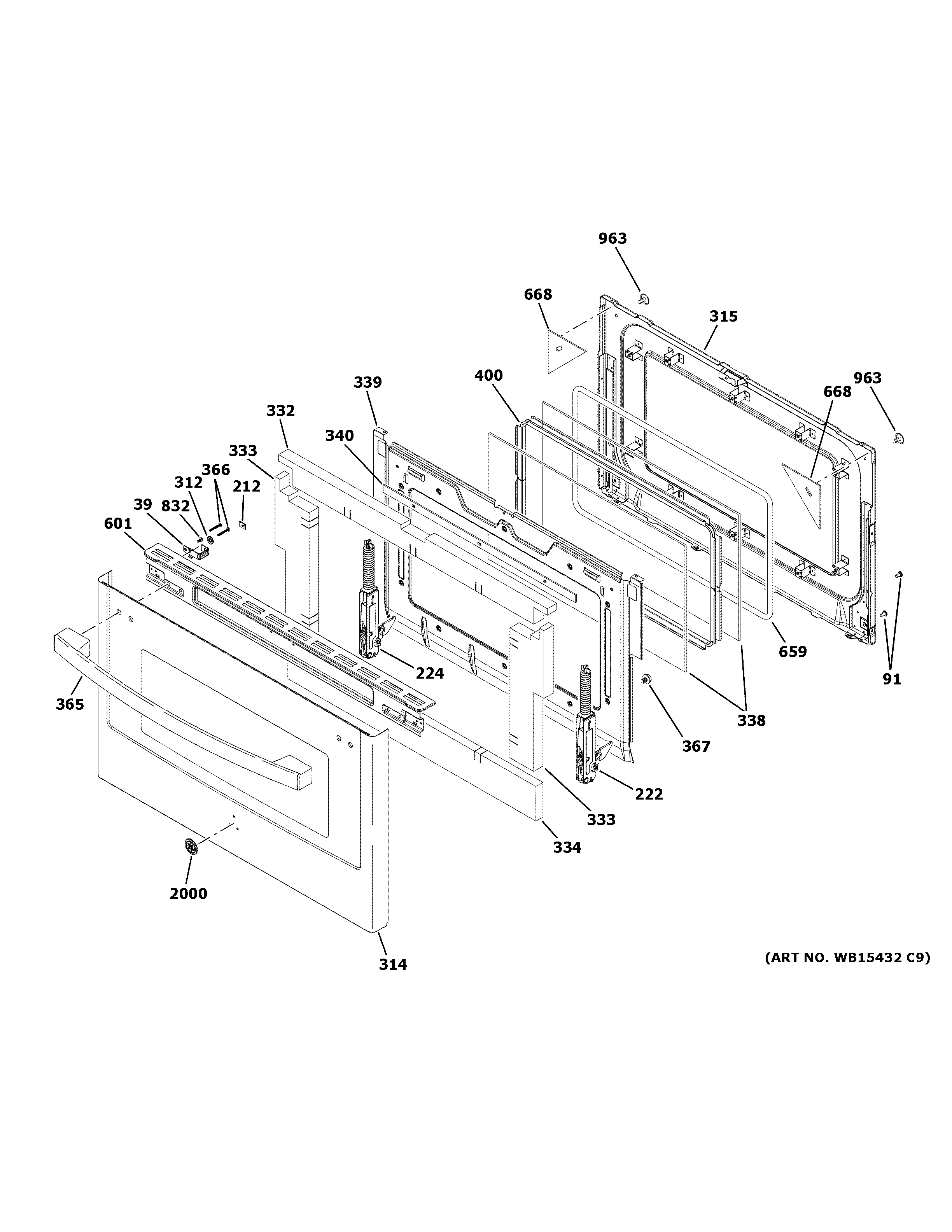

JGBS86SP2SS LOWER DOOR

JGBS86SP2SS LOWER DOOR

Written by

in

JGBS86SP2SS LOWER DOOR

Products

PositionProduct
39BRACKET HANDLE
91WB01T10008 GE Oven Screw 10-32
212WB1K2 GE Oven Speednut
222WB10X26766 GE Oven Door Hinge
224WB10X25637 GE Oven Right Door Hinge
312WB02X32440 GE Washer Contoured
314WB56X24968 GE Oven Door Glass Panel Assembly
315WB56X24931 GE Oven Liner Door Weld Assembly
332WB34X21727 GE Oven Door Insulation
333WB34X21726 GE Oven Door Insulation
334WB34X21728 GE Oven Door Insulation
338WB57K10155 GE Oven Crystal Window
339WB56K10079 GE Oven Insulation Guard
340INSULATION FRONT DOOR
365WB15X35050 GE Stainless Steel Handle
366WB01X32512 GE Screw 10-24
367SCR 8-18 B HXW 1/4S UH
400WB34X28741 GE Oven Frame Window Assembly
601WB56X29146 GE Oven Top Cover Assembly
659WB35X21685 GE Oven Cord Fiberglass
668WB35X21691 GE Oven Door Insulation
832WB01K10080 GE Oven Thermostat Screw
963WB01K10116 GE Oven Screw 10-16
2000WB02X29479 GE Oven Badge Assembly
